Pilotix 3115 900KV brushless motor for 3–6S LiPo RC and drone builds, rated at 4080g maximum pull and 1592W maximum power. Supplied with plastic pipes and plug.

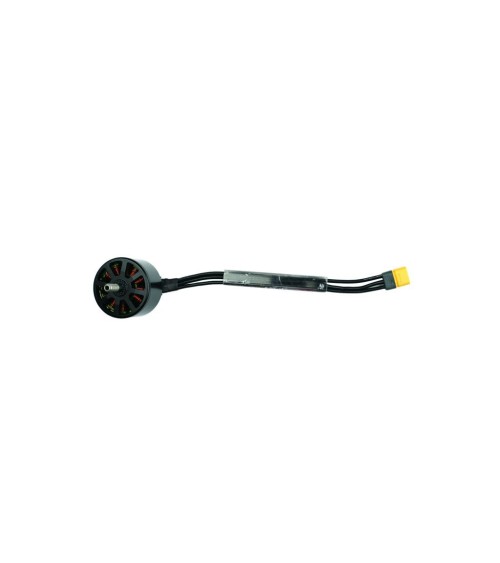

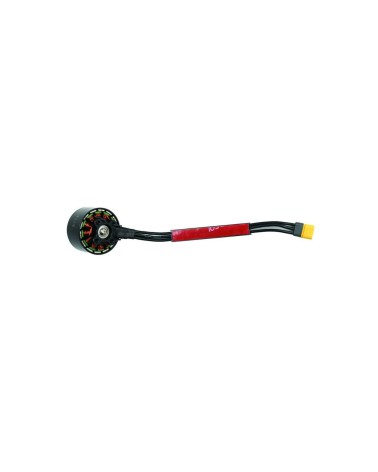

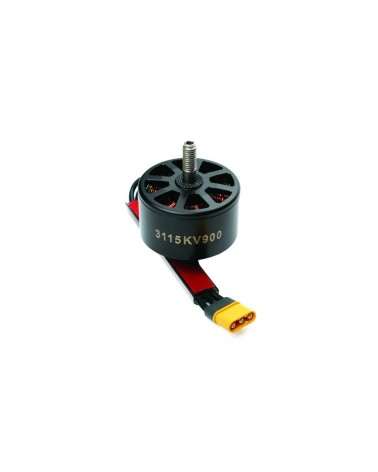

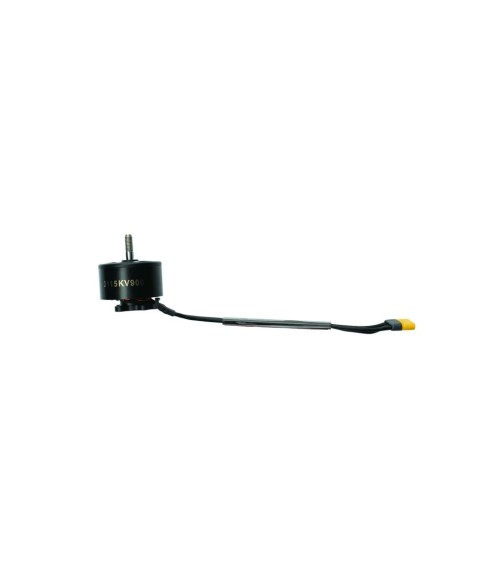

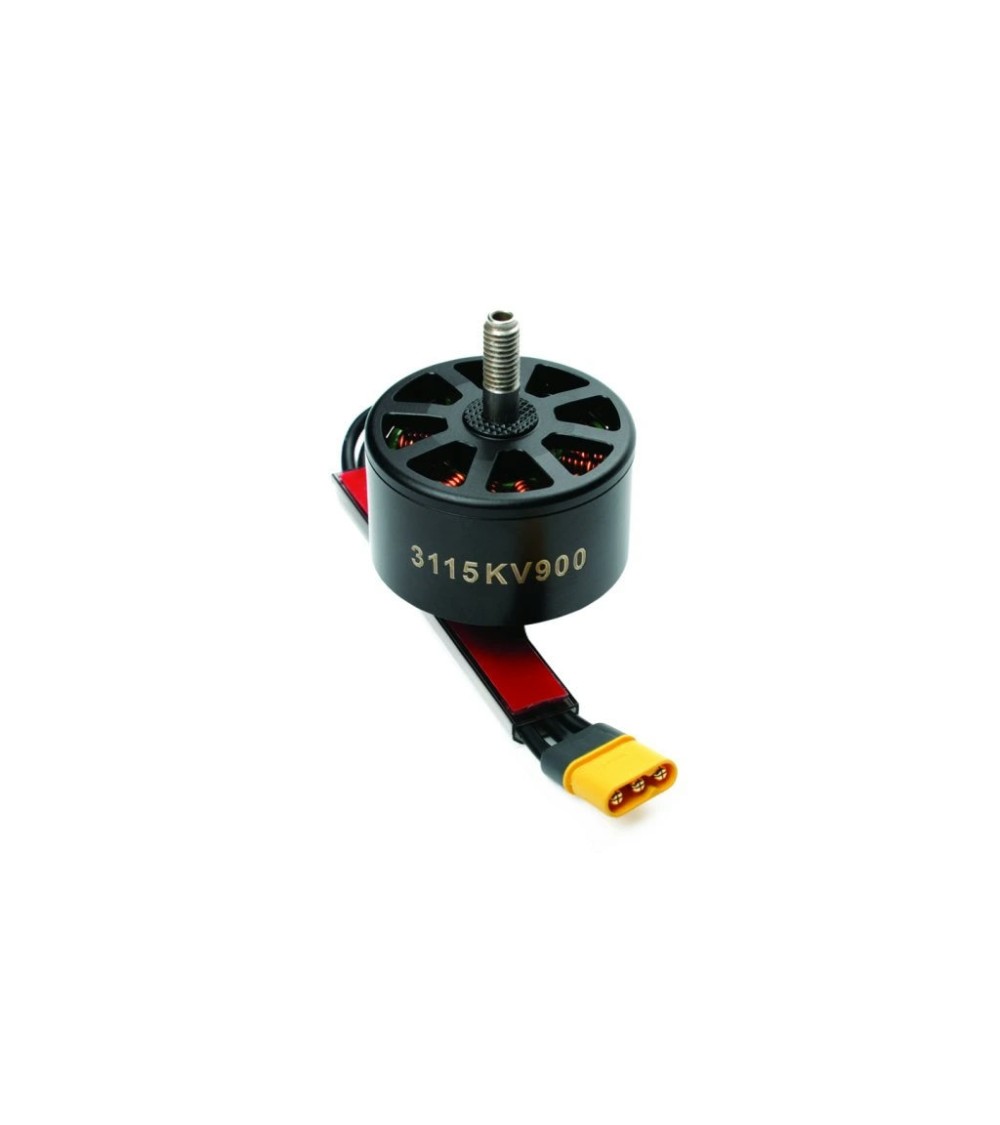

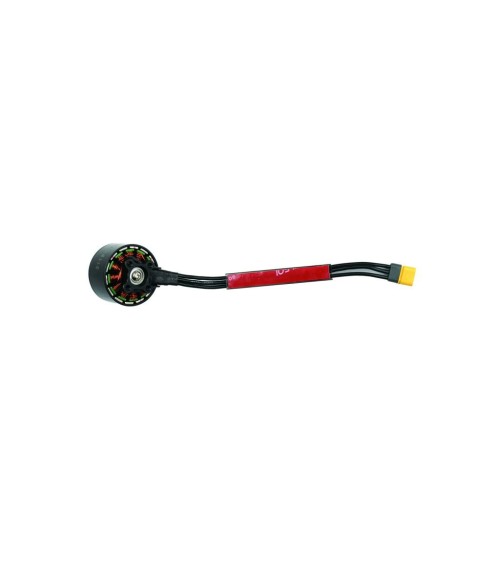

Motor Pilotix 3115 900KV with plastic pipes and plug
€32.50
On order: Delivery 4-5 working days.
Pilotix 3115 900KV brushless motor for 3–6S LiPo RC and drone builds, rated at 4080g maximum pull and 1592W maximum power. Supplied with plastic pipes and plug.
A high-output brushless motor built for 3–6S LiPo drone and RC platforms requiring confirmed power-system references.
The Pilotix 3115 900KV is a brushless motor designed for compatible RC models and drone builds. Its 12N/14P configuration, 1592W maximum power output, and 4080g maximum pull make it a reliable reference point for selecting ESCs, batteries, and propellers. Supplied with plastic pipes and plug for direct integration.
Features
- 900KV rating with 3–6S LiPo compatibility
- Maximum pull of 4080g and maximum power of 1592W
- Peak current of 63.7A sustained for 60 seconds
- 12N/14P motor configuration with 0.046Ω internal resistance
- 5mm shaft with 4-M3×7 propeller mounting arrangement
- Supplied with plastic pipes and plug for ready integration
Technical Specifications
- Motor dimensions: ф37.1 × 32mm
- Weight (including cable): 113.5g
- Power supply: 3–6S LiPo
- Peak current: 63.7A (60s)
- Idle current: 1.28A / 12V
- Internal resistance: 0.046Ω
- Shaft diameter: 5mm
- Propeller mounting: 4-M3×7
- Motor cable: 16#300(+5,-0)
