The Pilotix Partizan 3214 820KV is a brushless motor for 6S drone power systems, rated at 820KV with a peak instantaneous power of 1713.41W.
Motor Partizan 3214 820KV
€40.16
On order: Delivery 4-5 working days.
The Pilotix Partizan 3214 820KV is a brushless motor for 6S drone power systems, rated at 820KV with a peak instantaneous power of 1713.41W.
A high-output brushless motor built for 6S drone power systems demanding reliable performance under load.

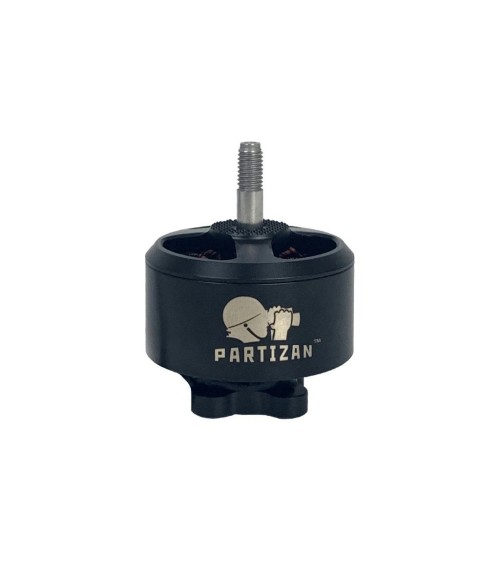

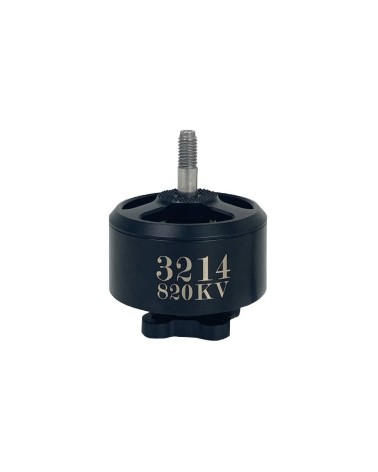

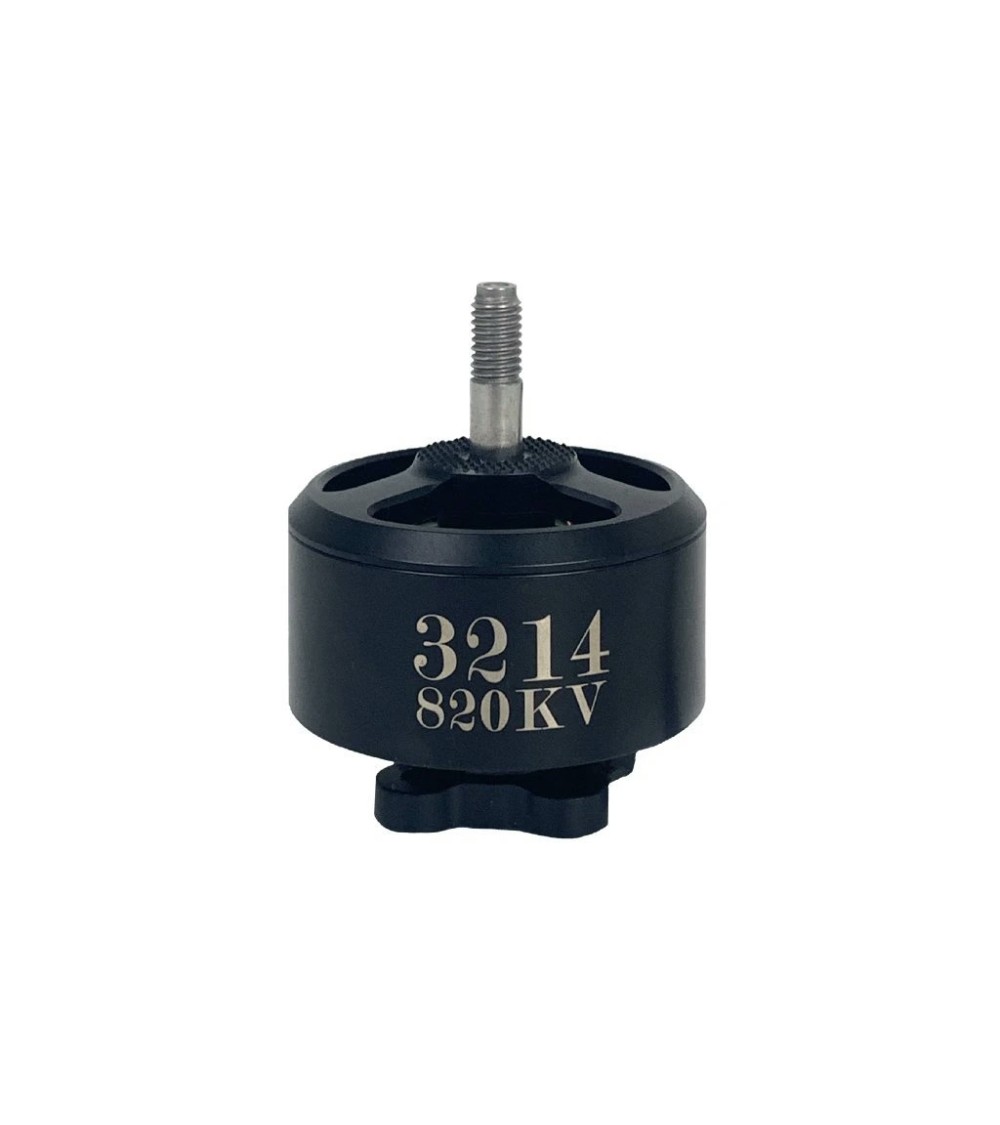

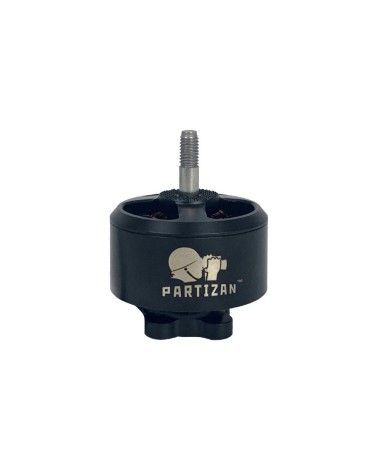

The Pilotix Partizan 3214 820KV is a brushless motor designed for 6S (24V) drone builds. With a peak instantaneous power of 1713.41W and a peak current of 71.39A, it is suited for demanding multirotor applications. The package includes one motor with a pre-attached 500mm silicone cable ready for integration.
Features
- 820KV rating for 6S (24V) power systems
- N52SH arc magnets with 12S/14P stator configuration

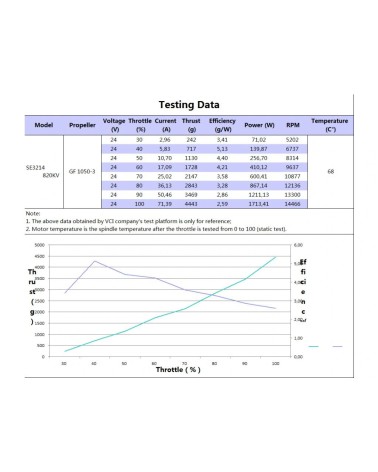

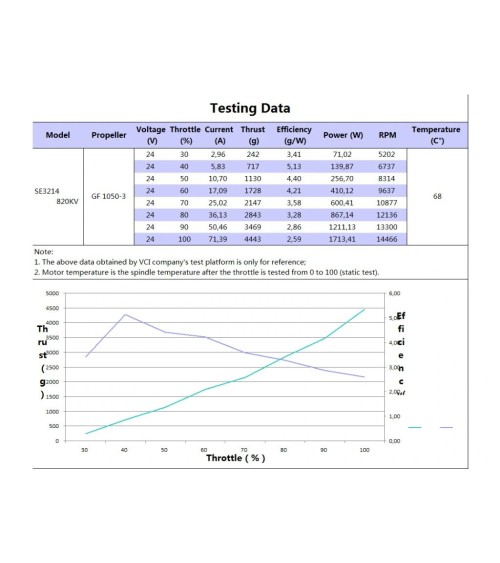

- Peak instantaneous power: 1713.41W; peak current: 71.39A
- Low internal resistance: 40mΩ for efficient power delivery
- Pre-attached 16AWG silicone cable, 500mm length
- 5mm shaft diameter; compact form factor at Φ39 × 49.8mm
Technical Specifications
- Rated voltage: 6S (24V)
- Maximum instantaneous power: 1713.41W
- Peak current: 71.39A
- No-load current: 1.4A at 10V
- Internal resistance: 40mΩ
- Magnets: N52SH arc magnets, 12S/14P configuration
- Stator size: Φ32 × 14mm

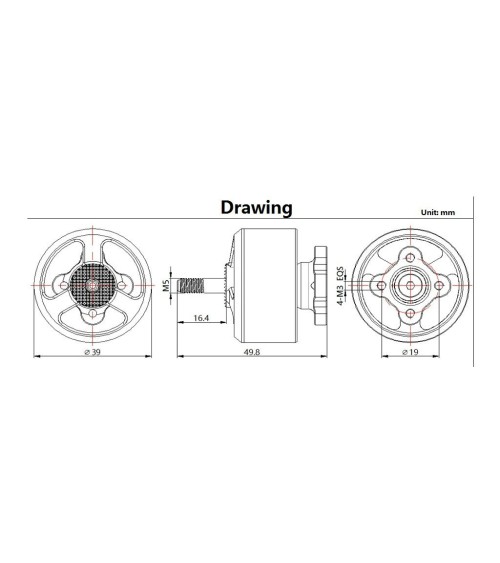

- Motor dimensions: Φ39 × 49.8mm
- Shaft: 5mm diameter, 16.4mm length
- Cable: 16AWG silicone, 500mm
- Weight (including cable): 148.7g
