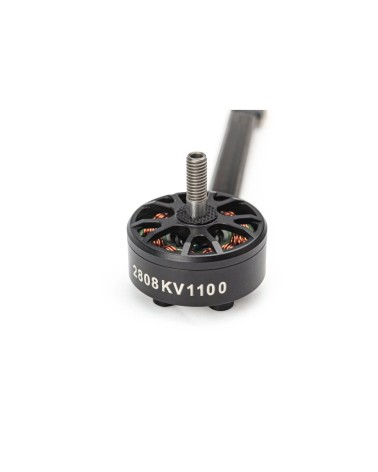

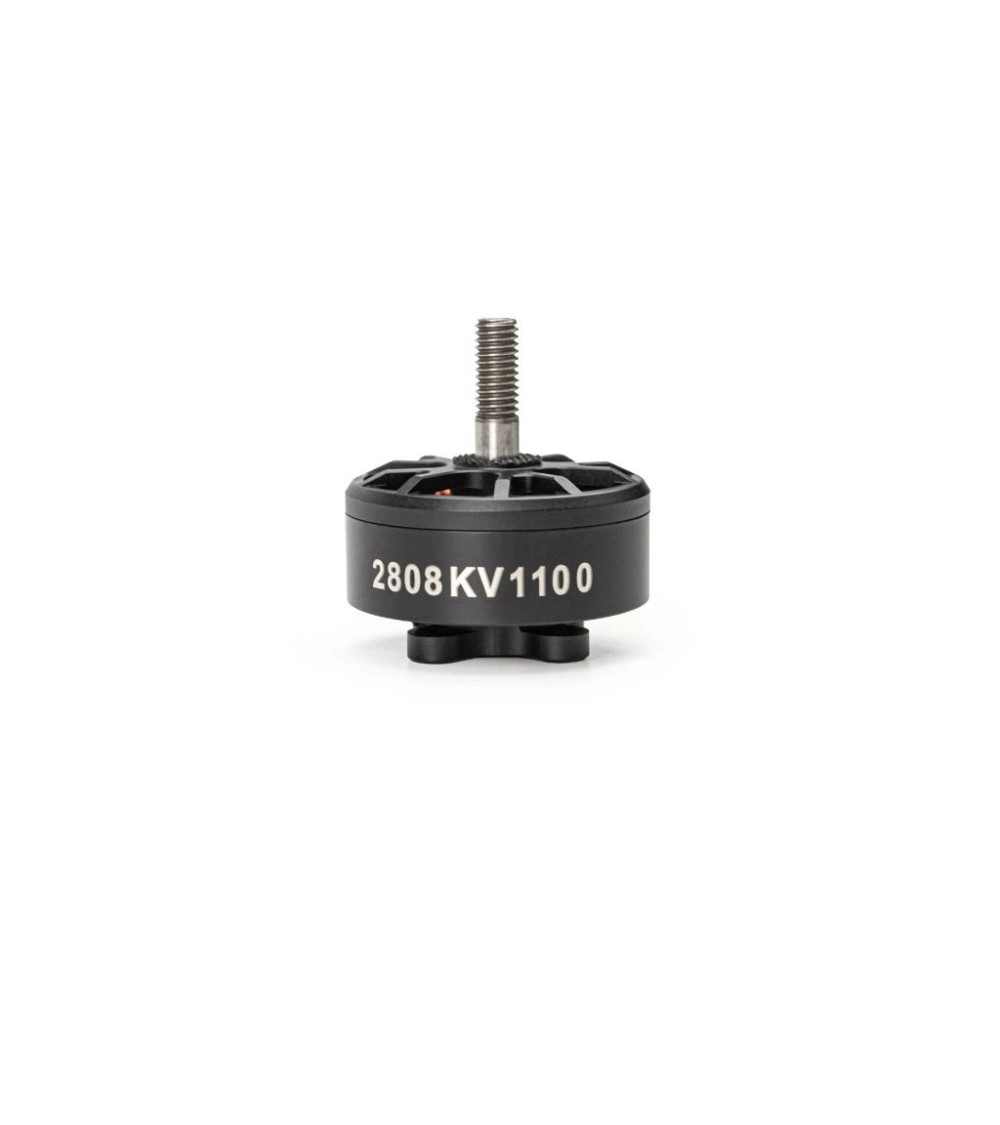

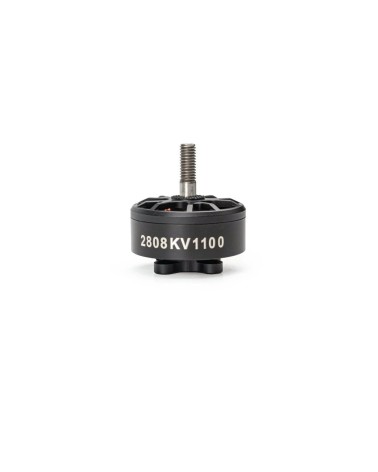

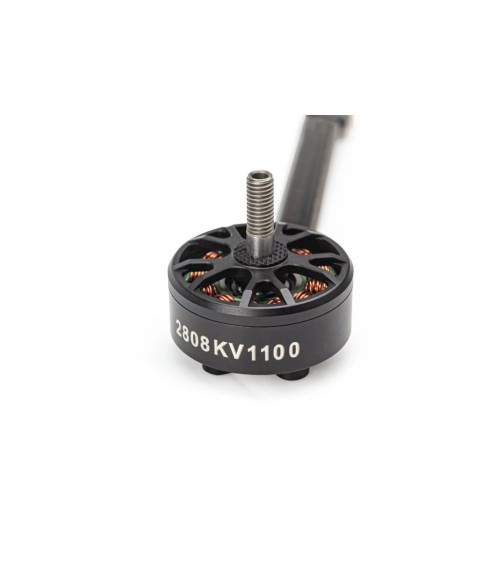

Brushless Motor Pilotix 2808 1100KV
€23.79
On order: Delivery 4-5 working days.
The Pilotix 2808 1100KV is a compact brushless motor rated for 6S LiPo systems, delivering ≥2300g maximum thrust in a 60g, 33.8×21mm package.
A compact 6S brushless motor built for high-thrust RC and drone applications.
The Pilotix 2808 1100KV is a brushless motor designed for 6S LiPo power systems. With a maximum thrust of ≥2300g and a no-load speed of 10450–11550 RPM at 10V, it delivers measurable performance in a compact 33.8×21mm form factor weighing 60g.
Features
- 1100KV rating optimised for 6S LiPo power systems
- Maximum thrust: ≥2300g
- No-load speed at 10V: 10450–11550 RPM
- Peak current at 25V load: ≤50A
- Compact body: 33.8×21mm, 5mm shaft diameter
- Operating noise: ≤90dB
Technical Specifications
- Motor size: 2808
- KV rating: 1100KV
- Power supply: 6S LiPo
- Rated voltage: 25V
- No-load current at 10V: ≤1.5A
- Dimensions: 33.8×21mm
- Shaft diameter: 5mm
- Weight: 60g
