Brushless Motor Pilotix 5315 380KV

Brushless Motor Pilotix 5315 380KV

€58.06
On order: Delivery 4-5 working days.
The Pilotix 5315 380KV is a brushless drone motor for 6–8S power systems, delivering up to 9034g of thrust and 4257W of maximum power output.
Quantity
Safe and trusted bank payments and instalments
  • Bank link
Free delivery from €75For orders in Estonia.
Showroom in TallinnKadaka tee 42b, open Mon–Fri 10:00–18:00.
Expert adviceOur team helps you choose the right gear.
Secure paymentBank links, bank transfer and instalments.
Related Products ( 4 other products in the same category )

High-output brushless motor built for demanding 6–8S drone configurations.

The Pilotix 5315 380KV is a brushless motor designed for high-power drone applications running 6S to 8S power systems. With a maximum thrust of 9034.27g and peak power output of 4257.36W, it is suited for heavy-lift and performance-oriented builds. The motor ships with an attached 13AWG silicone cable.

Features

  • 6–8S power system compatibility with a maximum current rating of 101.875A
  • Maximum thrust: 9034.27g; maximum power output: 4257.36W
  • 12N14P slot-and-pole configuration for smooth, efficient power delivery
  • Internal resistance: 30mΩ; no-load current: 1.24A at 10V
  • Attached 13AWG silicone cable, 150mm in length
  • 6mm shaft diameter

Technical Specifications

  • KV rating: 380KV
  • Power supply: 6–8S
  • Maximum current: 101.875A
  • Internal resistance: 30mΩ
  • Configuration: 12N14P

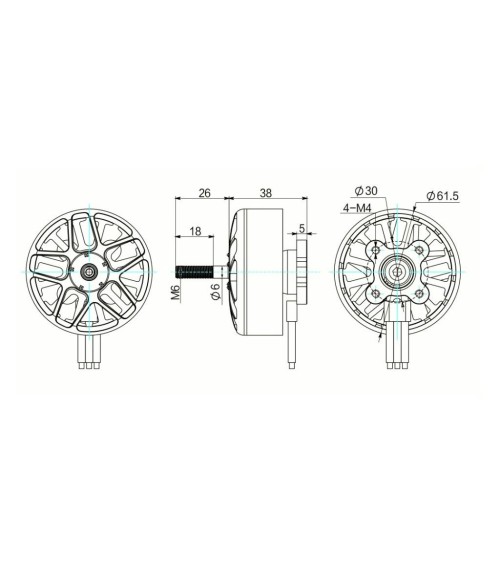

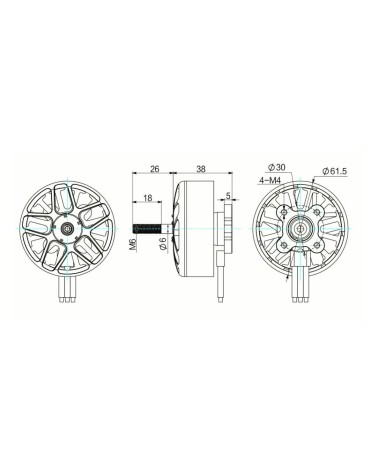

  • Dimensions: Φ61.5 × 64mm
  • Shaft diameter: 6mm
  • Cable: 13AWG, 150mm
  • Weight (including cable): 310g
5543

Data sheet

Colour family
Black
