The HGLRC SPECTER 1202.5 11000KV is a compact brushless motor for 1–2S FPV drones using 2–3-inch propellers, weighing 4.47g.

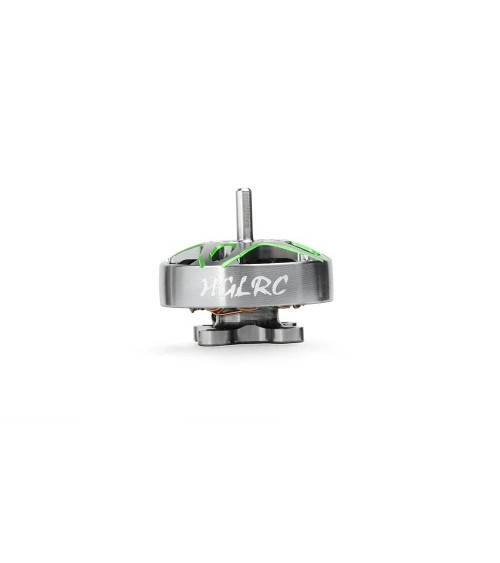

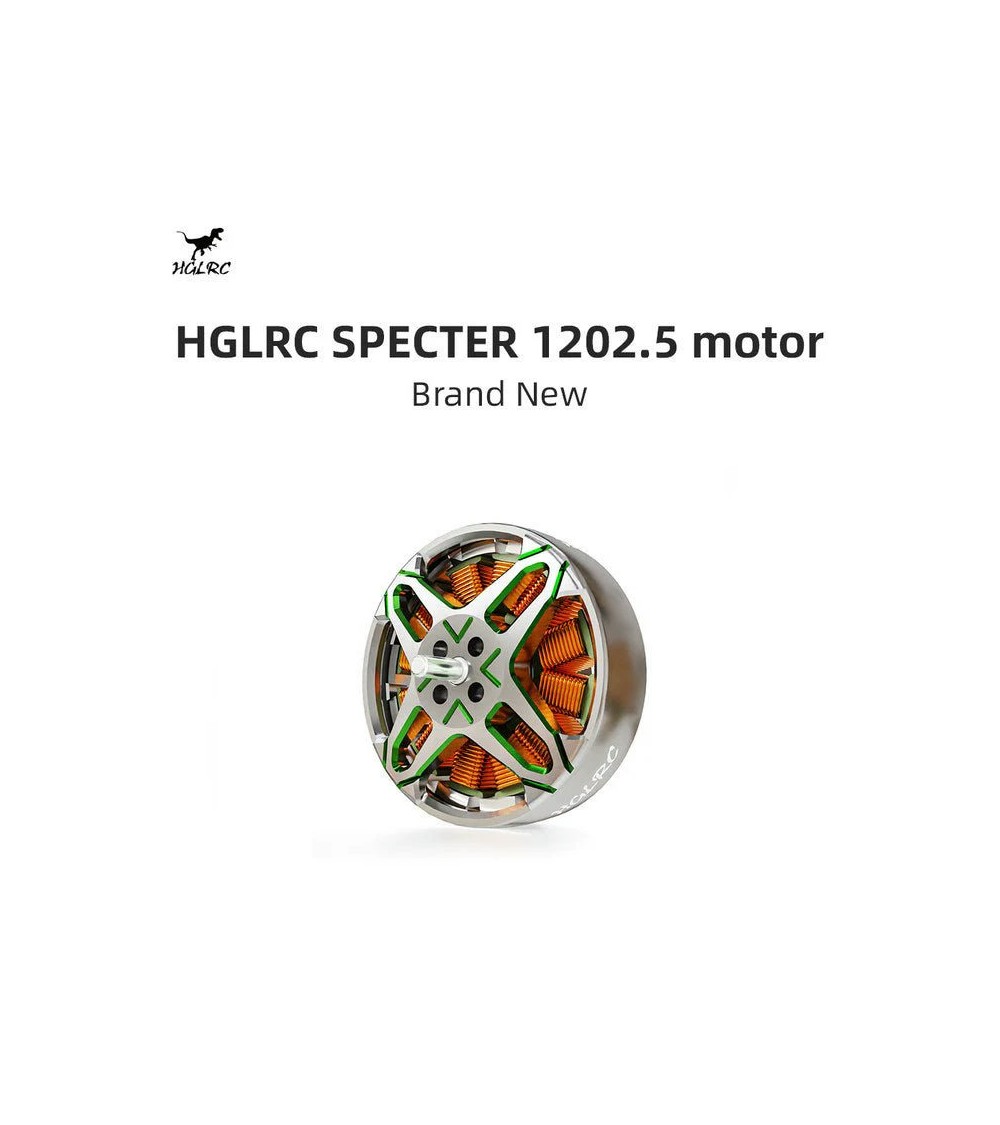

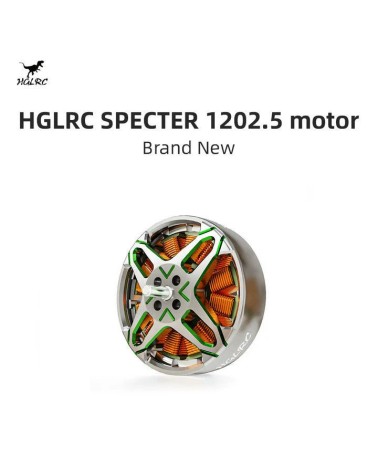

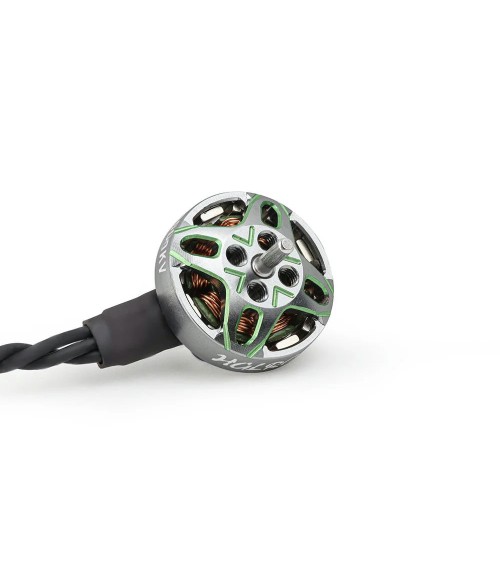

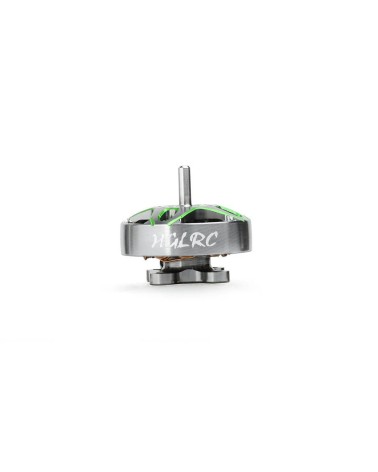

SPECTER 1202.5 11000KV brushless motor
€10.48
On order: Delivery 4-5 working days.
The HGLRC SPECTER 1202.5 11000KV is a compact brushless motor for 1–2S FPV drones using 2–3-inch propellers, weighing 4.47g.
A lightweight 1–2S brushless motor built for small FPV frames where every gram counts.
The HGLRC SPECTER 1202.5 11000KV is designed for 2–3-inch FPV builds running on 1–2S power systems. Its one-piece 7075 aviation aluminium rotor, N52H curved magnetic steel, and Kawasaki silicon-steel sheets deliver reliable performance in a compact 15.84 × 8.9mm package. Maximum output reaches 88W, with a recommended ESC rating above 10A (not included).
Features

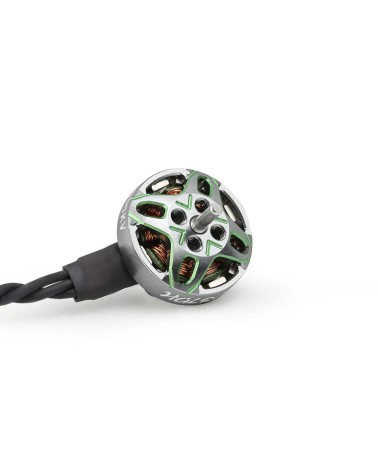

- One-piece 7075 aviation aluminium rotor for low weight and rigidity

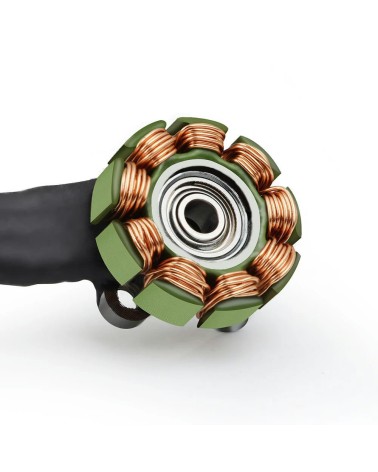

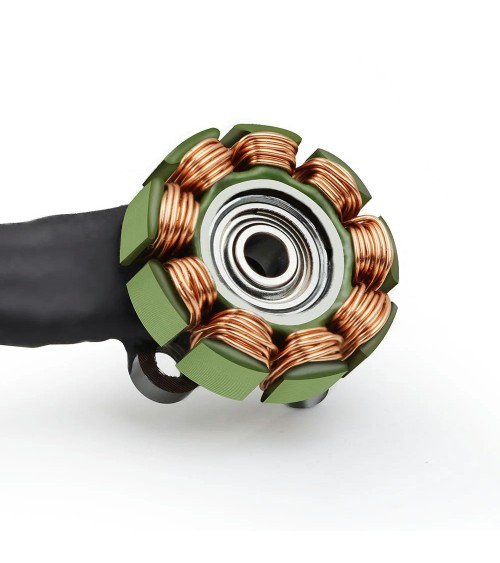

- N52H curved magnetic steel and Kawasaki silicon-steel laminations
- 200° copper wire winding with alloy-steel output shaft
- 4 × M2, Ø9mm mounting pattern for compatible FPV frames

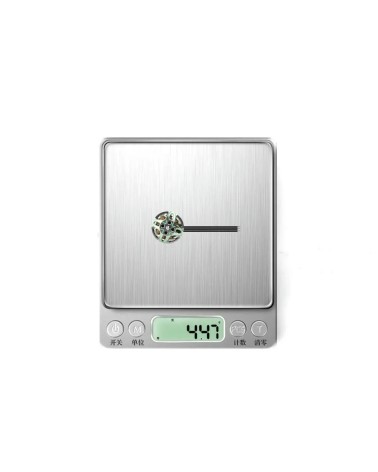

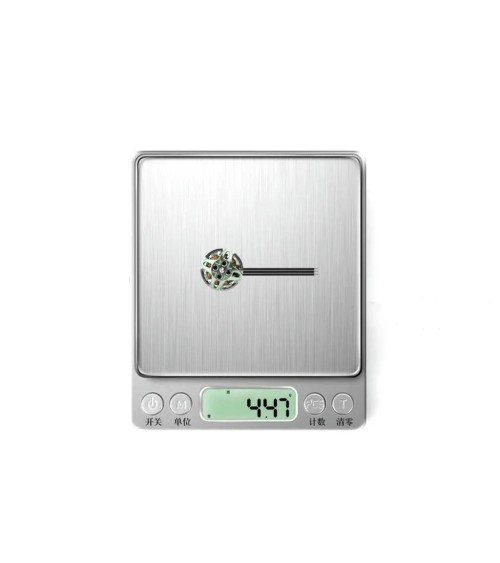

- Weighs 4.47 ± 0.3g including wire

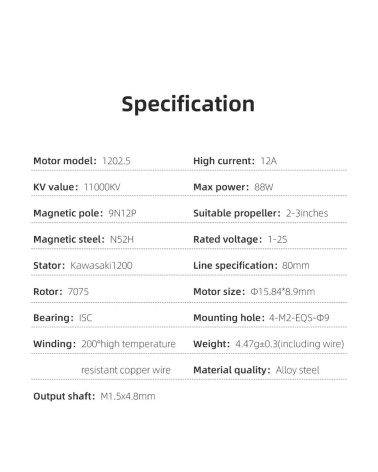

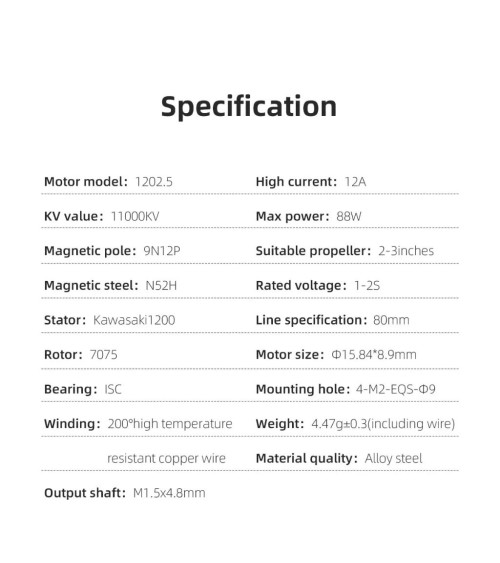

Technical Specifications
- KV: 11000KV
- Configuration: 9N12P
- Input voltage: 3.7–7.4V (1–2S)
- Maximum continuous current: 12A (5s)
- Maximum power: 88W

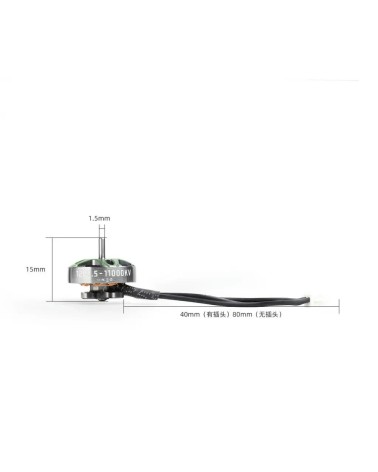

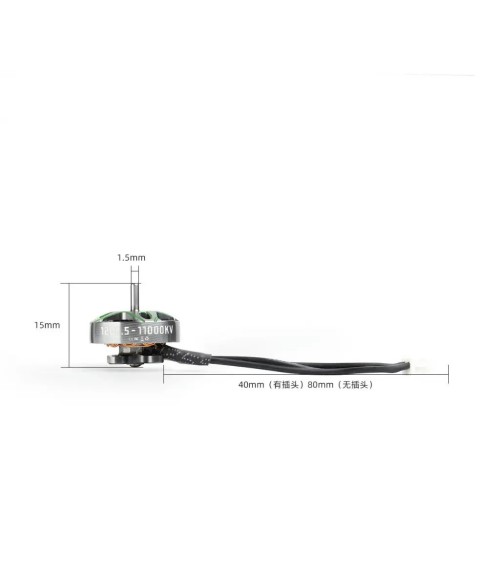

- Dimensions: 15.84 × 8.9mm
- Mounting: 4 × M2, Ø9mm
- Weight: 4.47 ± 0.3g (including wire)
- Recommended propeller: 2–3 inches (not included)
- Recommended ESC: >10A (not included)
F42-01053
