The Pilotix 1205 5500KV is a compact brushless motor for 2–3-inch FPV drone builds, rated for 4S LiPo power systems.

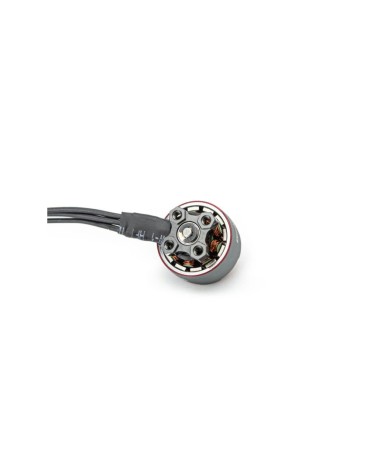

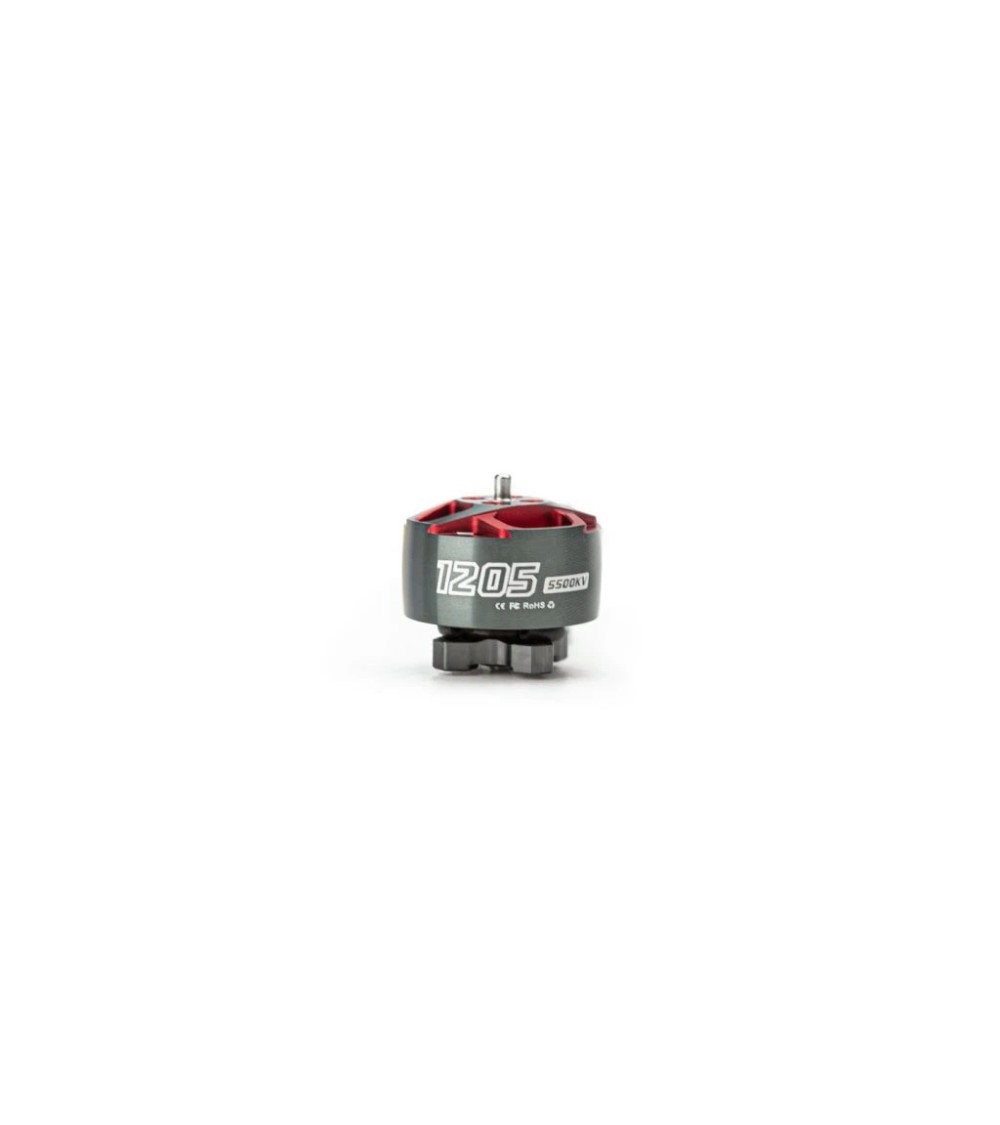

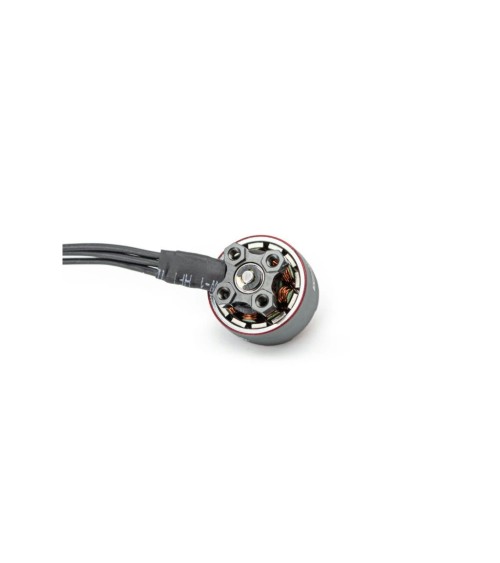

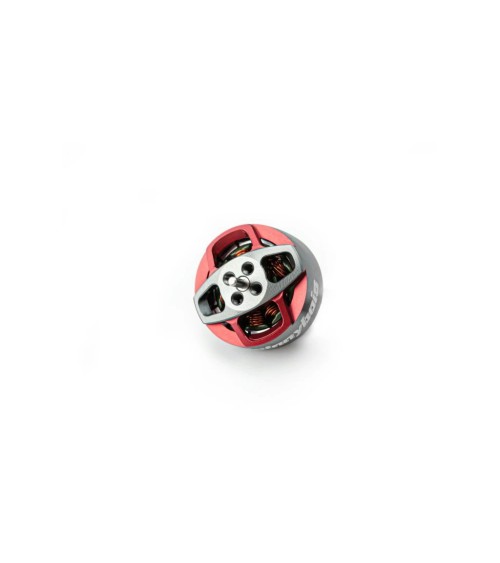

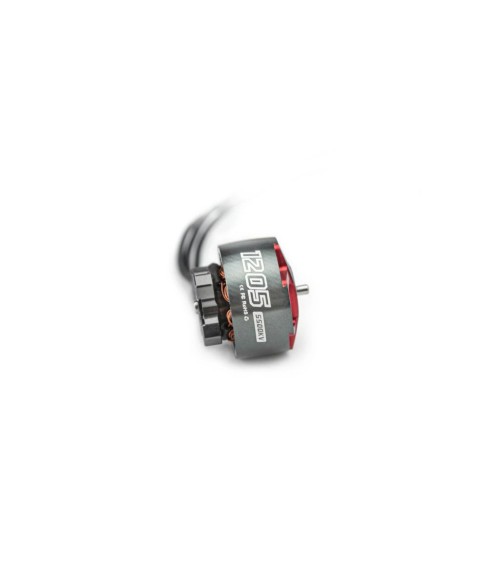

Brushless Motor Pilotix 1205 5500KV
€19.96
On order: Delivery 4-5 working days.
The Pilotix 1205 5500KV is a compact brushless motor for 2–3-inch FPV drone builds, rated for 4S LiPo power systems.
A compact, high-KV brushless motor built for lightweight 2–3-inch FPV drone frames on 4S power.
The Pilotix 1205 5500KV is a brushless motor designed for small FPV drone builds using 2–3-inch propellers. It runs on a 4S LiPo input (16.8V) and is paired with a 20A ESC. Construction centres on N52H magnets, a 7075 aluminium rotor, NMB bearings, and single-strand copper winding in a 9N12P configuration.
Features
- 9N12P motor configuration with N52H magnets
- 7075 aluminium rotor for strength-to-weight efficiency
- NMB bearing for smooth, reliable rotation
- Single-strand copper winding
- Compatible with 2–3-inch propellers on 4S LiPo systems
- 22AWG 100mm lead included for direct ESC connection
Technical Specifications
- Motor size: 1205
- KV rating: 5500KV
- Input voltage: 16.8V (4S LiPo)
- Recommended ESC: 20A
- Dimensions: 16.72 × 13.83mm
- Shaft diameter: 1.5mm / Shaft protrusion: 2mm
- Mounting holes: 9 × 9mm
- Lead: 22AWG, 100mm
