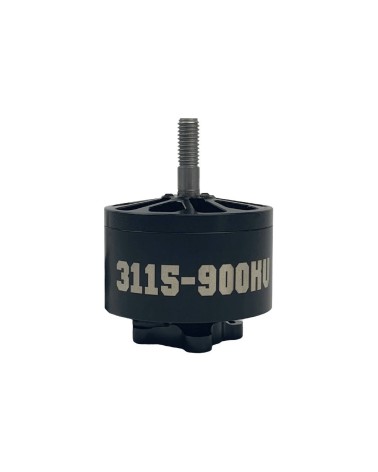

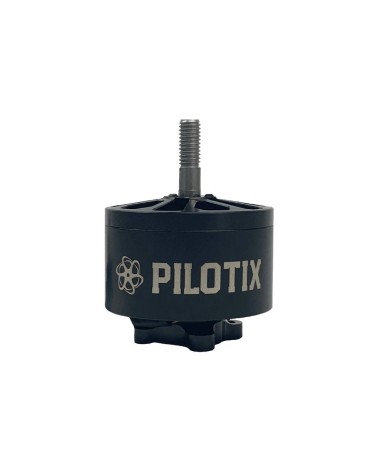

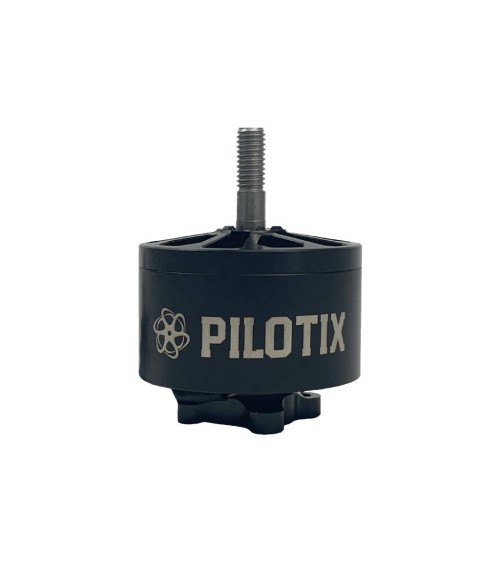

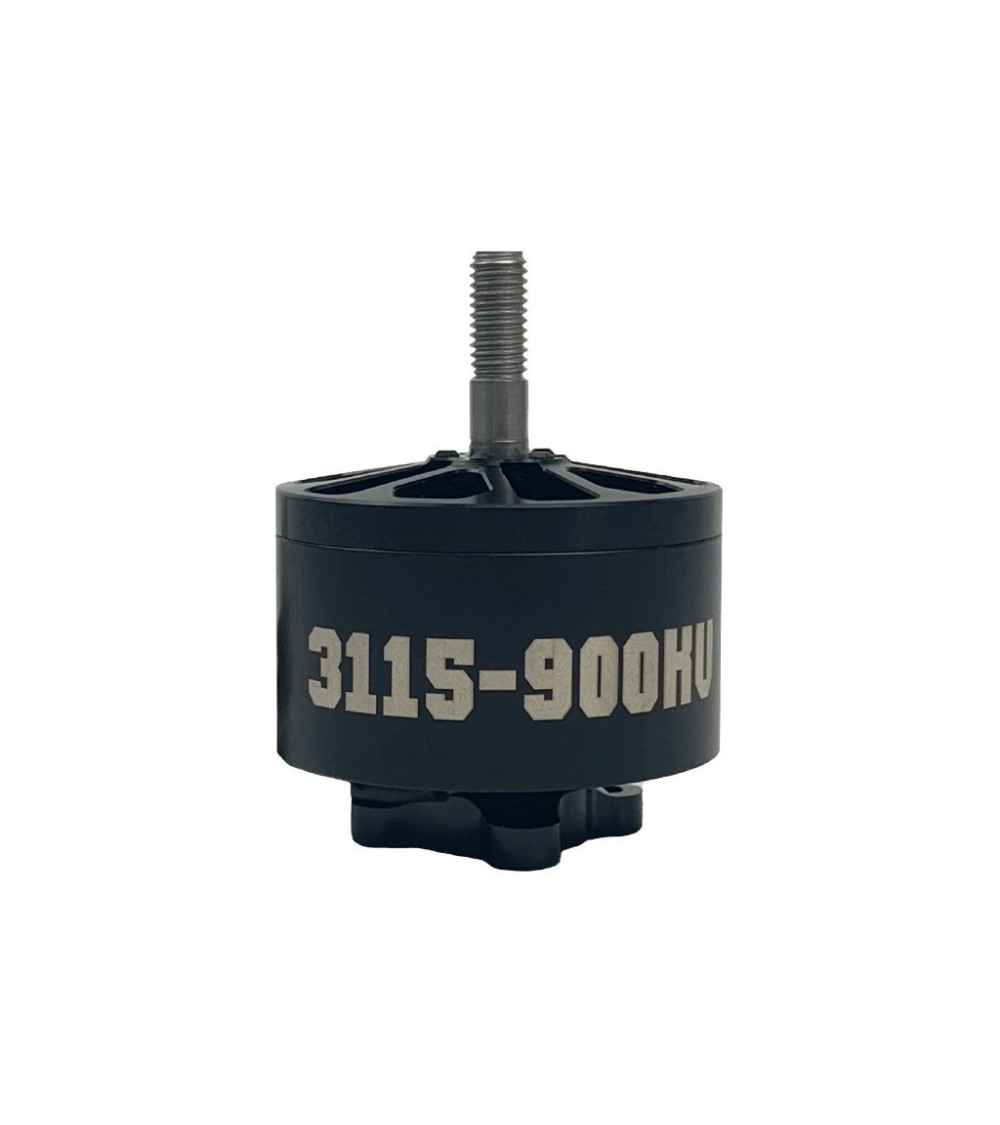

Brushless Motor Pilotix A3115 900KV

Brushless Motor Pilotix A3115 900KV

€21.02
On order: Delivery 4-5 working days.
The Pilotix A3115 is a 900KV brushless motor rated for 3–6S power systems, delivering up to 4080g thrust and 1592W maximum power.
Quantity
Safe and trusted bank payments and instalments
  • Bank link
Free delivery from €75For orders in Estonia.
Showroom in TallinnKadaka tee 42b, open Mon–Fri 10:00–18:00.
Expert adviceOur team helps you choose the right gear.
Secure paymentBank links, bank transfer and instalments.
Related Products ( 4 other products in the same category )

A 900KV brushless motor built for demanding RC and drone applications on 3–6S power systems.

The Pilotix A3115 900KV is a brushless outrunner motor suited for medium-to-large RC models and drone builds requiring high thrust output. Its 12N/14P configuration, low internal resistance, and 1592W power ceiling make it a capable choice for builders working with 3–6S LiPo setups.

Features

  • 900KV rating with 12N/14P stator configuration
  • 3–6S LiPo compatible with 63.7A peak current (60 seconds)
  • Maximum thrust: 4080g; maximum power: 1592W
  • 5mm shaft with 4-M3×7 propeller mounting
  • Low internal resistance: 0.046Ω
  • Compact form factor at ф37.1 × 32mm

Technical Specifications

  • Motor size: 3115
  • KV rating: 900KV
  • Power supply: 3–6S LiPo
  • Configuration: 12N/14P
  • Maximum thrust: 4080g
  • Maximum power: 1592W
  • Peak current: 63.7A (60s)
  • Idle current: 1.28A / 12V
  • Internal resistance: 0.046Ω
  • Shaft diameter: 5mm
  • Propeller mounting: 4-M3×7
  • Motor cable: 16#300(+5,-0)
  • Dimensions: ф37.1 × 32mm
  • Weight (including cable): 113.5g
4250

Data sheet

Colour family
Black
