The Pilotix 4214 660KV is a brushless motor for 8S LiPo FPV drone builds, rated at 5531g maximum thrust and 1765.1W maximum power.

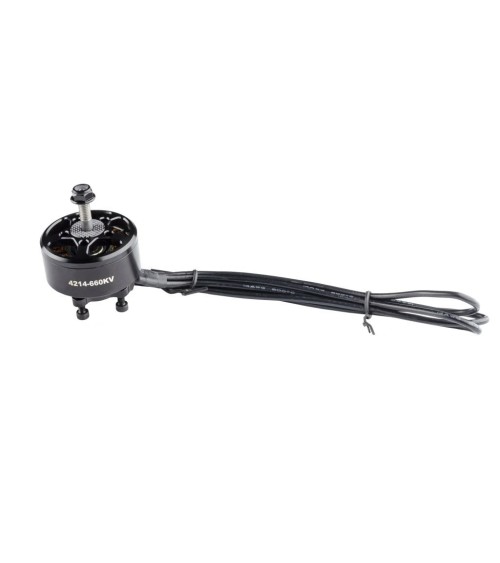

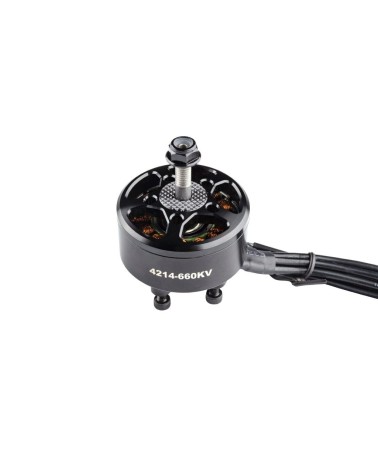

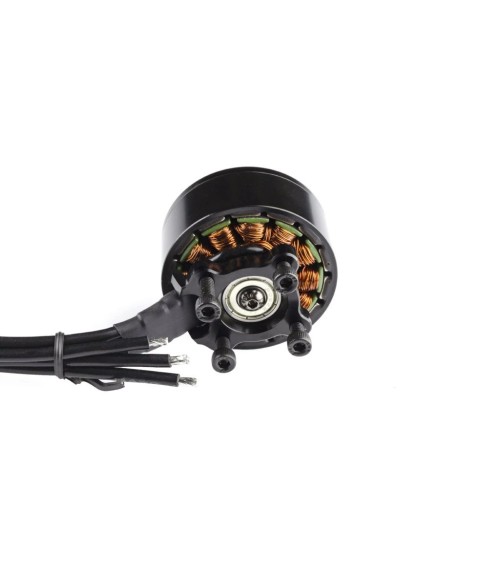

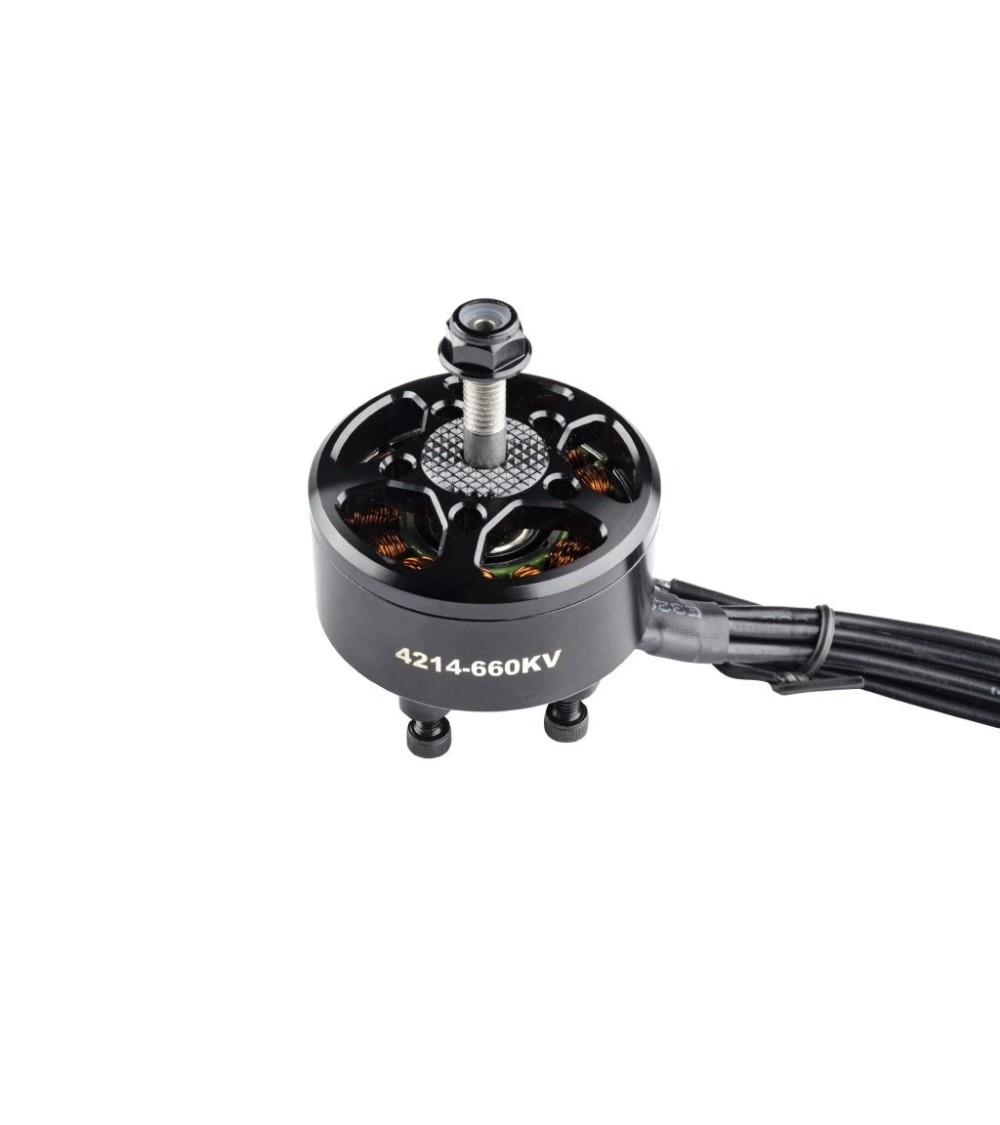

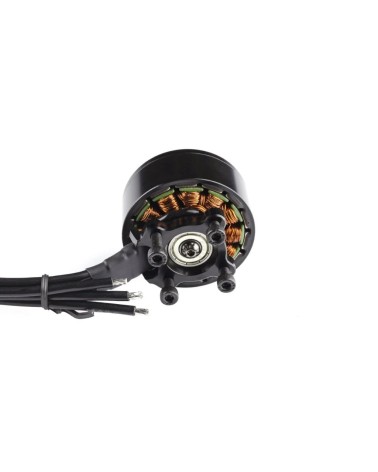

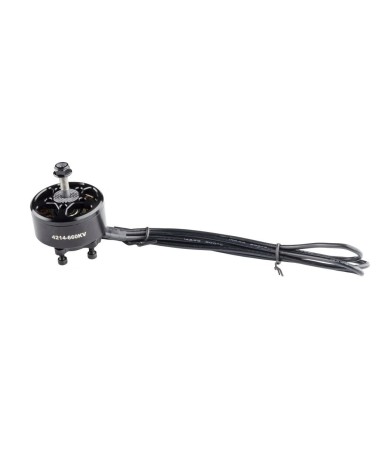

Motor Pilotix 4214-660KV
€56.45
On order: Delivery 4-5 working days.
The Pilotix 4214 660KV is a brushless motor for 8S LiPo FPV drone builds, rated at 5531g maximum thrust and 1765.1W maximum power.
A high-output brushless motor built for 8S LiPo FPV drone configurations.
The Pilotix 4214 660KV is a brushless motor designed for demanding FPV drone builds requiring substantial thrust and power. Its 12N14P configuration, 5531g maximum thrust, and 1765.1W maximum power output provide clear, confirmed performance figures for component selection. Dynamic balance rated at ≤20mg supports stable flight characteristics.
Features
660KV rating with 8S LiPo compatibility
Maximum thrust: 5531g; maximum power: 1765.1W
12N14P slot and pole configuration
Dynamic balance rated at ≤20mg
Supplied with 14AWG, 300mm wire for direct power system connection
4 × M4 @ D30mm mounting pattern with 6mm shaft
Technical Specifications
Motor dimensions: Φ49 × H43.5mm
No-load current: ≤1.5A
Resistance: 23.41mΩ ±3%
Magnet temperature resistance: 120°C
Enamelled wire temperature resistance: 180°C
Isolation test: 500V
Weight (with wire): 124.9g
