Brushless Motor Pilotix 2006 2150KV is a 20×6mm stator brushless motor rated at 2150KV for 3.5-inch, 6S drone builds.

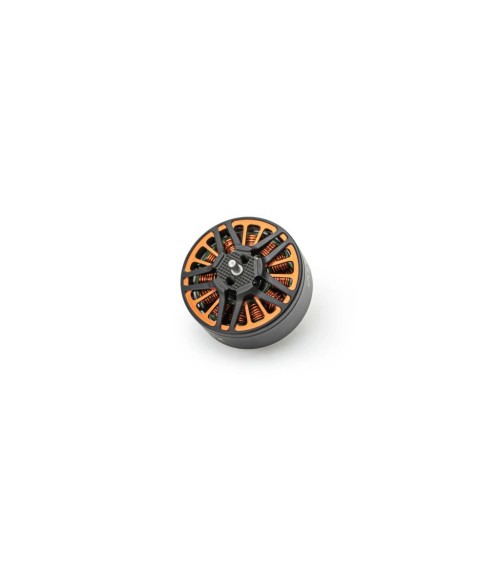

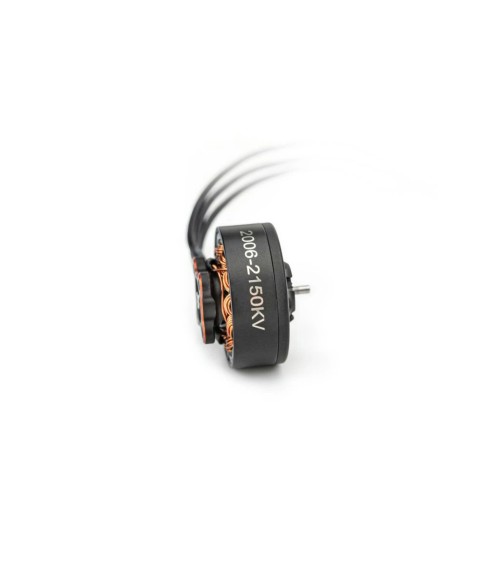

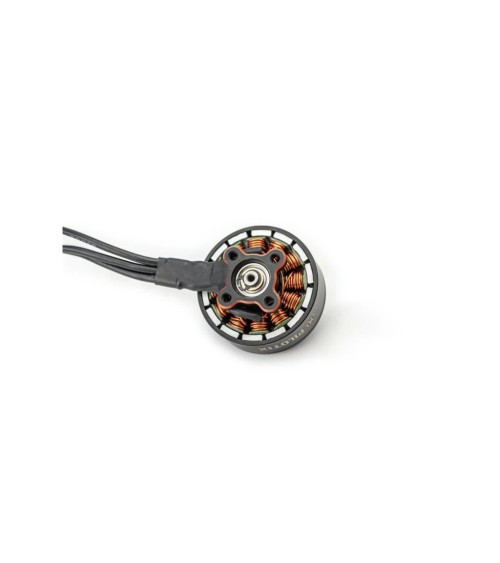

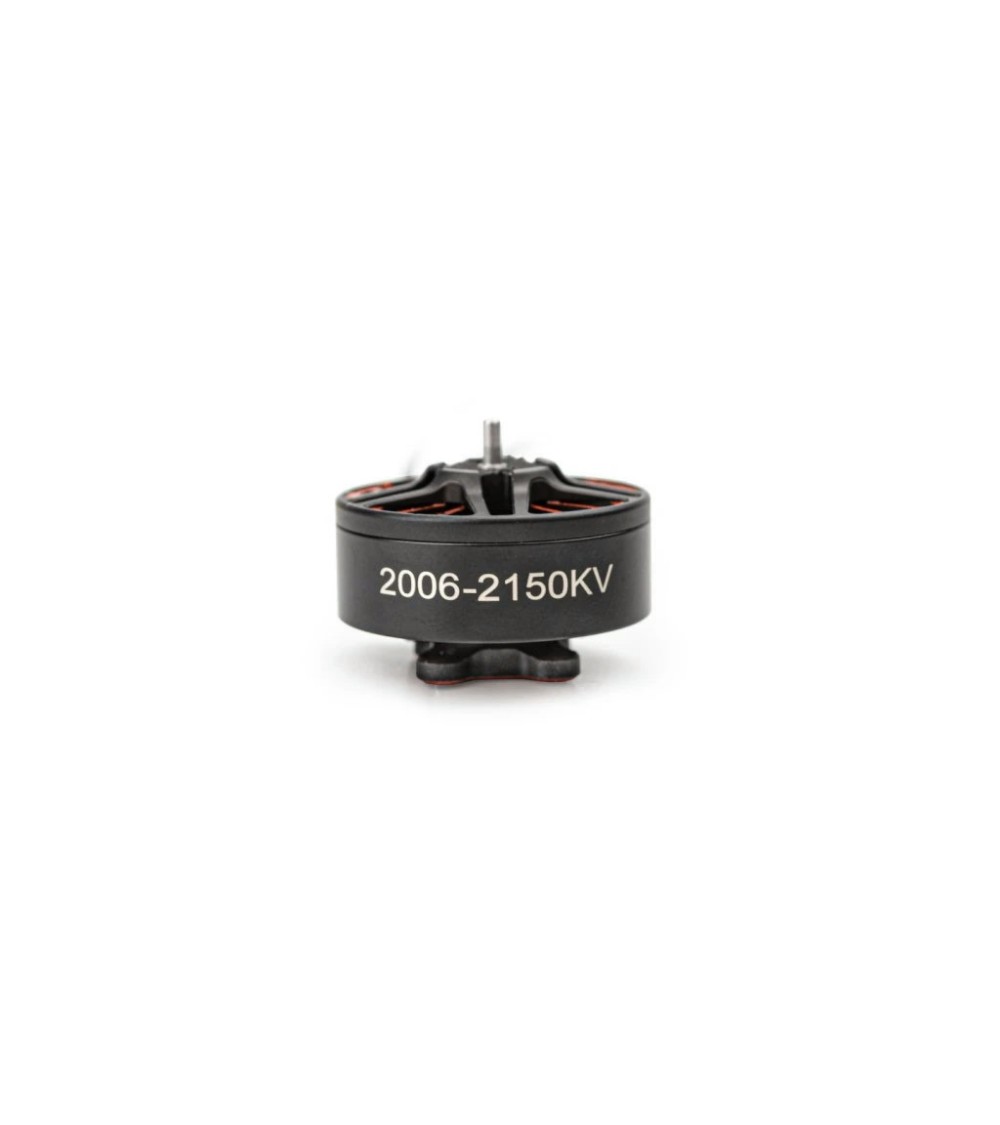

Brushless Motor Pilotix 2006 2150KV
€25.20
On order: Delivery 4-5 working days.
Brushless Motor Pilotix 2006 2150KV is a 20×6mm stator brushless motor rated at 2150KV for 3.5-inch, 6S drone builds.
A compact, high-efficiency brushless motor built for 3.5-inch 6S drone platforms.
The Pilotix 2006 2150KV features a 20mm stator diameter and 6mm stator height with a 12-slot, 14-pole configuration. Rated for 25.2V (6S) operation, it delivers up to 523.44W at a maximum current of 21.81A. Dynamic balance of ≤10mg keeps vibration minimal for stable flight performance.
Features
- 2150KV rating optimised for 3.5-inch propellers on 6S power systems
- 12 stator slots / 14 stator poles for smooth power delivery
- Dynamic balance ≤10mg to minimise vibration
- Compact form factor: 25.6 × 19mm overall dimensions
- 1.5mm shaft diameter with 22AWG × 100mm lead wire
- Compatible with 30A ESC
Technical Specifications
- Stator: 20mm diameter × 6mm height
- Rated voltage: 25.2V (6S)
- Maximum current: 21.81A
- Maximum power: 523.44W
- No-load current: 1A
- Internal resistance: 83mΩ
- Shaft diameter: 1.5mm
- Lead wire: 22AWG × 100mm
- Overall dimensions: 25.6 × 19mm
