The HGLRC SPECTER 2306.5-1900KV is a brushless motor built for 5-inch freestyle and racing FPV builds on 5–6S power systems, delivering up to 1145W peak power.

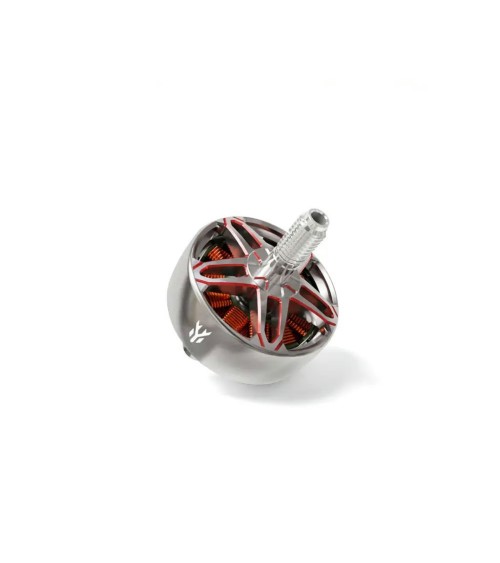

HGLRC SPECTER 2306.5-1900KV
€16.09
On order: Delivery 4-5 working days.
The HGLRC SPECTER 2306.5-1900KV is a brushless motor built for 5-inch freestyle and racing FPV builds on 5–6S power systems, delivering up to 1145W peak power.
A high-output brushless motor engineered for 5-inch freestyle and racing FPV applications on 5–6S power systems.

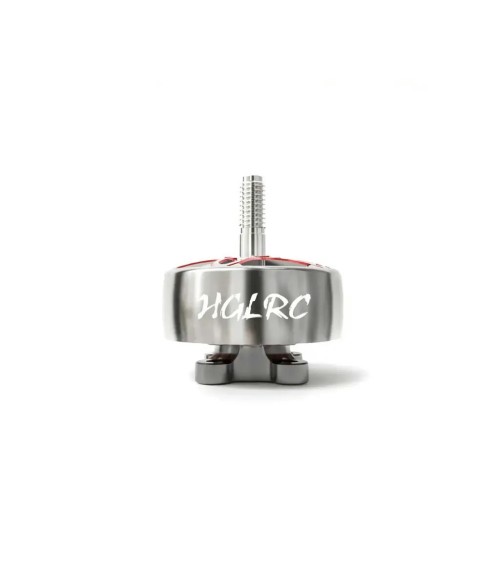

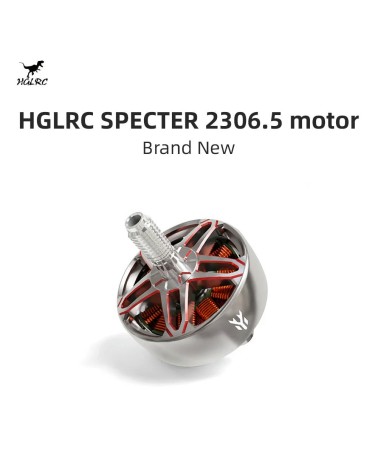

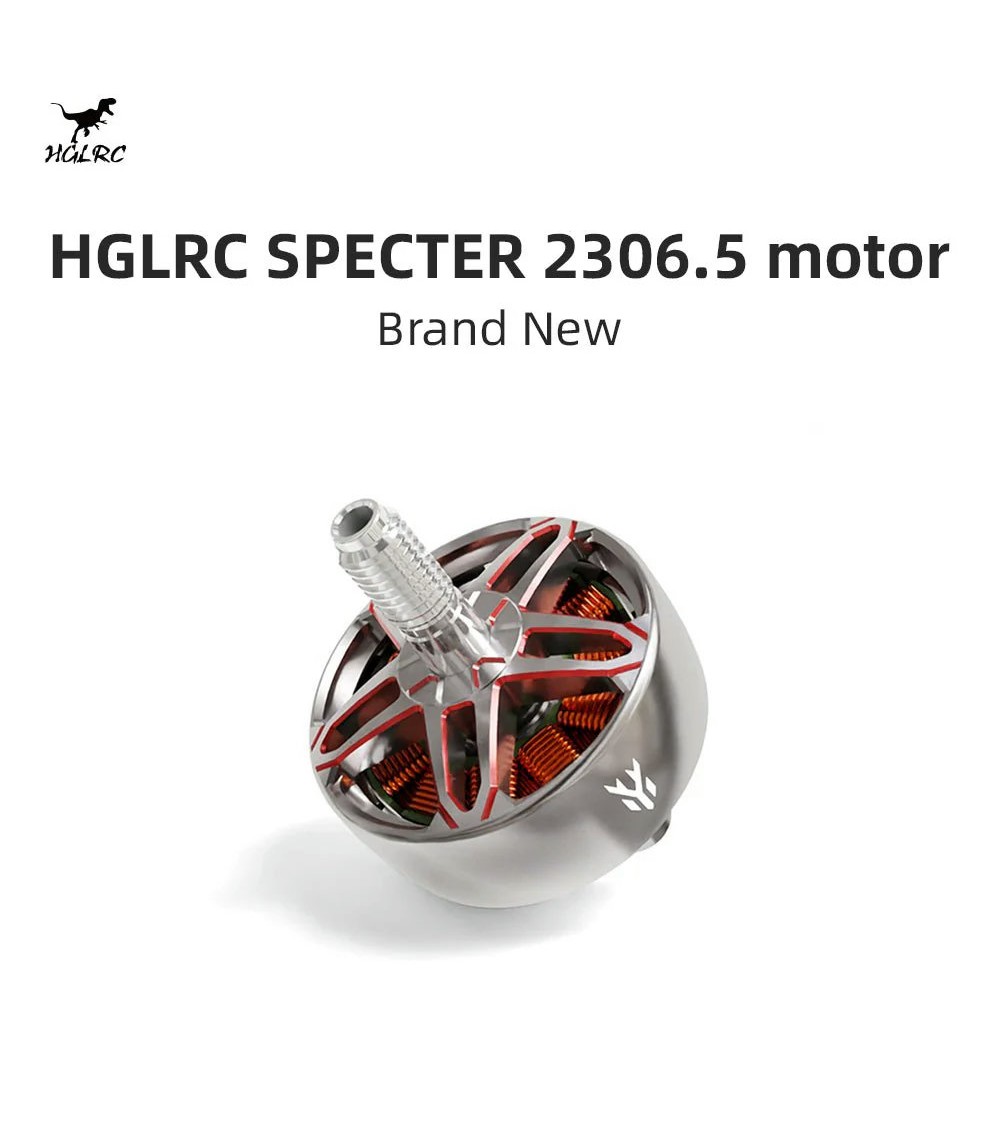

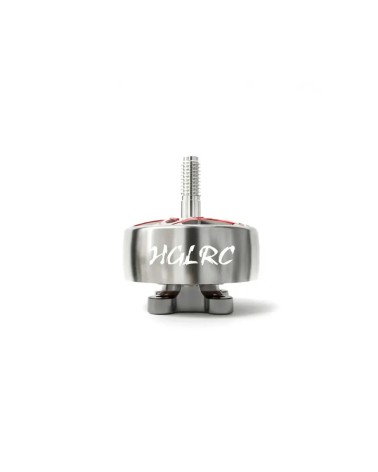

The HGLRC SPECTER 2306.5-1900KV is built around a one-piece 7075 aviation aluminium rotor, a titanium-alloy shaft, and a Kawasaki 1200 stator wound with 260° high-temperature-resistant copper wire. It supports a maximum current of 47.7A and peak power output of 1145W, with a standard 16×16mm (M3) mounting pattern compatible with most 5-inch FPV frames.
Features

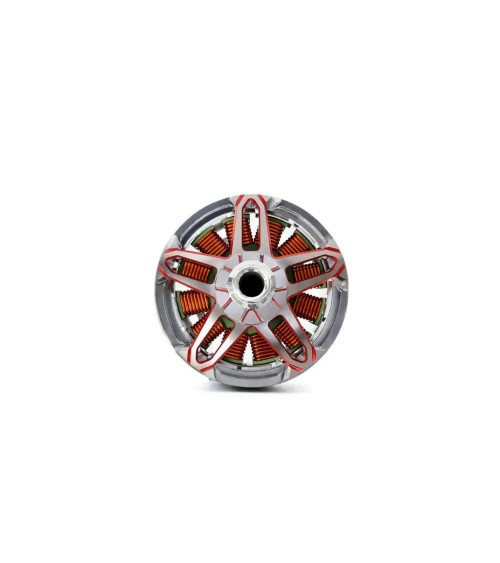

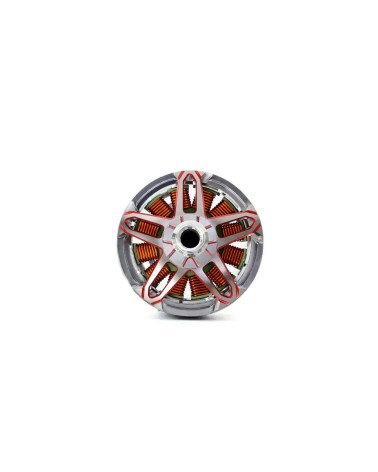

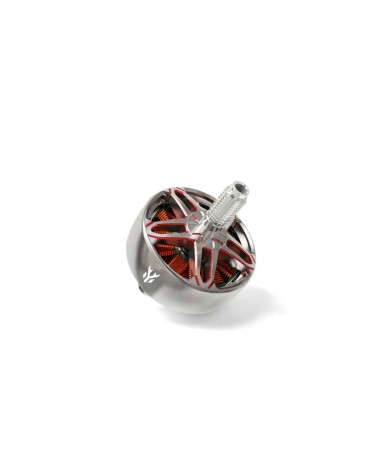

- One-piece rotor machined from 7075 aviation aluminium with N52H curved magnetic steel
- Titanium-alloy output shaft with ISC bearings for reliable operation under load

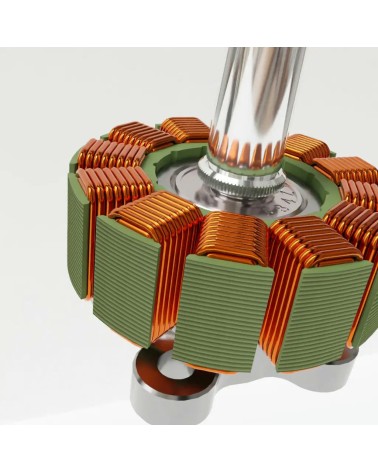

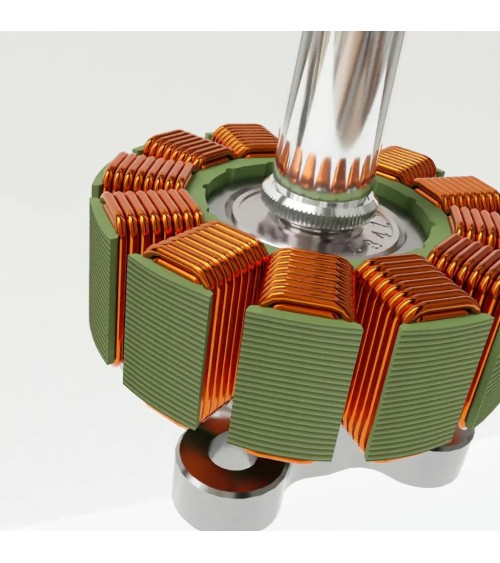

- Kawasaki 1200 stator wound with 260° high-temperature-resistant copper wire
- Compatible with 5–6S power systems and 5–6-inch propellers

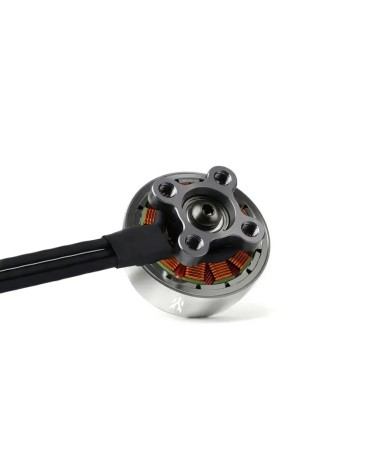

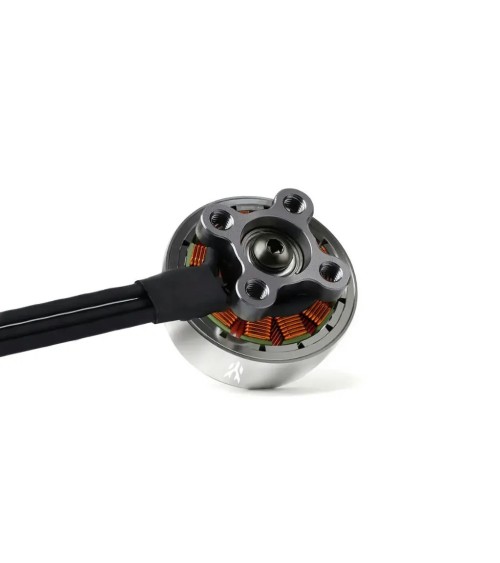

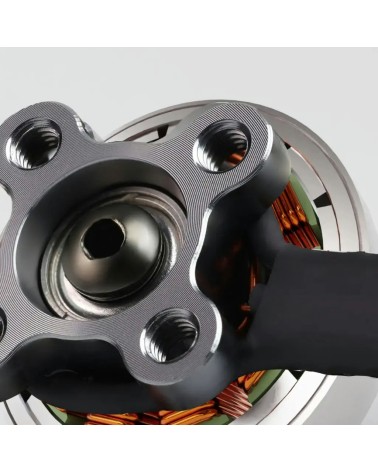

- 16×16mm (M3) mounting pattern for broad frame compatibility

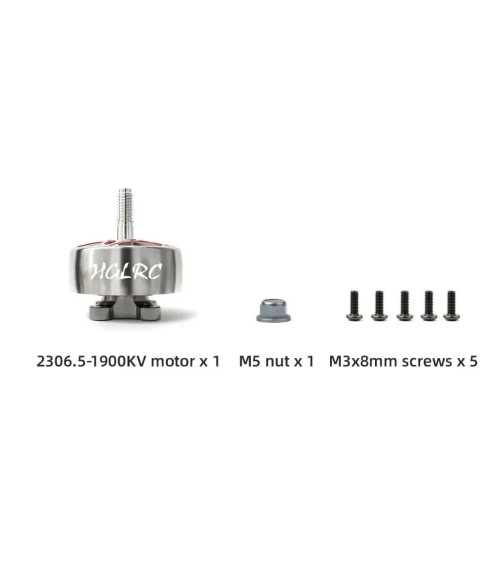

- Includes M5 anti-loosening nut and M3×8mm mounting screws

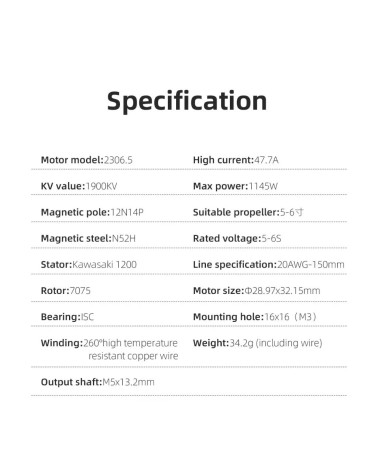

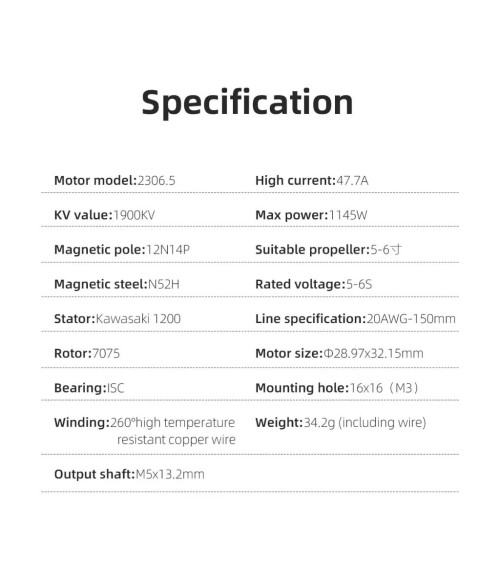

Technical Specifications
- Motor model: 2306.5, 1900KV
- Pole configuration: 12N14P
- Maximum current: 47.7A
- Maximum power: 1145W
- Rated voltage: 5–6S
- Motor wires: 20AWG, 150mm
- Output shaft: M5×13.2mm

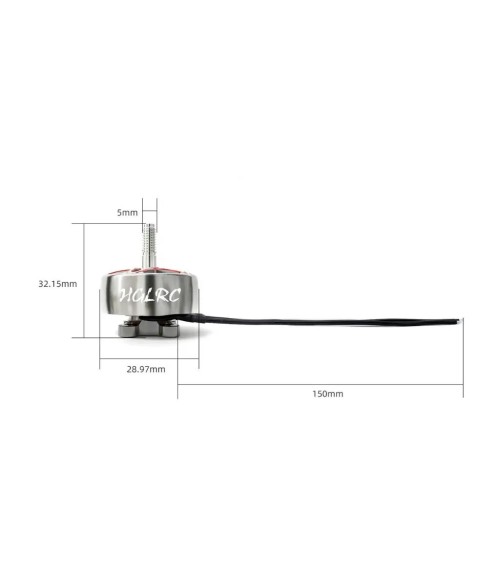

- Motor dimensions: 28.97×32.15mm

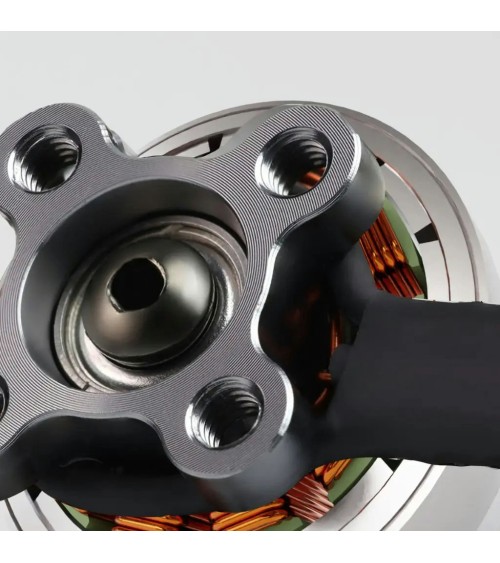

- Mounting pattern: 16×16mm (M3)
- Weight: 34.2g (including wire)
F42-00714
