The Motor Pilotix 1405 3200KV is a compact brushless motor for 2.5-inch FPV drone builds on a 6S power system, weighing 12.3g.

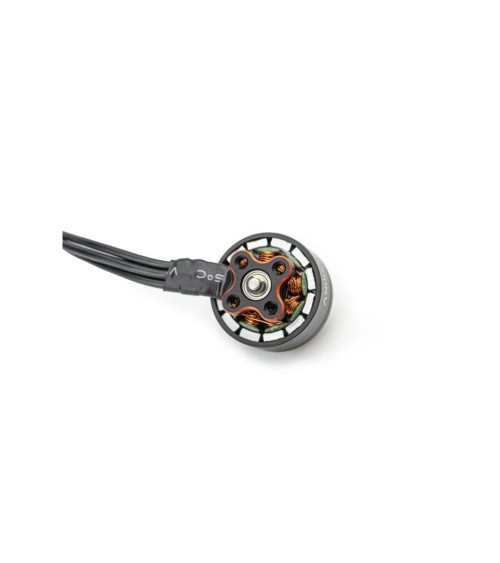

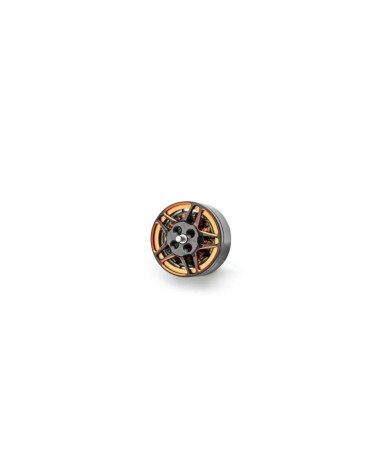

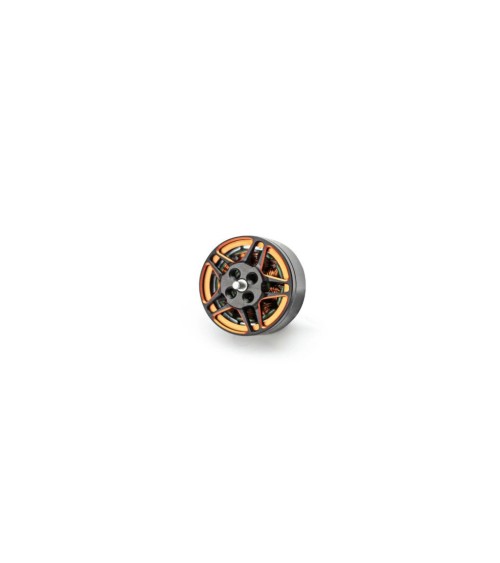

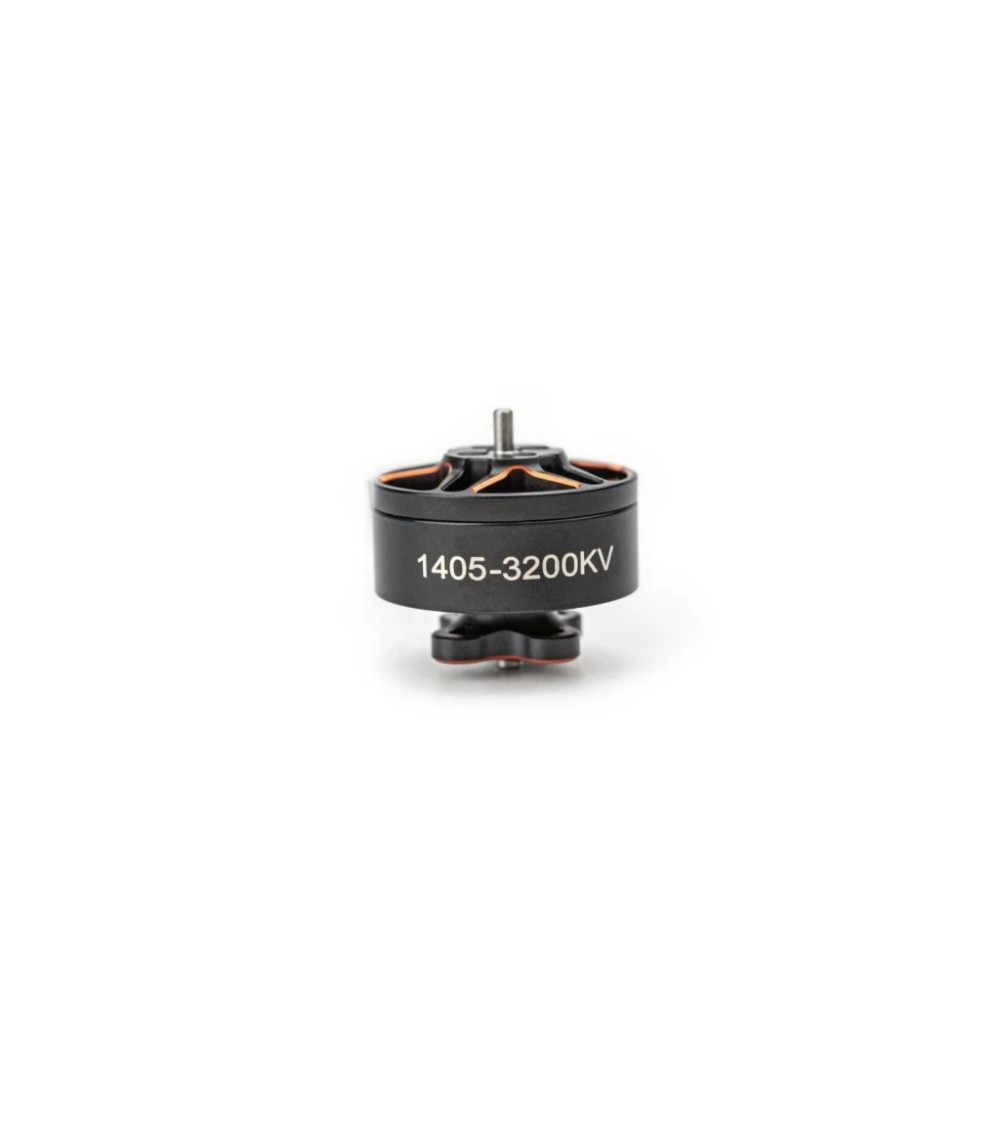

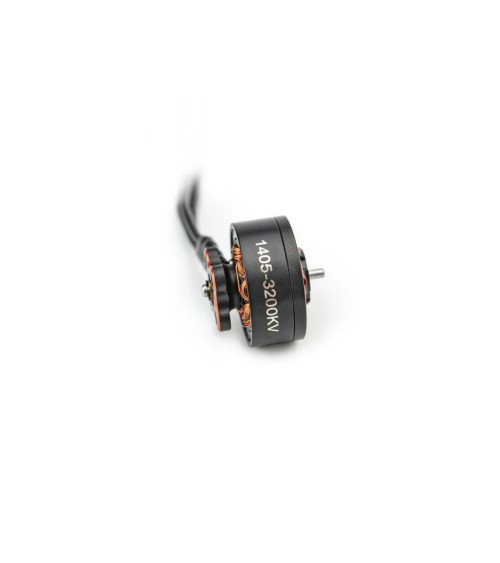

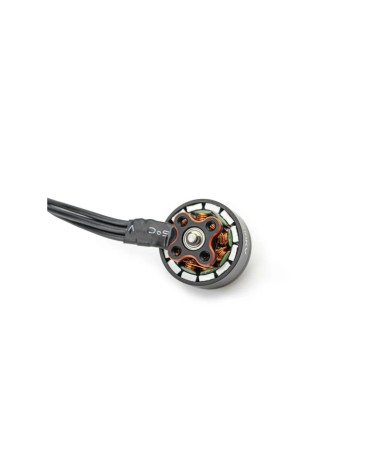

Motor Pilotix 1405 3200KV
€20.96
On order: Delivery 4-5 working days.
The Motor Pilotix 1405 3200KV is a compact brushless motor for 2.5-inch FPV drone builds on a 6S power system, weighing 12.3g.
Lightweight 6S brushless motor built for compact 2.5-inch FPV drone configurations.
The Motor Pilotix 1405 3200KV is a brushless motor designed for FPV builds where weight and installation space are critical constraints. Its 14×5mm stator and 9S12P configuration deliver up to 288.24W peak power on a 6S system, while the overall 19×17.4mm footprint keeps the build compact.
Features
- N52SH arc magnets for efficient power delivery
- 6S (24V) rated voltage with 12.01A peak current
- 9S12P stator configuration, 14×L5mm stator size
- 1.5mm shaft diameter, 3mm protruding shaft length
- 24AWG 100mm silicone wire pre-fitted
- Low 12.3g weight including cable
Technical Specifications
- Motor size: 1405
- KV rating: 3200KV
- Rated voltage: 6S (24V)
- Peak current: 12.01A
- Maximum instantaneous power: 288.24W
- Idle current at 10V: 0.4A
- Internal resistance: 270mΩ
- Dimensions: 19×L17.4mm
- Propeller compatibility: 2.5 inch
- Weight (including cable): 12.3g
