The iFlight XING2 2207 Unibell 1750KV is a 12N14P brushless motor rated for 6S systems, delivering up to 898W with a crash-resistant 7075 aluminium Unibell and 5mm titanium alloy shaft.

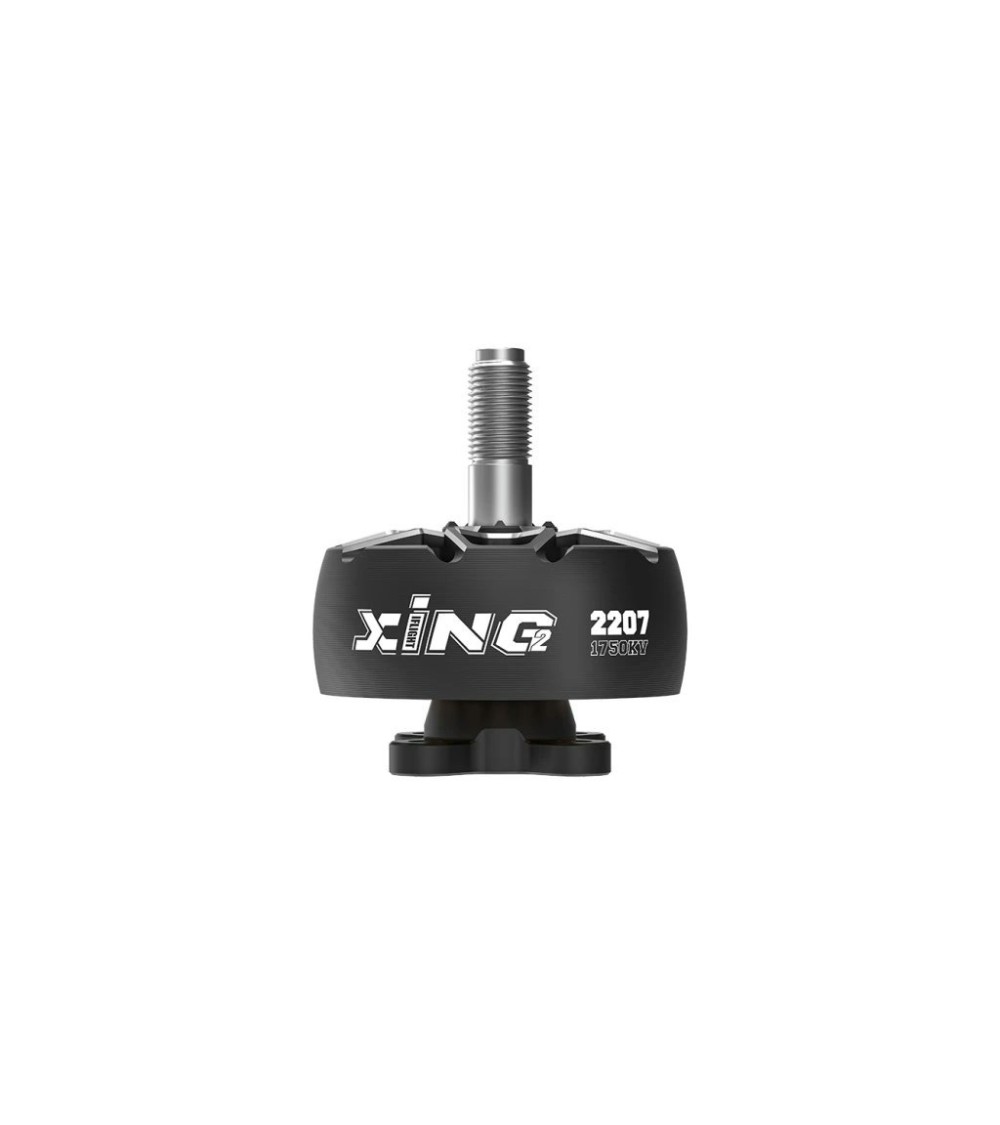

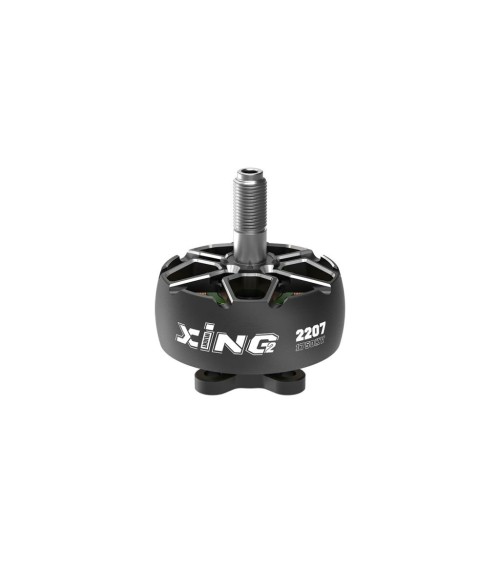

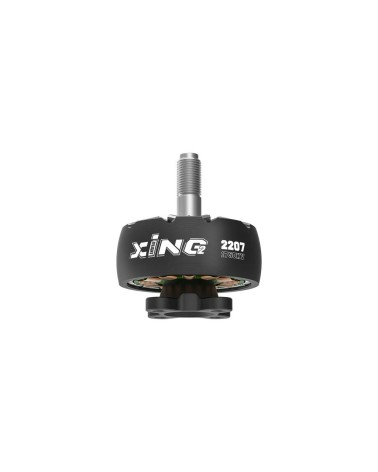

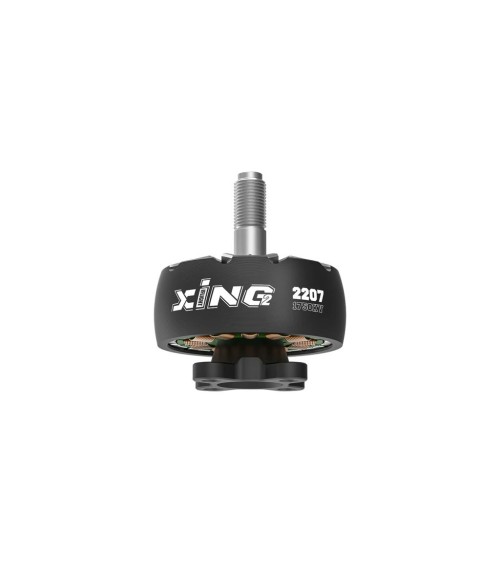

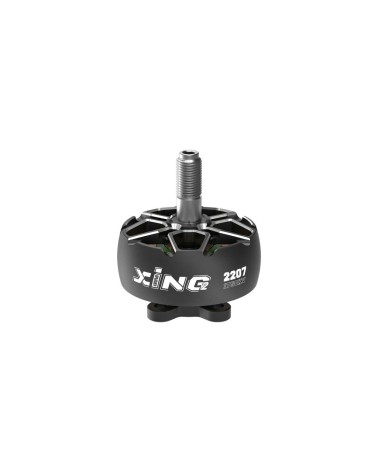

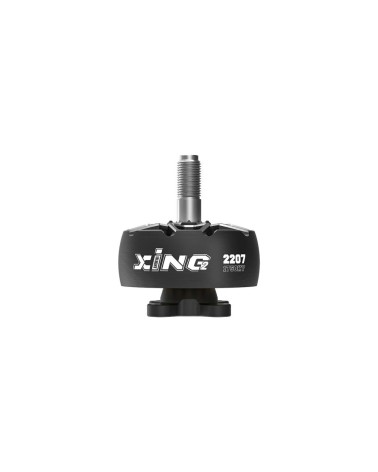

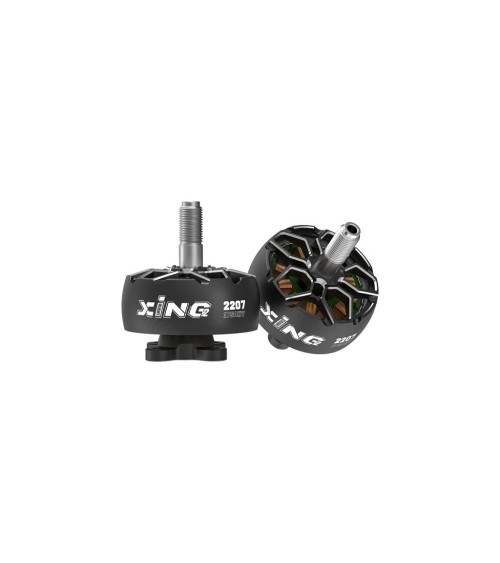

Motor iFlight XING2 2207 Unibell 1750KV (6S)
€22.98
On order: Delivery 4-5 working days.
The iFlight XING2 2207 Unibell 1750KV is a 12N14P brushless motor rated for 6S systems, delivering up to 898W with a crash-resistant 7075 aluminium Unibell and 5mm titanium alloy shaft.
A purpose-built 6S brushless motor combining crash-resistant construction with precise dynamic balancing for demanding FPV applications.
The iFlight XING2 2207 Unibell 1750KV is a 12N14P brushless motor rated for 6S power systems. It delivers up to 898W at 25.2V with a peak current of 36.03A, providing clear figures for ESC and power component matching. The Unibell design uses 7075 aluminium for impact resistance, paired with a 5mm titanium alloy shaft and N52H curved magnets for responsive operation.
Features
- 1750KV rating for 6S (25.2V) systems — up to 898W maximum power
- Crash-resistant 7075 aluminium Unibell construction
- 5mm titanium alloy shaft with 13.5mm protrusion for propeller mounting
- Center-slotted N52H curved magnets for responsive motor response
- NSK 9×4×4mm bearings with dynamic balancing for smooth rotation
- XING O-ring bearing gap protection
Technical Specifications
- Configuration: 12N14P
- Input voltage: 25.2V | Peak current: 36.03A | Max power: 898W
- Interphase resistance: 74.23mΩ
- Bell material: 7075 aluminium | Shaft: Titanium alloy, 5mm diameter
- Bearings: NSK φ9×φ4×4mm
- Winding: Single strand copper
- Motor dimensions: φ29×32.75mm
- Mounting pattern: 16×16mm, φ3mm holes
- Lead: 160mm / 20AWG
- Weight (including wire): 30.5g
