The HGLRC Wind5 Lite V2 is a 5-inch positive-X FPV racing frame built from Toray-T700 carbon fibre and 7075 aluminium, weighing 69.5g with single-screw quick-release arms.

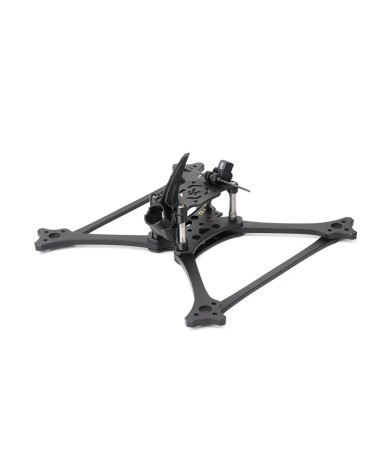

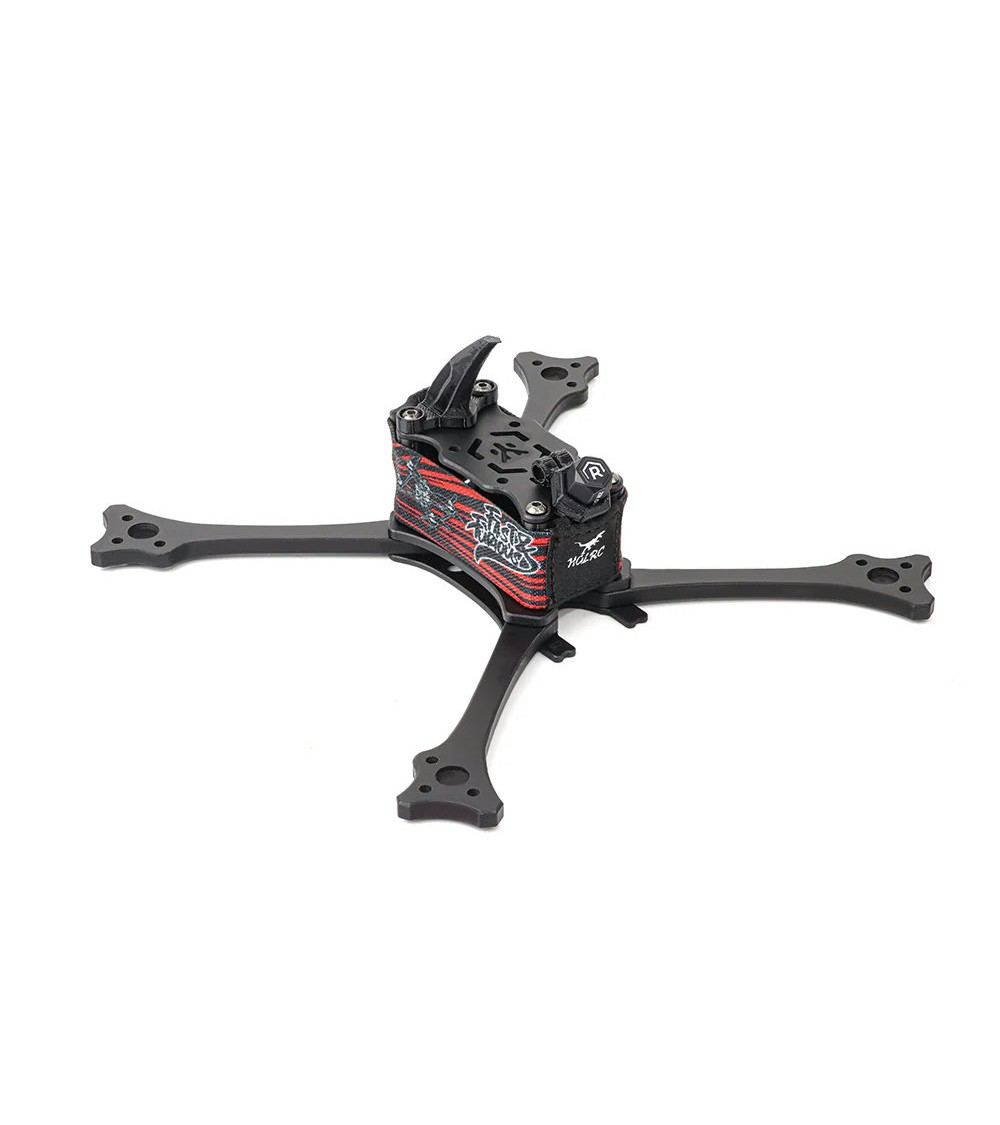

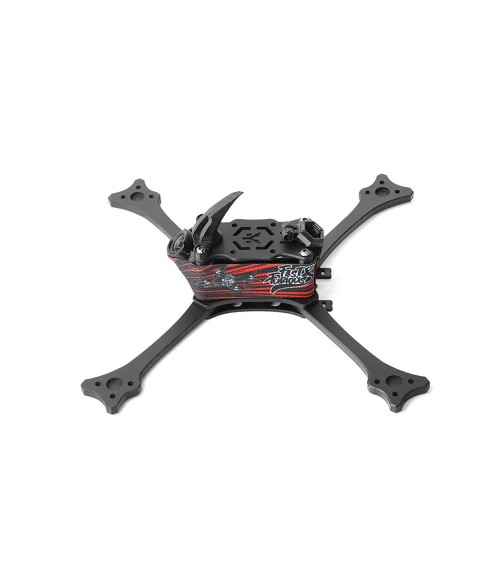

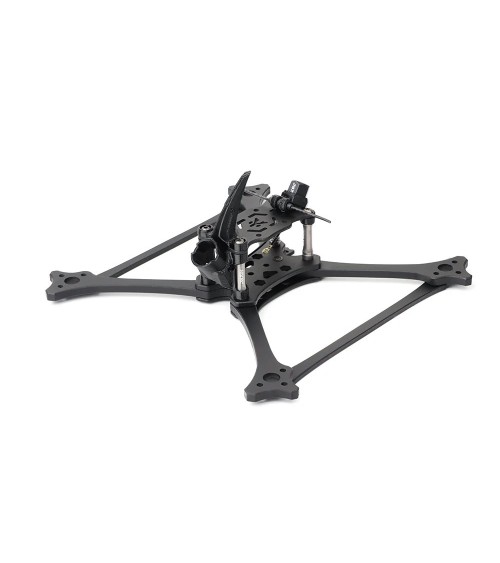

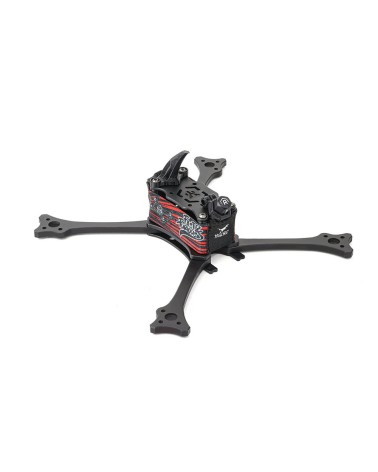

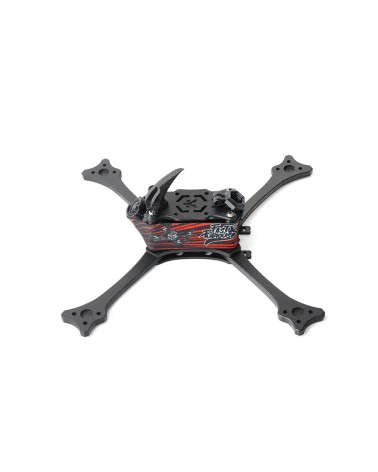

HGLRC Wind5 Lite V2 Frame Kit
€31.45
On order: Delivery 4-5 working days.
The HGLRC Wind5 Lite V2 is a 5-inch positive-X FPV racing frame built from Toray-T700 carbon fibre and 7075 aluminium, weighing 69.5g with single-screw quick-release arms.
A lightweight 5-inch racing frame engineered for FPV competition with tool-minimal maintenance in mind.
The HGLRC Wind5 Lite V2 is a positive-X racing frame designed for 5-inch FPV drone builds. Toray-T700 carbon fibre and 7075 aviation-grade aluminium construction keep weight at 69.5g while providing impact resistance. Single-screw quick-release arms allow damaged components to be swapped without full disassembly, reducing downtime between flights.
Features
- Positive-X layout with 195mm wheelbase
- Toray-T700 carbon fibre and 7075 aviation-grade aluminium construction
- Single-screw quick-release arms for fast field replacement
- Aluminium columns protect camera and electronics stack; reinforced arm protection rods reduce impact damage
- Supports HDZero digital VTX installation on top plate
- FOXEER Predator 5 NANO 45-degree camera mount included as standard
Technical Specifications
- Frame size: 5-inch, positive-X structure
- Material: Toray-T700 carbon fibre, 7075 aviation-grade aluminium
- Wheelbase: 195mm
- Frame dimensions: 172.5mm × 169mm × 70mm
- FC / VTX mounting: 20 × 20mm M3; motor mounting: 16 × 16mm M3
- Plate thickness: top/bottom 2mm, middle 3mm, arms 5mm, protective rods 3mm
- Weight: 69.5g (including printed parts, aluminium columns, and screws)
F42-00718
