The Partizan Edition PT7 V3 Frame is a 7-inch carbon fiber FPV frame designed for larger long-range builds. It features a 320 mm wheelbase, 6 mm arms, standard 30.5 × 30.5 mm flight controller mounting and support for 19 mm micro cameras. The frame is designed around 7040 propellers and 2807-size motors.

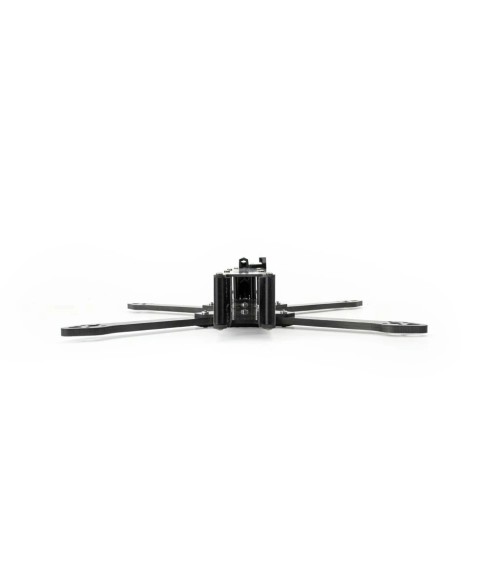

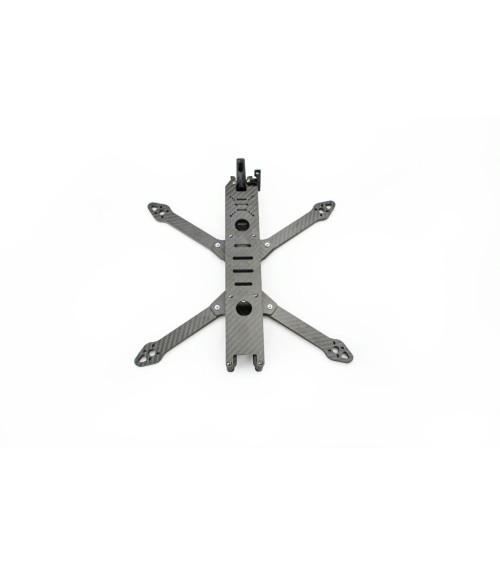

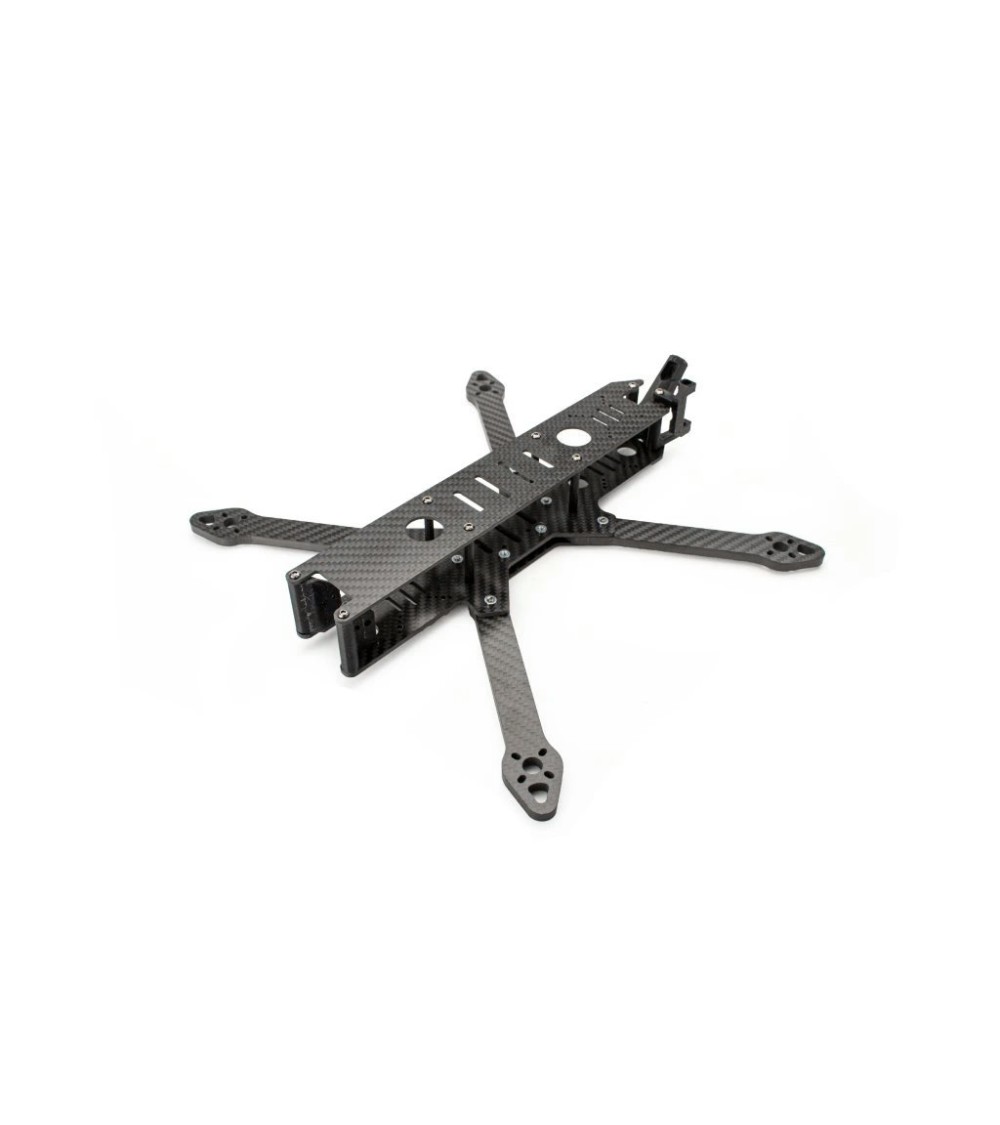

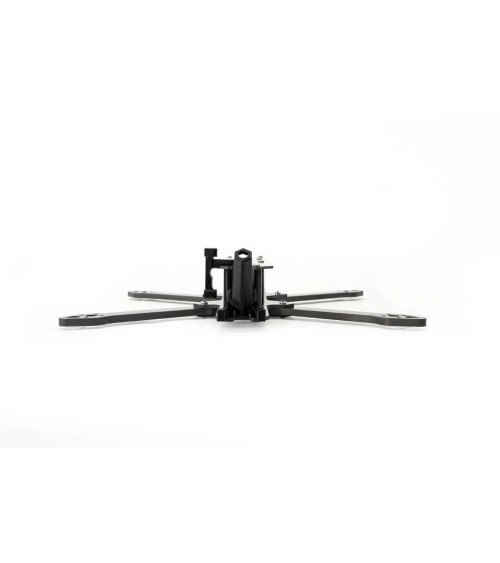

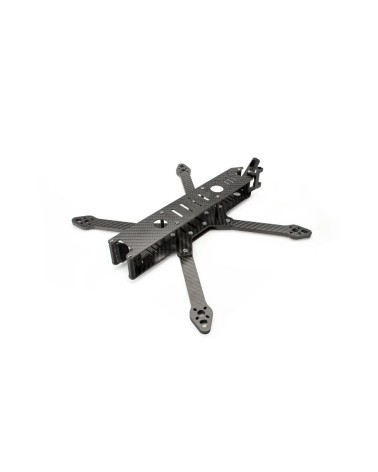

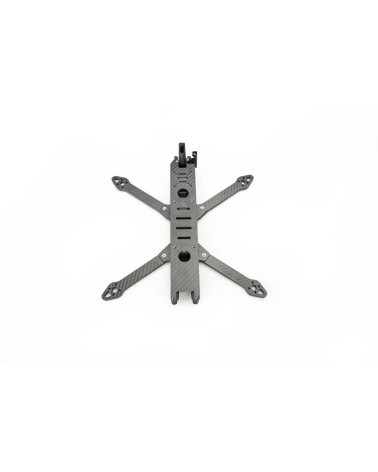

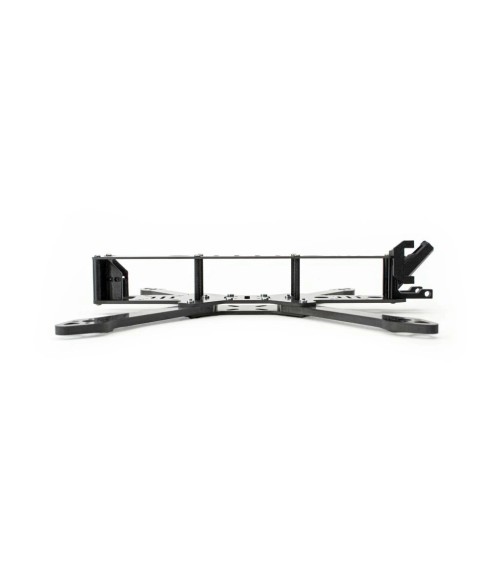

Frame Partizan Edition PT7 V3
€42.62
On order: Delivery 4-5 working days.
The Partizan Edition PT7 V3 Frame is a 7-inch carbon fiber FPV frame designed for larger long-range builds. It features a 320 mm wheelbase, 6 mm arms, standard 30.5 × 30.5 mm flight controller mounting and support for 19 mm micro cameras. The frame is designed around 7040 propellers and 2807-size motors.
The Partizan Edition PT7 V3 Frame is a 7-inch carbon fiber FPV frame designed as a strong foundation for custom long-range drone builds.
Carbon Fiber Construction
The PT7 V3 is made from carbon fiber and features 6 mm thick arms. The top plate is 2 mm thick, while the bottom plate is 3 mm thick.
7-Inch FPV Platform
The frame has a 320 mm wheelbase and is designed for 7040 propellers and 2807-size motors.
Electronics & Camera Mounting
A standard 30.5 × 30.5 mm FC mounting pattern provides compatibility with suitable flight controllers, while the frame supports 19 mm micro cameras.
Recommended Components
Flight Controller: F405 V4 ICM42688P
ESC: AM32 60A 4-in-1 ESC
Motor: 2807 1300KV
Camera: Ratel2 Night Version / Ratel Pro / H1
VTX: 5.8GHz 2.5W
Receiver: ELRS 915MHz
Antenna: RHCP SMA 160 mm
Propellers: 7040 3-blade
Battery: 6S 8000mAh LiPo
Specifications
Model: PT7 V3
Size: 7 inch
Material: Carbon fiber
Wheelbase: 320 mm
Arm thickness: 6 mm
Top plate: 45 × 270 mm
Top plate thickness: 2 mm
Bottom plate: 45 × 270 mm
Bottom plate thickness: 3 mm
Camera mounting: 19 mm
FC mounting holes: 30.5 × 30.5 mm
Propeller size: 7040
Compatible motor size: 2807
Note: the listed electronics, motors, propellers and battery are recommended components, not stated as included with the frame.
