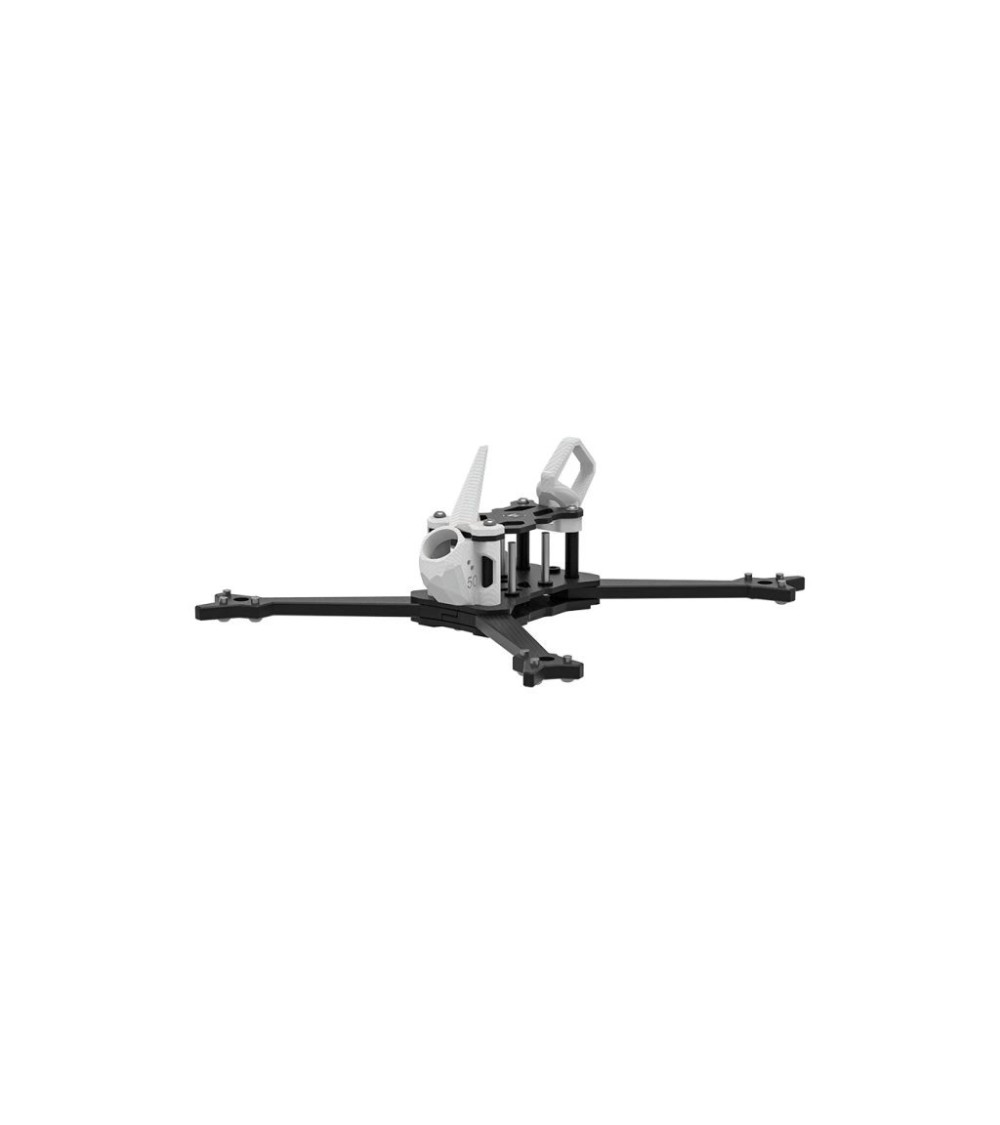

The iFlight Mach R5 Ultra is a 5-inch carbon fiber FPV racing frame with a 190 mm wheelbase, weighing 92 g.
Frame iFlight Mach R5 Sport Ultra version
€46.69
On order: Delivery 4-5 working days.
The iFlight Mach R5 Ultra is a 5-inch carbon fiber FPV racing frame with a 190 mm wheelbase, weighing 92 g.
The lightest configuration in the Mach R5 family — built for weight-conscious racing builds.
The iFlight Mach R5 Ultra Race Frame Kit is a 5-inch carbon fiber FPV frame optimized for competitive racing. At 92 g with a 190 mm wheelbase, it is the lightest variant in the Mach R5 Sport/Ultra lineup. The rigid structure accommodates standard 20×20 mm electronics stacks and supports motors in the 22xx–25xx range.
Features
- Carbon fiber construction with 5 mm arms for rigidity at minimal weight.
- Compact 190 mm wheelbase; frame dimensions 169 × 161 × 35 mm.
- FC and VTX mounting: 20×20 mm / Ø3 mm; max stack and VTX height 23 mm.
- Motor mounting: 16×16 mm / Ø3 mm; compatible with 22xx–25xx motors.
- Includes battery straps, TPU set, anti-slip battery pads, motor wire shield tubes, and screw bag.
Technical Specifications
- Wheelbase: 190 mm
- Frame dimensions: 169 × 161 × 35 mm
- Arm thickness: 5 mm
- Top / upper / bottom plate thickness: 2 mm each
- FC mounting: 20×20 mm / Ø3 mm
- VTX mounting: 20×20 mm / Ø3 mm
- Motor mounting: 16×16 mm / Ø3 mm
- Max flight stack height: 23 mm
- Weight: 92 g
