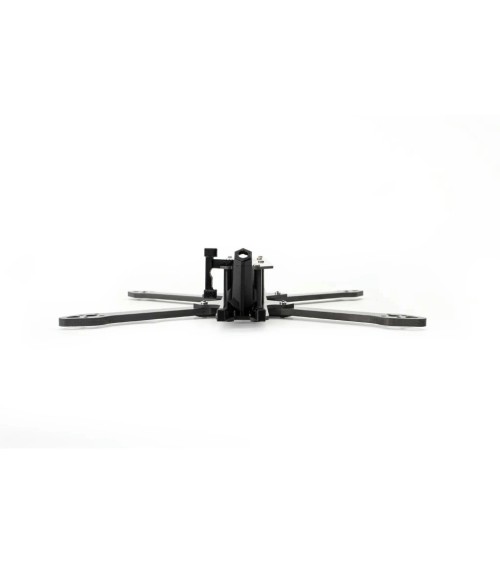

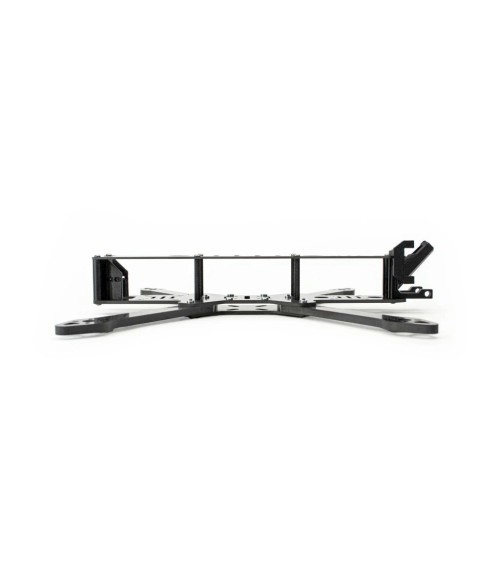

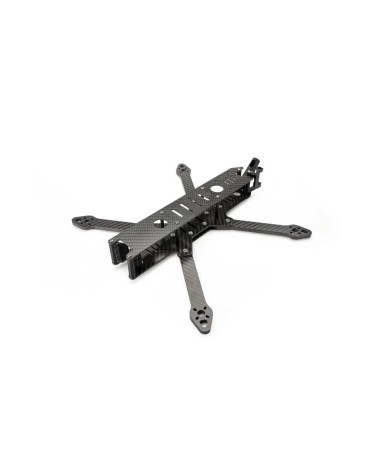

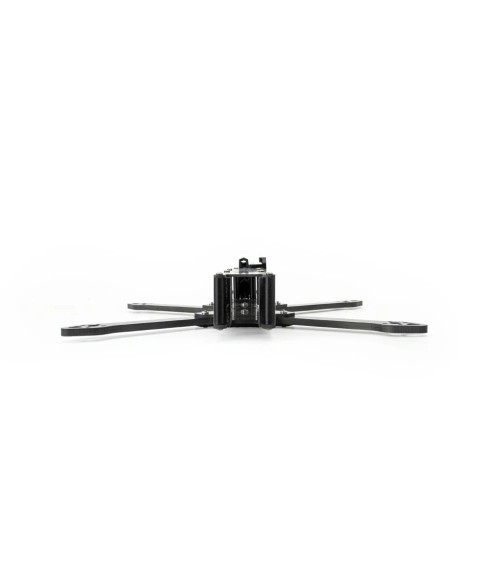

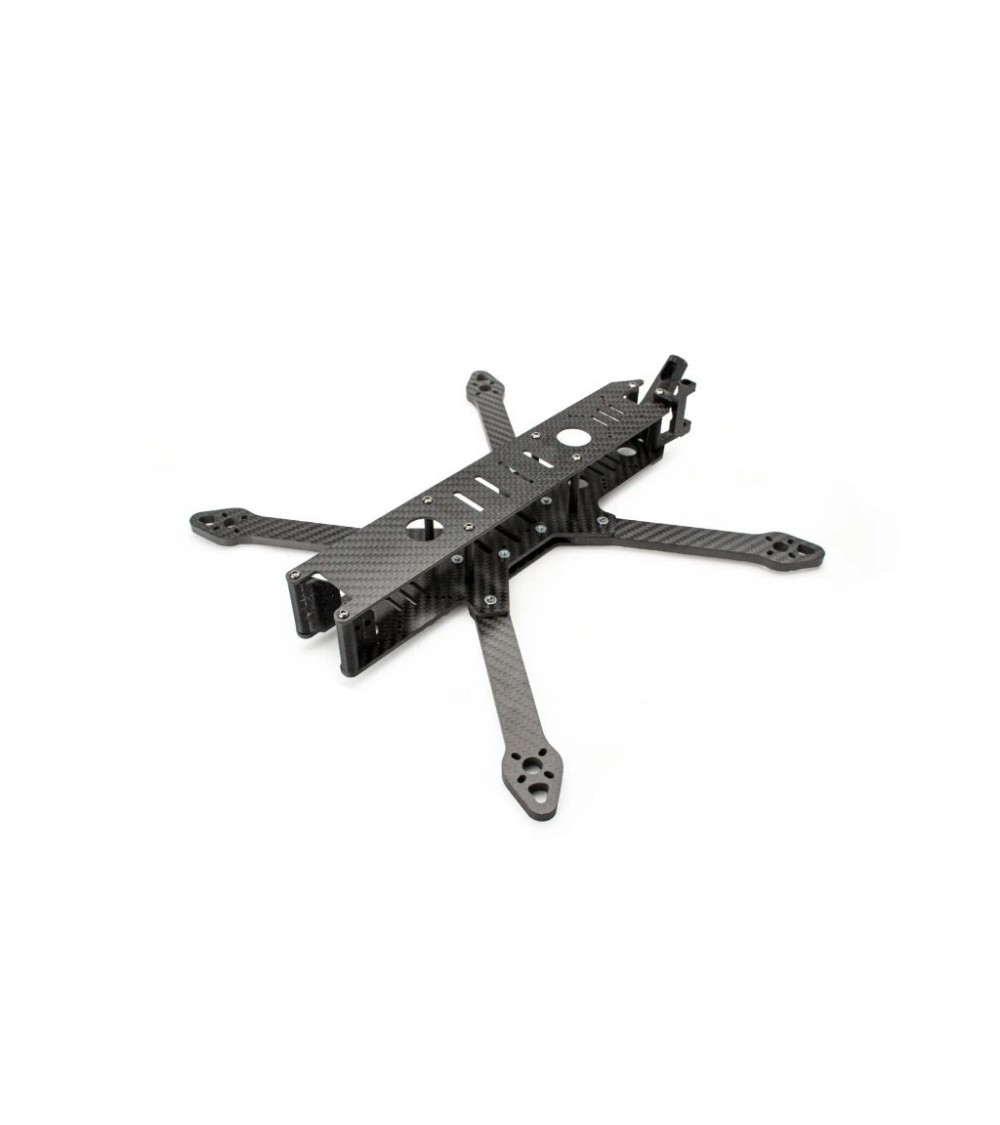

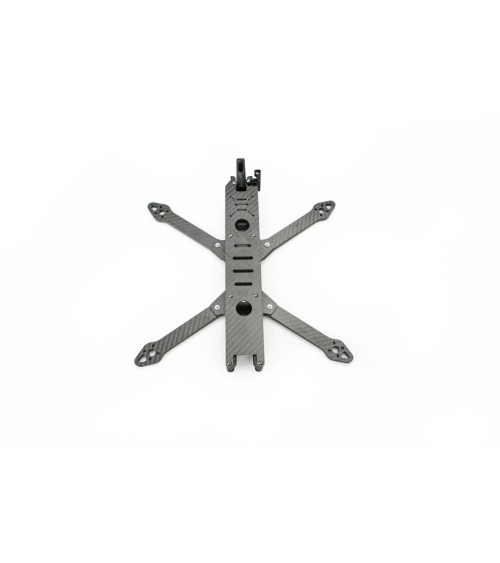

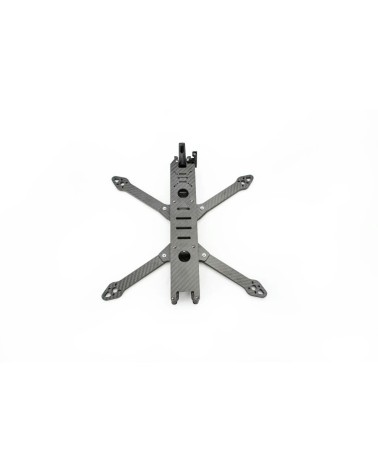

Frame Partizan Edition PT8 V3

The Partizan Edition PT8 V3 Frame is an 8-inch carbon fiber FPV frame designed for larger custom drone builds. Its rigid construction, 6 mm arms and standard electronics mounting pattern provide a solid base for a powerful FPV setup.

Carbon Fiber Construction
The frame is made from carbon fiber and features 6 mm thick arms. The top and bottom plates are designed to provide a rigid structure for the build.

360 mm Wheelbase
The PT8 V3 has a 360 mm wheelbase and is designed around an 8-inch FPV configuration.

Standard Electronics Mounting
The frame supports a 30.5 × 30.5 mm flight controller mounting pattern and 19 mm micro cameras.

Recommended Components

• Flight Controller: F405 V4 ICM42688P

• ESC: AM32 60A 4-in-1 ESC

• Motor: 2812 1100KV

• Camera: Ratel2 Night Version / Ratel Pro / H1

• VTX: 5.8GHz 2.5W

• Receiver: ELRS 915MHz

• Antenna: RHCP SMA 160 mm

• Propellers: 8060 3-blade

• Battery: 6S 10000mAh LiPo

Specifications

• Model: PT8 V3

• Wheelbase: 360 mm

• Arm thickness: 6 mm

• Top plate length: 267 mm

• Top plate thickness: 2 mm

• Bottom plate length: 267 mm

• Bottom plate thickness: 3 mm

• Camera mounting size: 19 mm

• FC mounting holes: 30.5 × 30.5 mm

• Compatible motor size: 2812

• Propeller size: 8060

• Material: Carbon fiber

Package Includes

• 1 × PT8 V3 Frame Kit

• 1 × Aluminum Column Kit

• 1 × Screw Kit

• 1 × Nut Kit

• 1 × Printed Parts Kit

• 1 × PT Battery Pad

• 2 × 8-inch Battery Straps

Note: the electronic components, motors, propellers and battery listed above are recommended parts and are not included with the frame.
