The Partizan Edition PT13 Frame is a large FPV drone frame with 8 mm arms, a 507 × 403 × 52 mm overall size and 30.5 mm flight controller mounting holes. Weighing approximately 600 g, it is designed for larger FPV builds using components such as 6S power systems, 13-inch propellers and long-range radio equipment.

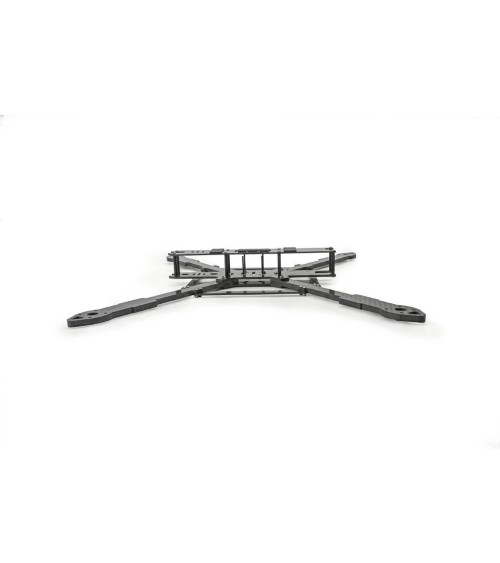

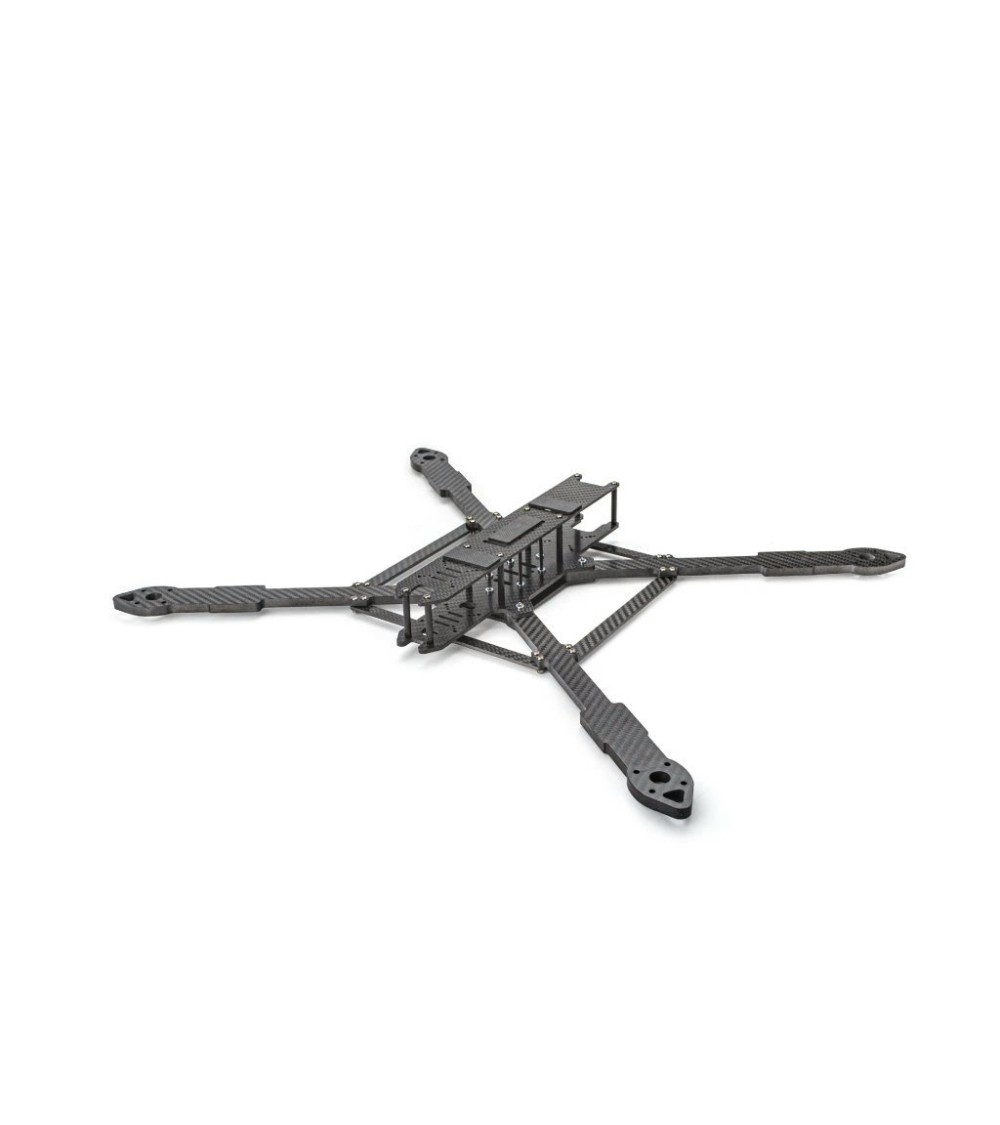

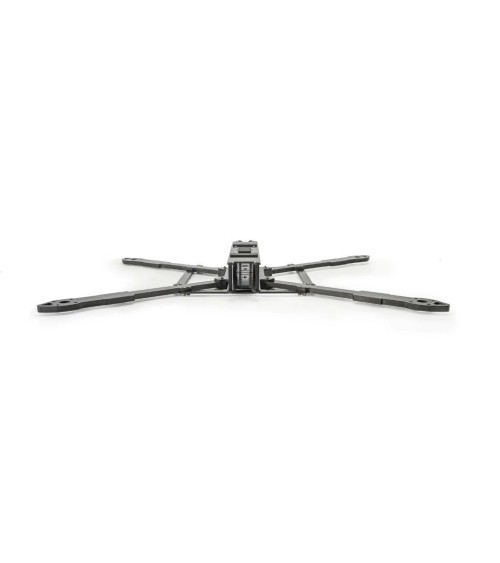

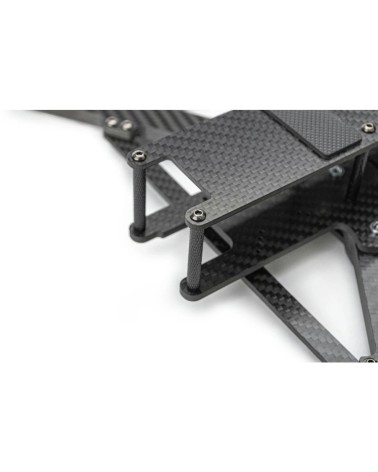

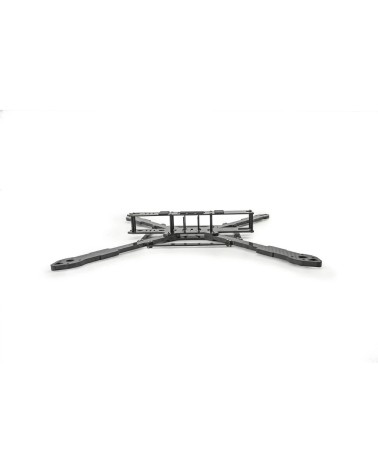

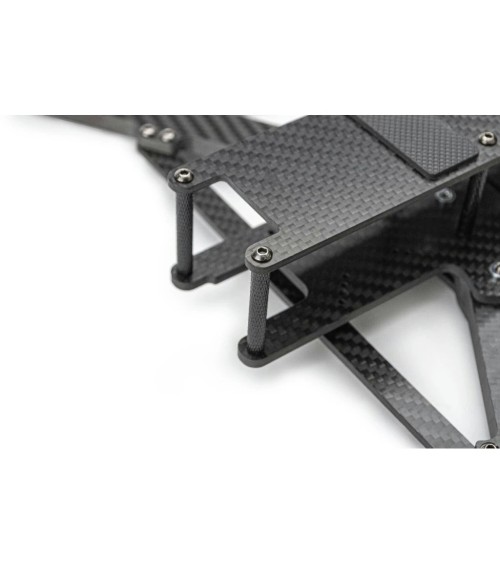

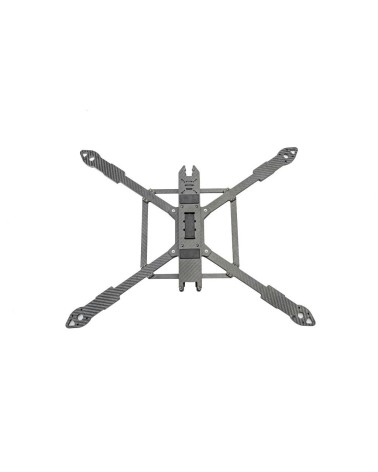

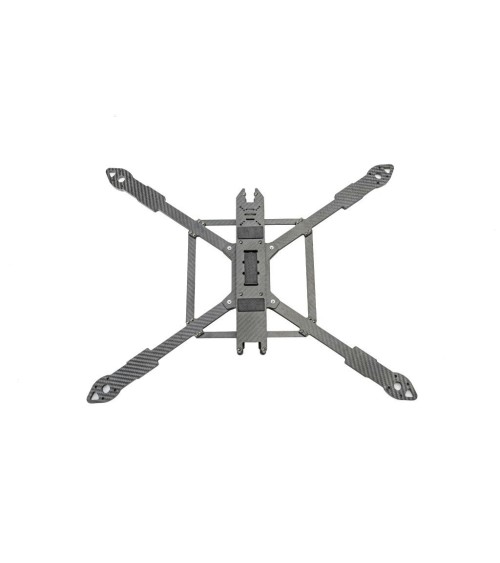

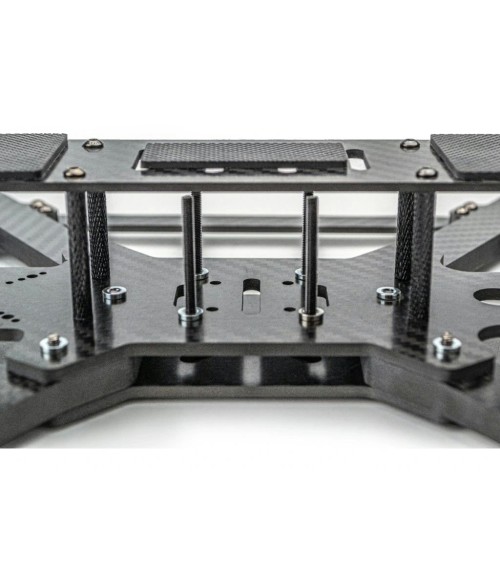

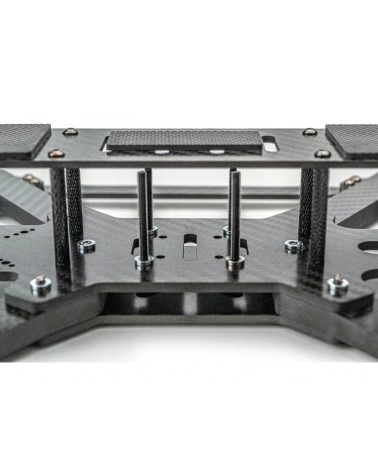

Frame Partizan Edition PT13
€77.02
On order: Delivery 4-5 working days.
The Partizan Edition PT13 Frame is a large FPV drone frame with 8 mm arms, a 507 × 403 × 52 mm overall size and 30.5 mm flight controller mounting holes. Weighing approximately 600 g, it is designed for larger FPV builds using components such as 6S power systems, 13-inch propellers and long-range radio equipment.
The Partizan Edition PT13 Frame is a large-format FPV drone frame designed as the foundation for a powerful custom build. Its 8 mm arms provide a robust structure, while the frame dimensions of 507 × 403 × 52 mm offer space for larger components.
Heavy-Duty Frame Construction
The PT13 features 8 mm thick arms and weighs approximately 0.6 kg.
Flight Controller Mounting
The frame supports 30.5 mm flight controller mounting holes, suitable for compatible FC and ESC setups.
Recommended Setup
The following components are recommended for a PT13 build:
Flight Controller: F405 V4 ICM42688P / F722
ESC: AM32 80A 4-in-1 ESC
Motor: 4214 660KV
Camera: Ratel2 Night Version / Ratel Pro
VTX: 4.9–6.2 GHz 3W
Receiver: ELRS 915MHz Diversity
Antenna: RHCP SMA 160 mm
Propellers: 1309 3-blade
Battery: 6S 30000mAh Semi-Solid Battery
Specifications
Model: Partizan Edition PT13
Arm thickness: 8 mm
Dimensions: 507 × 403 × 52 mm
FC mounting holes: 30.5 mm
Weight: approx. 600 g
Please note: the listed electronic components, motors, propellers and battery are recommended parts only and are not stated as included with the frame.
