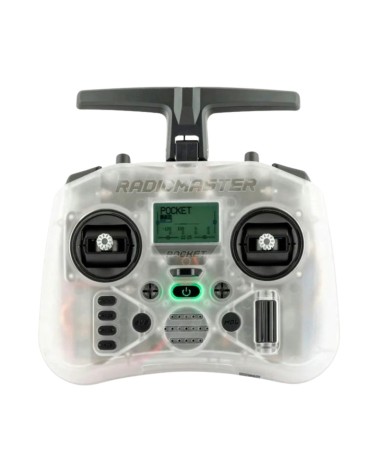

Radio Controller RadioMaster Pocket ExpressLRS Transparent

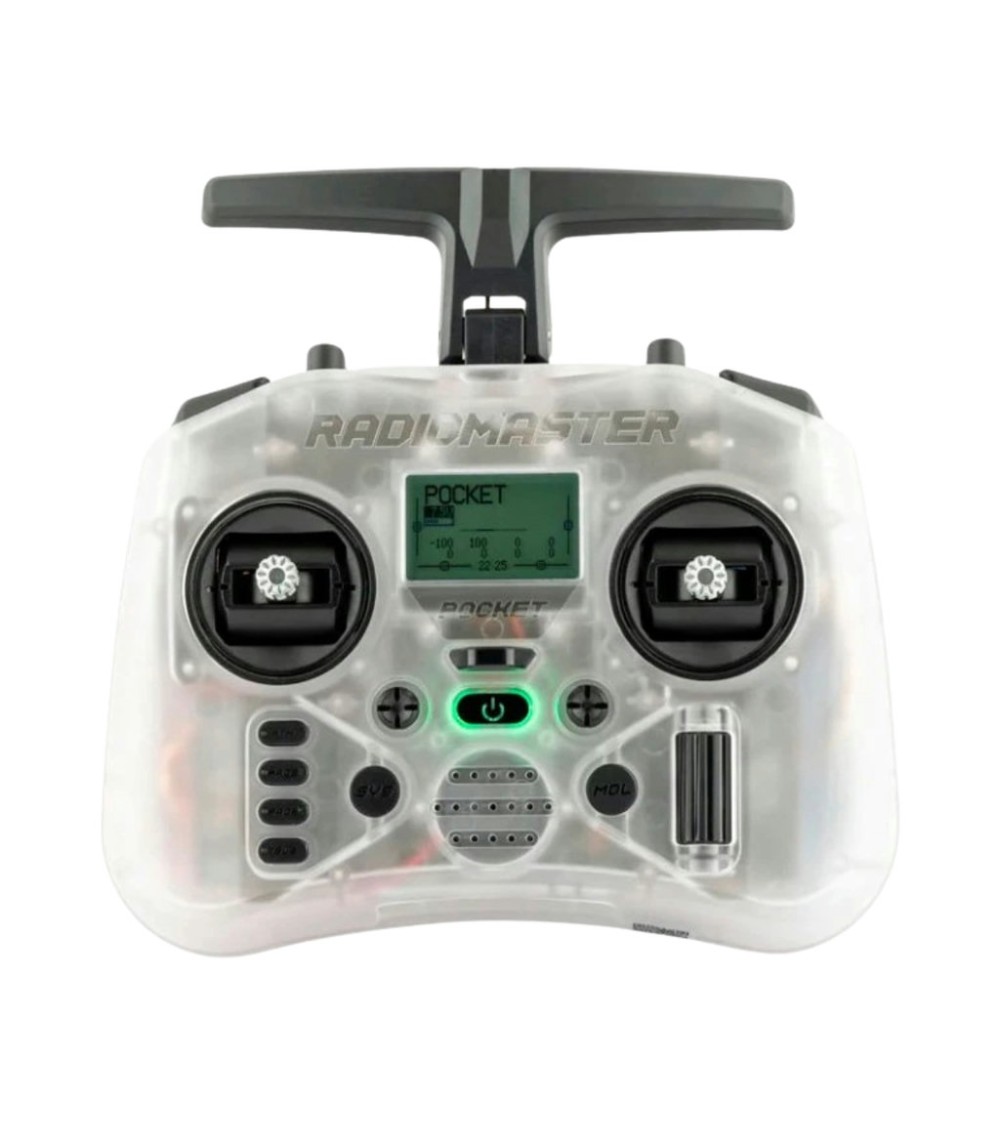

The RadioMaster Pocket ExpressLRS Transparent is a compact radio controller designed for use with ExpressLRS-compatible drones and RC models. It features a built-in ExpressLRS 2.4GHz RF system, EdgeTX operating software, X5 Hall-effect gimbals and a 128 × 64 monochrome LCD. The transparent case, foldable antenna and removable stick ends make it a practical choice for pilots who need a portable and capable controller.

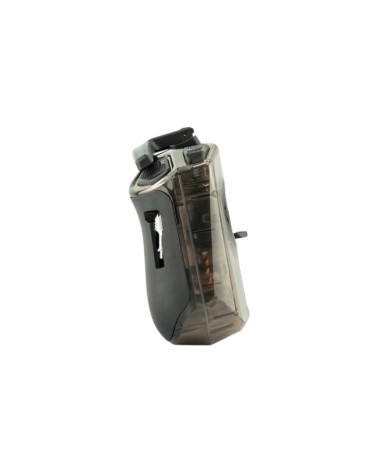

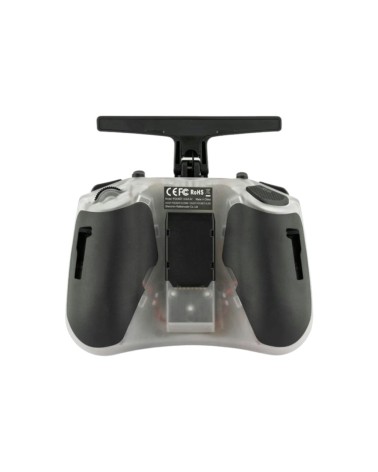

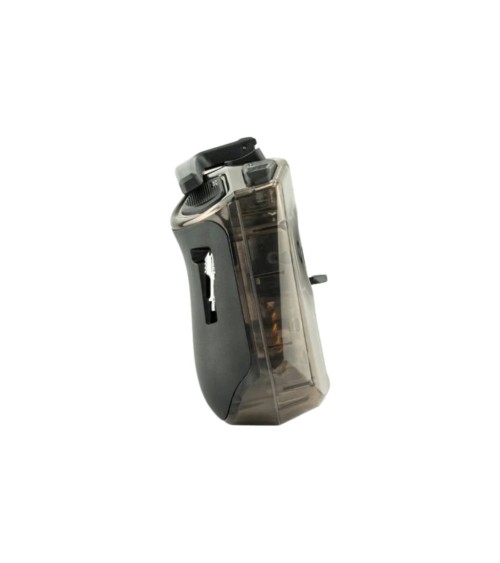

Compact & Portable Design

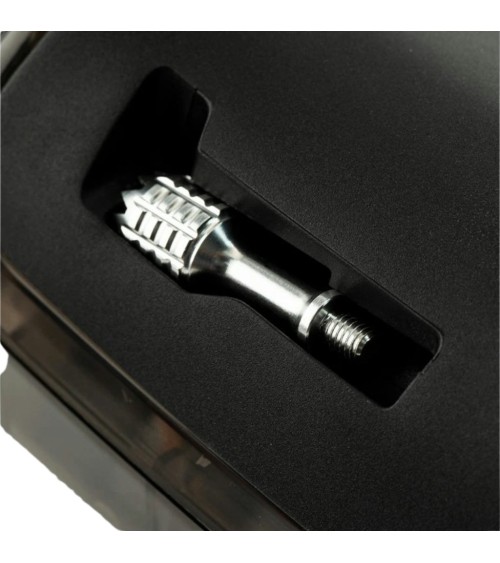

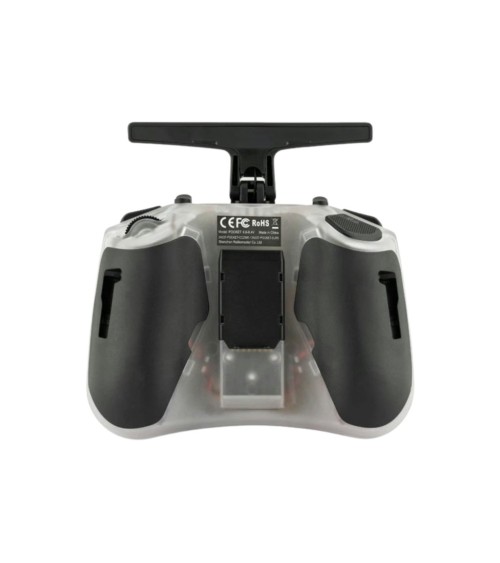

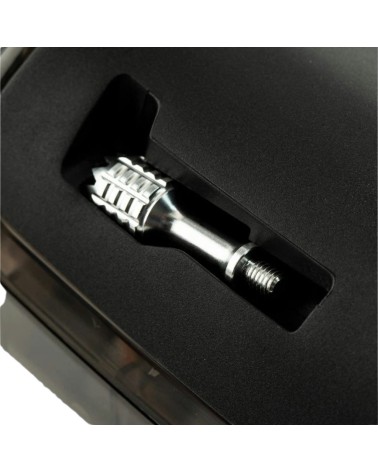

The foldable antenna and removable stick ends reduce the controller's footprint for storage and transport. The transparent case gives a clear view of the internal components. Folded dimensions are 156.6 × 65.1 × 125.3 mm and the controller weighs 288 g.

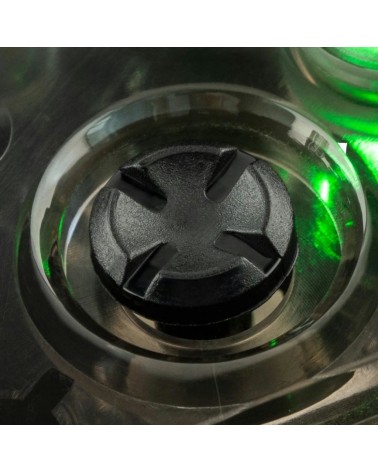

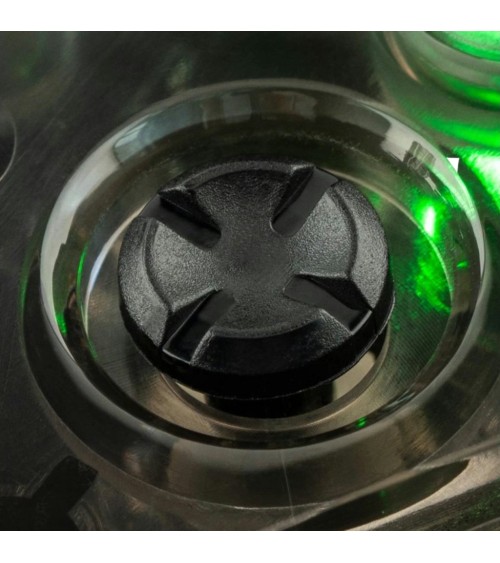

X5 Hall-Effect Gimbals

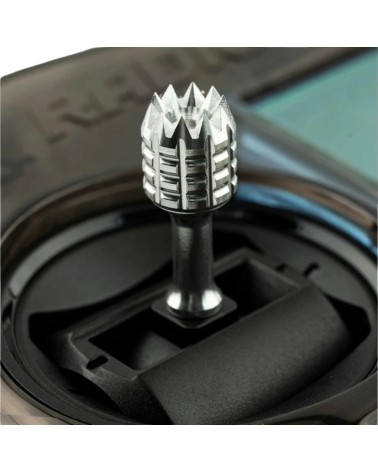

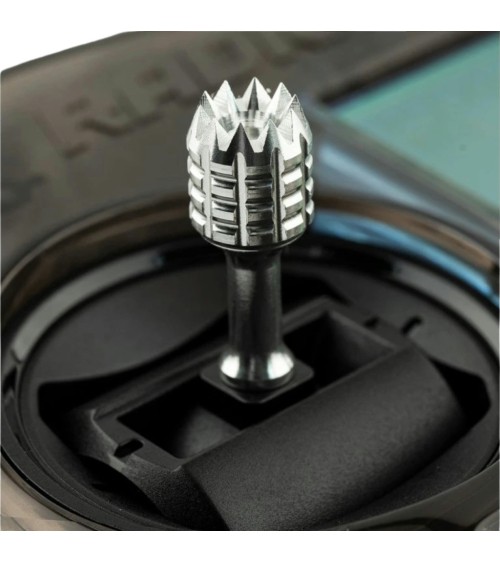

The X5 quad ball-bearing Nano Hall-effect gimbals use contact-free magnetic position sensing, delivering smooth self-centring and precise control input without the wear associated with traditional potentiometer-based sticks.

ExpressLRS 2.4GHz RF System

The integrated ExpressLRS 2.4GHz module operates across 2.400–2.480 GHz and connects directly to any compatible ExpressLRS receiver. The controller supports up to 16 channels, with the exact channel count depending on the receiver used. A Nano-size module bay is also available for alternative external RF modules.

Screen & Software

The controller runs EdgeTX and features a 128 × 64 monochrome LCD for accessing model settings, mixer configuration and controller parameters.

Battery & Charging

Power is provided by two 18650 batteries (not included), operating at 6.6–8.4 V DC. Compatible batteries can be charged directly inside the controller via the built-in USB-C QC3 charging port.

Specifications

• Model: RadioMaster Pocket Radio Controller
• Colour: Transparent
• Internal RF system: ExpressLRS 2.4GHz
• Operating frequency: 2.400–2.480 GHz
• Operating system: EdgeTX
• Control channels: Up to 16, receiver dependent
• Display: 128 × 64 monochrome LCD
• Gimbals: X5 Hall-effect, quad ball-bearing Nano gimbals
• Operating voltage: 6.6–8.4 V DC
• Battery requirement: 2 × 18650 batteries (not included)
• Charging: Built-in USB-C QC3
• Module bay: Nano size
• Folded dimensions: 156.6 × 65.1 × 125.3 mm
• Unfolded dimensions: 156.6 × 73.1 × 154.8 mm
• Weight: 288 g

Package Includes

• 1 × RadioMaster Pocket Radio Controller
• 1 × Custom carry pouch
• 1 × USB-C cable

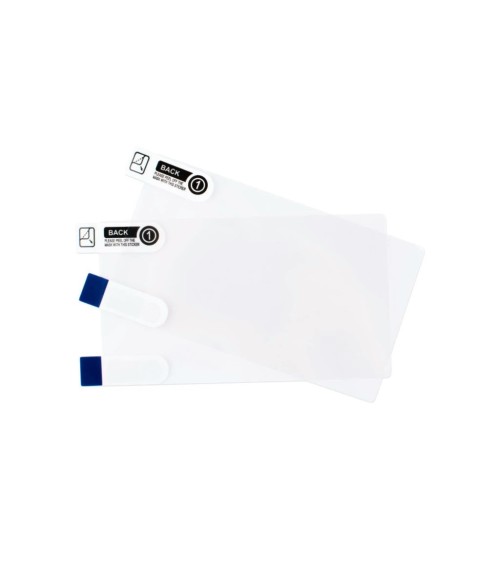

• 1 × Screen protector
• 1 × Sticker
• 4 × Low-tension spring
• 1 × Manual
