The HGLRC Petrel 75Whoop V2 is a polycarbonate CineWhoop frame for 1S/2S indoor FPV builds, featuring a reinforced V2 rib structure and a 75mm wheelbase.
HGLRC Petrel 75Whoop V2 1S FPV Frame
€15.24
On order: Delivery 4-5 working days.
The HGLRC Petrel 75Whoop V2 is a polycarbonate CineWhoop frame for 1S/2S indoor FPV builds, featuring a reinforced V2 rib structure and a 75mm wheelbase.
A lightweight 75mm CineWhoop frame built for compact indoor FPV builds, with an upgraded structure for improved crash resistance.

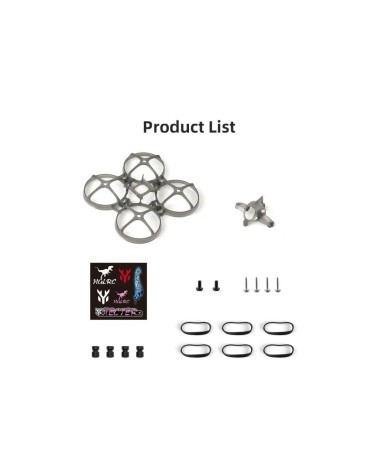

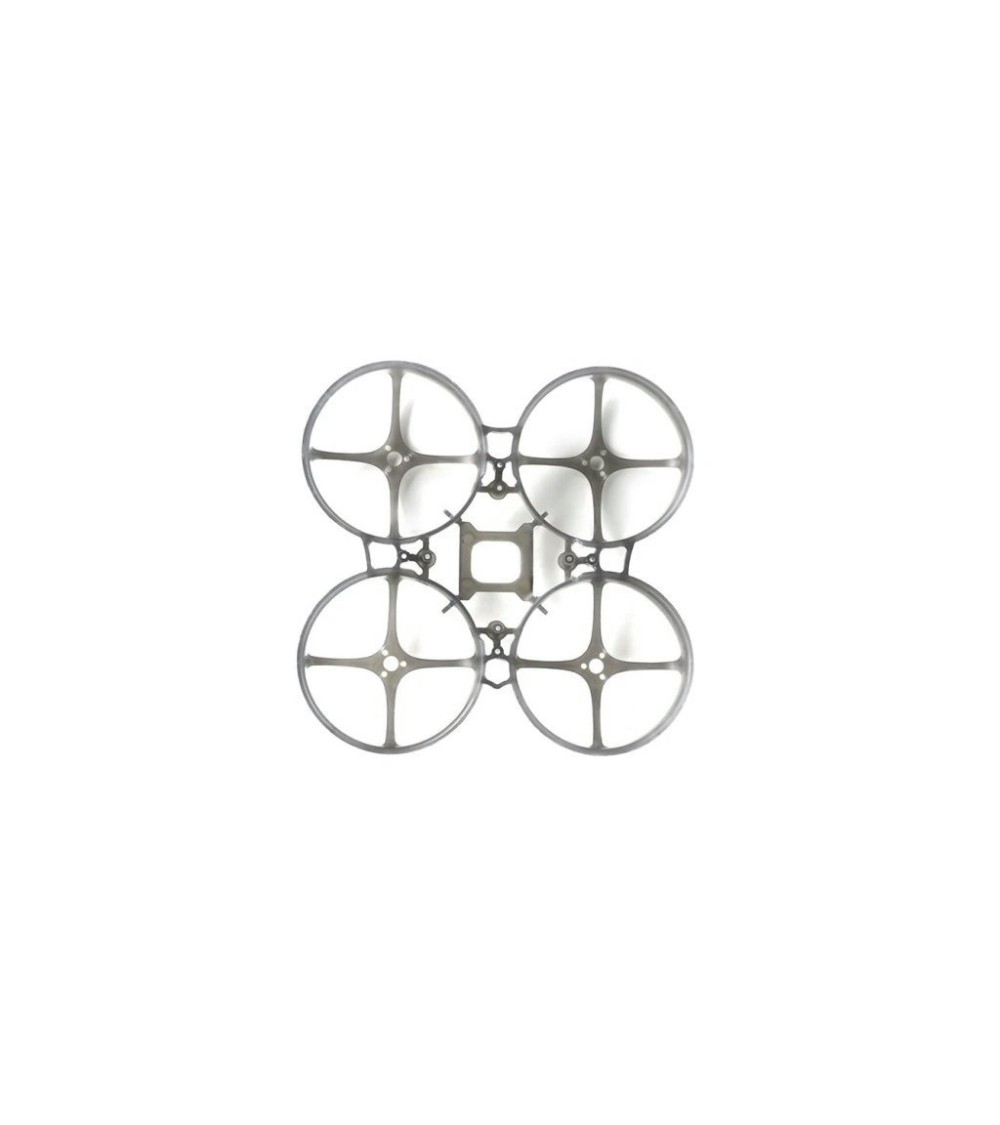

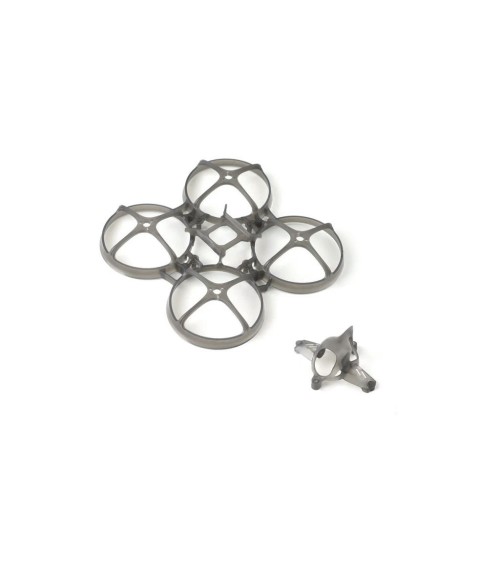

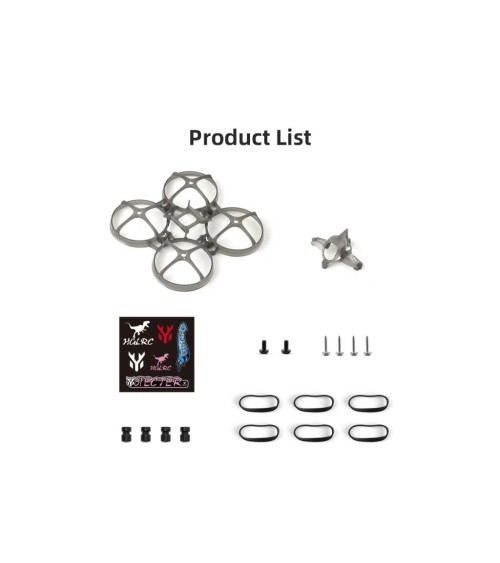

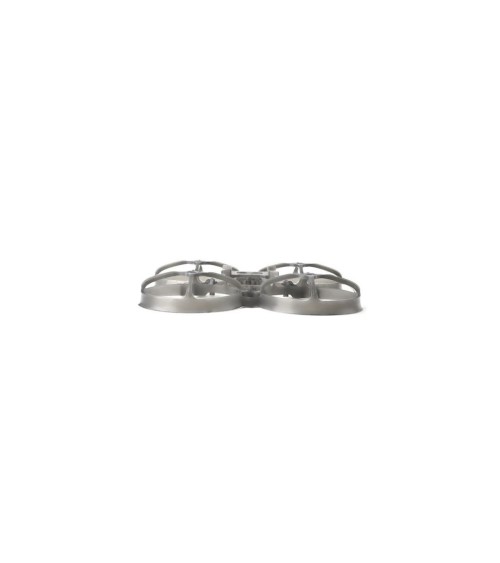

The HGLRC Petrel 75Whoop V2 is a transparent gray polycarbonate frame designed for minimal all-up weight in indoor FPV applications. The V2 rib design improves structural rigidity over the original, and the package includes the frame, canopy, mounting hardware, shock-absorbing balls, and rubber battery bands.
Features
- Reinforced V2 rib design for improved structural strength and crash resistance.
- 75mm wheelbase with 100mm × 100mm overall footprint.
- 25.5mm × 25.5mm flight controller mounting pattern.
- Compatible with 14mm cameras and SPECTER 0802, 1002, and 1003 series motors.
- Rubber band battery mounting supports 1S or 2S batteries.
- Transparent gray polycarbonate construction.
Technical Specifications
- Material: Polycarbonate
- Wheelbase: 75mm
- Frame size: 100mm × 100mm
- FC mounting holes: 25.5mm × 25.5mm
- Motor mounting holes: Φ6 × 3mm
- Camera compatibility: 14mm
- Supported motors: SPECTER 0802 / 1002 / 1003
- Supported battery: 1S or 2S
- Frame weight: 5.52g | Frame + canopy: 6.9g
