The Partizan Edition PT10 V3 Frame is a 10-inch long-range FPV frame built from T300 carbon fiber. It features a 427 mm wheelbase, 7 mm thick arms, support for 30.5 × 30.5 mm and 20 × 20 mm electronics mounting, and a total weight of 373 g. Designed for larger FPV builds, it provides a solid platform for cruising, mapping and endurance-focused setups.

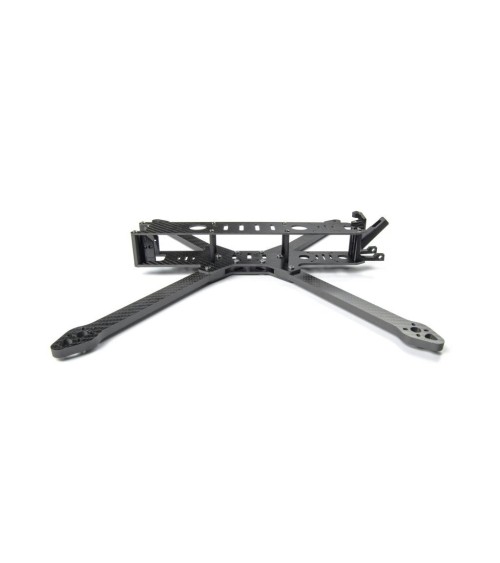

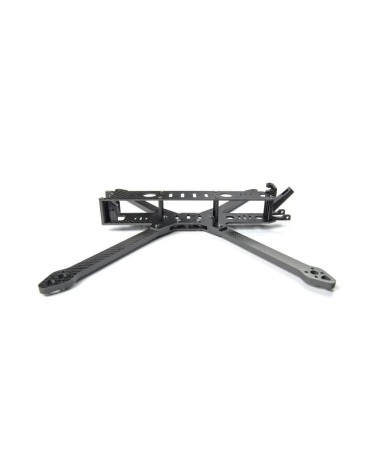

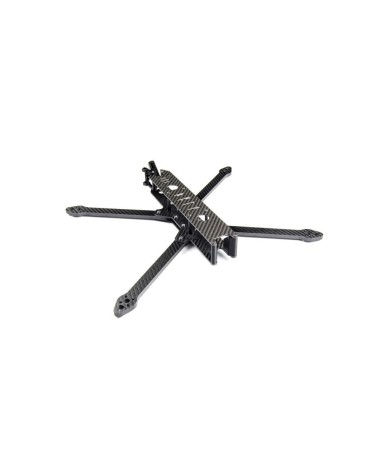

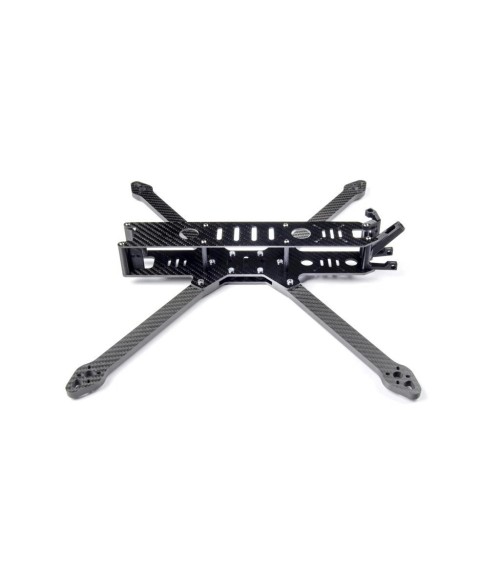

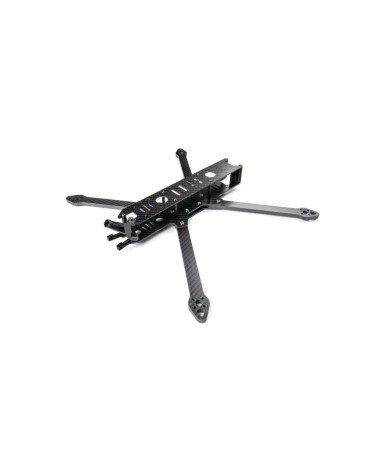

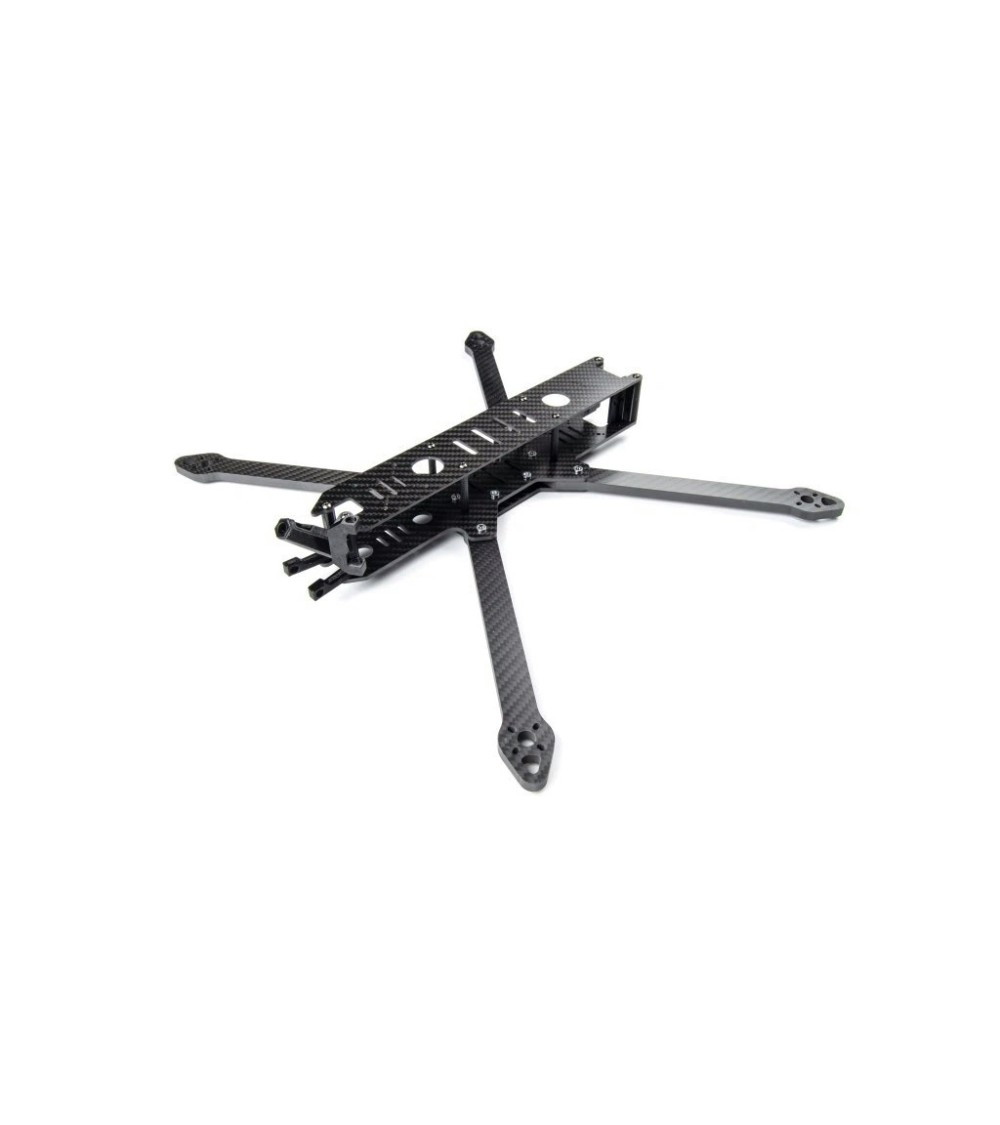

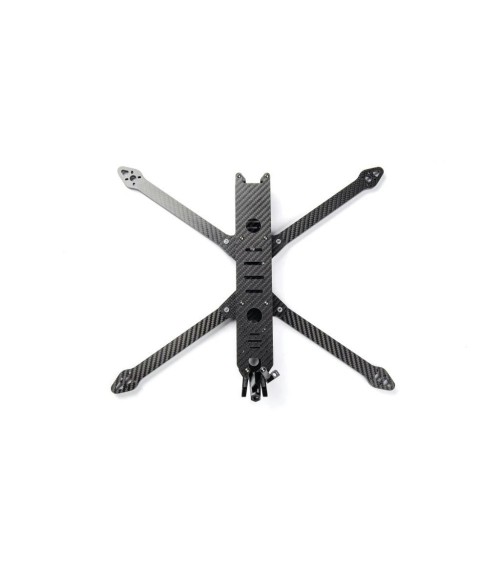

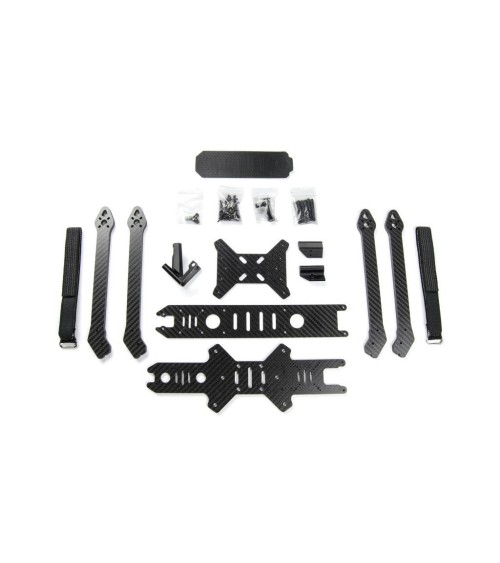

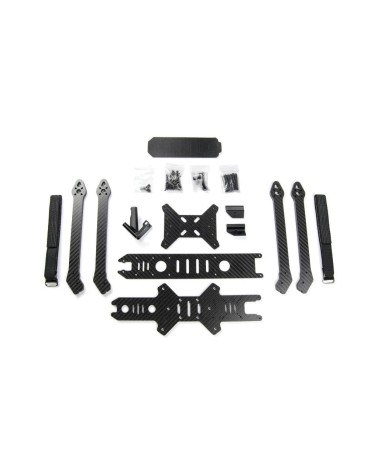

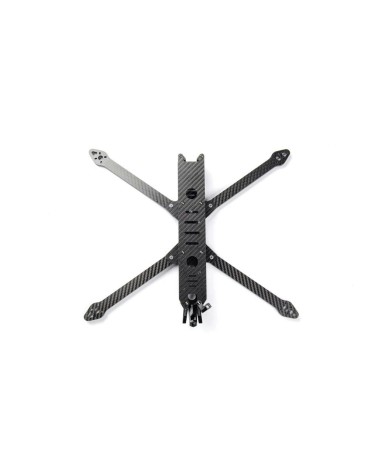

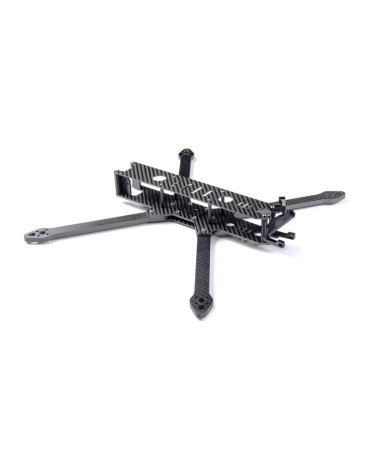

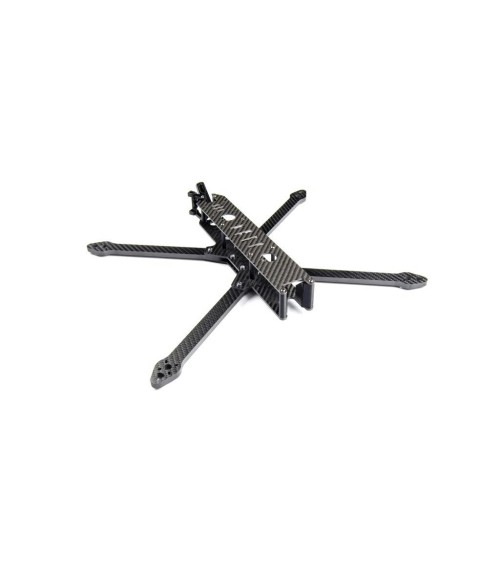

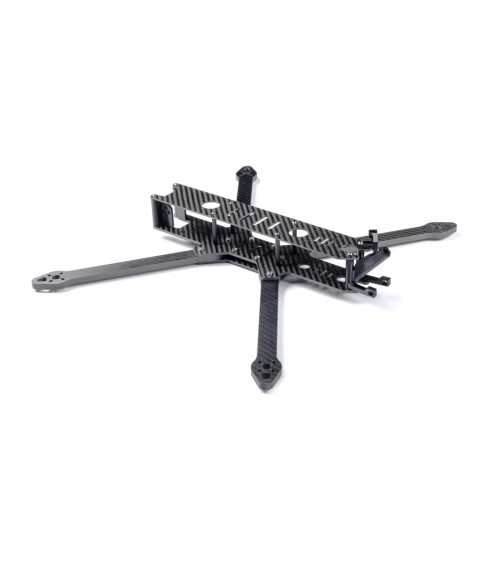

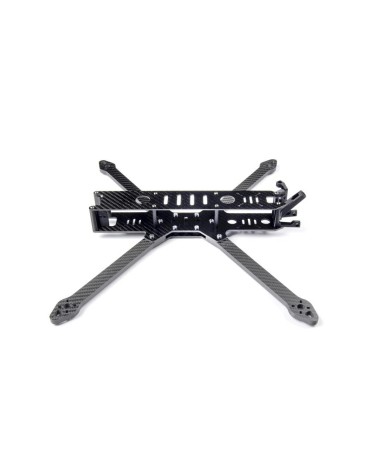

Frame Partizan Edition PT10 V3
€54.83
On order: Delivery 4-5 working days.
The Partizan Edition PT10 V3 Frame is a 10-inch long-range FPV frame built from T300 carbon fiber. It features a 427 mm wheelbase, 7 mm thick arms, support for 30.5 × 30.5 mm and 20 × 20 mm electronics mounting, and a total weight of 373 g. Designed for larger FPV builds, it provides a solid platform for cruising, mapping and endurance-focused setups.
The Partizan Edition PT10 V3 Frame is a 10-inch FPV frame designed for long-range, cruising and endurance-oriented drone builds. Its T300 carbon construction and reinforced geometry provide a strong base for larger FPV components.
T300 Carbon Construction
The frame is manufactured from T300 carbon fiber and uses 7 mm thick arms. The bottom plate is 3 mm thick, providing a reinforced structure for larger builds.
10-Inch Long-Range Platform
The PT10 V3 has a 427 mm wheelbase and is designed for 10-inch propellers. ProDroneParts lists compatibility with 3115-size motors.
Flexible Electronics Mounting
The frame supports 30.5 × 30.5 mm and 20 × 20 mm mounting patterns, providing options for compatible flight controllers and ESCs.
Camera Mounting
A 19 mm micro-camera mount is provided for compatible FPV cameras.
Specifications
Model: Partizan Edition PT10 V3
Material: T300 carbon fiber
Size: 10 inch
Wheelbase: 427 mm
Arm thickness: 7 mm
Dimensions: 373 × 321 × 63 mm
Top plate thickness: 2 mm
Bottom plate thickness: 3 mm
FC mounting: 30.5 × 30.5 mm / 20 × 20 mm
Camera mount: 19 mm Micro
Compatible motor size: 3115
Weight: 373 g
