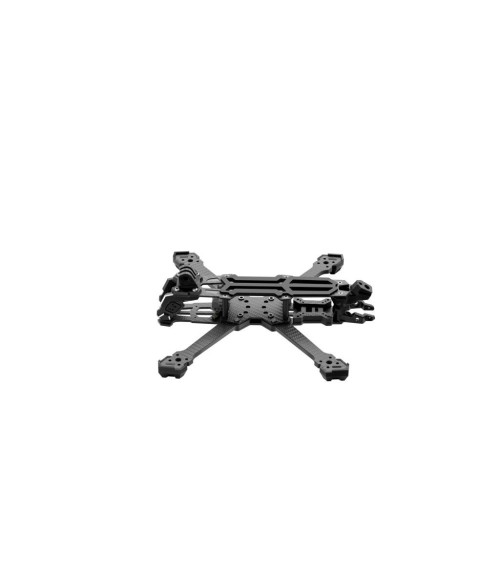

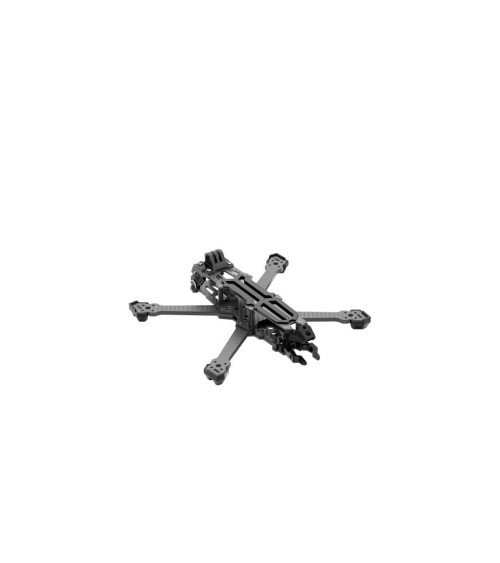

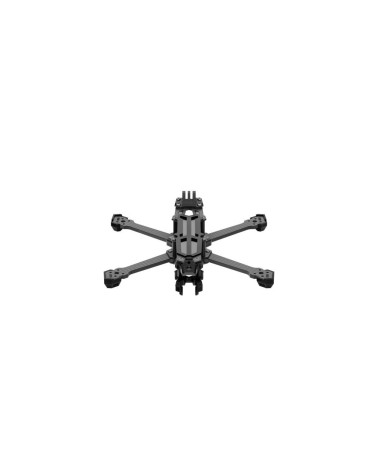

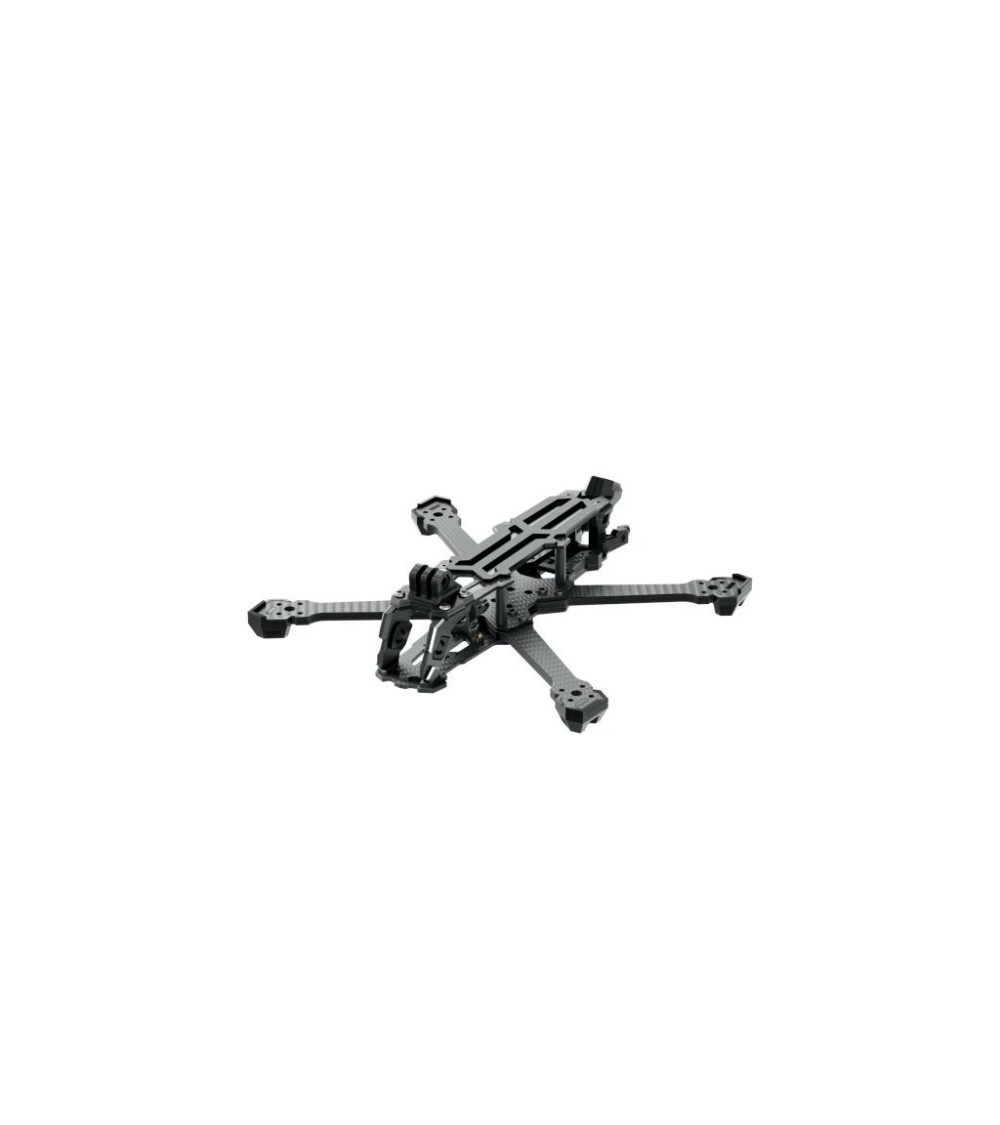

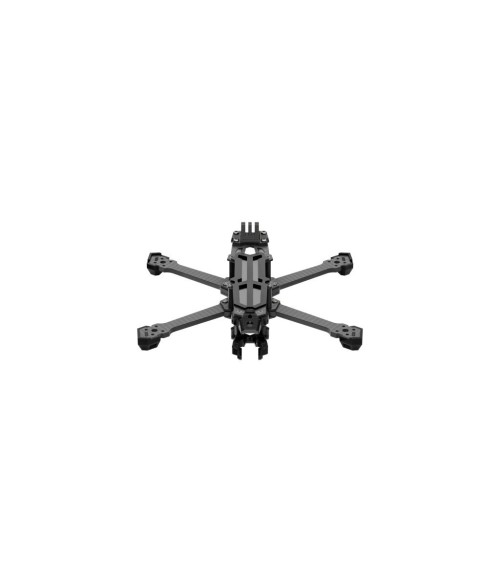

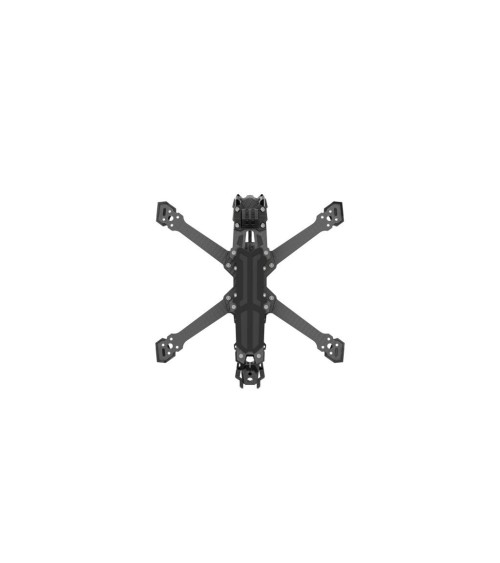

The GEPRC GEP-Vapor-X5 Frame is a 5-inch freestyle FPV frame with a 230 mm wheelbase and a wide X-frame design focused on stability and maneuverability. It features 5 mm carbon fiber arms, reinforced camera protection and multiple FC and VTX mounting options. The frame weighs approximately 185.6 g ±2 g.
Frame GEPRC Vapor-X5 Analog
€52.42
On order: Delivery 4-5 working days.
The GEPRC GEP-Vapor-X5 Frame is a 5-inch freestyle FPV frame with a 230 mm wheelbase and a wide X-frame design focused on stability and maneuverability. It features 5 mm carbon fiber arms, reinforced camera protection and multiple FC and VTX mounting options. The frame weighs approximately 185.6 g ±2 g.
The GEPRC GEP-Vapor-X5 Frame is designed for 5-inch freestyle FPV builds. Its wide X-frame layout combines maneuverability with a rigid structure, while the reinforced camera side panels and front guard provide additional protection around the camera area.
Strong Carbon Fiber Arms
The frame uses 5 mm thick carbon fiber arms to increase overall rigidity. A quick-release design is intended to make assembly, repairs and maintenance easier.
Flexible Electronics Mounting
The frame supports 20 × 20 mm and 30.5 × 30.5 mm FC mounting, while VTX mounting options include 20 × 20 mm, 25 × 25 mm and 30.5 × 30.5 mm. Motor mounting is 16 × 16 mm, and compatible camera mounting sizes are 19 mm and 20 mm.
Specifications
Model: GEP-Vapor-X5 Frame; wheelbase: 230 mm; top plate thickness: 2.0 mm; middle plate thickness: 2.0 mm; arm thickness: 5.0 mm; bottom plate thickness: 2.5 mm; FC mounting: 20 × 20 / 30.5 × 30.5 mm; VTX mounting: 20 × 20 / 25 × 25 / 30.5 × 30.5 mm; motor mounting: 16 × 16 mm; camera mounting: 19 / 20 mm; recommended propeller: 5 inch; weight: 185.6 g ±2 g.
Package Includes
The package contains 1 × GEP-Vapor-X5 Frame, 2 × M20 × 250 mm battery straps, 2 × battery silicone pads, a screw set, printout package, 1.5 mm / 2 mm / 3 mm L-shaped screwdrivers and an M8 wrench.
GP107336
