The Pilotix Mark4-8 V2 Partizan Edition Frame is a durable FPV drone frame designed for custom builds and upgrades. It features 6 mm arms, support for 16 × 16 mm and 19 × 19 mm motor mounting patterns, and mounting options for 20 × 20 mm and 30.5 × 30.5 mm electronics. With a weight of 214 g, it provides a solid platform for larger FPV setups.

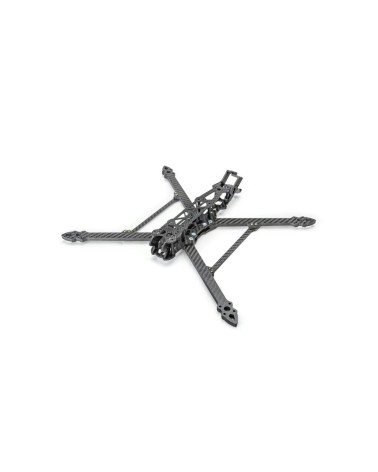

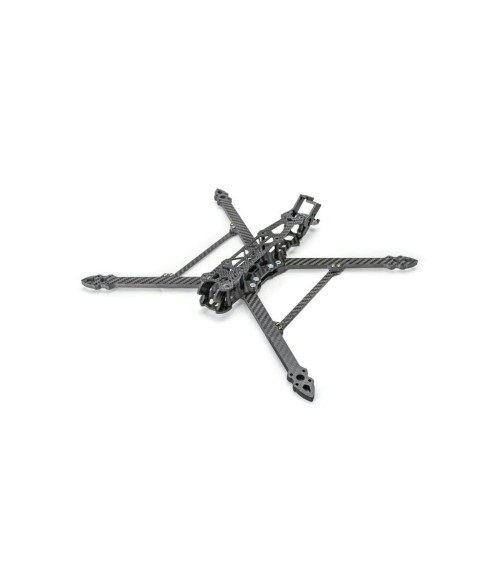

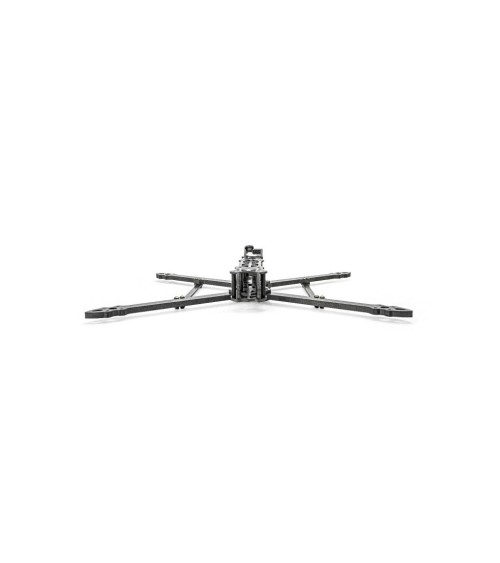

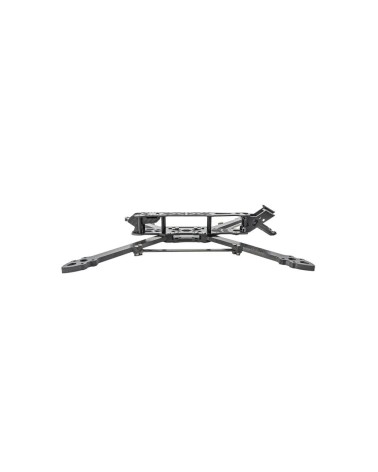

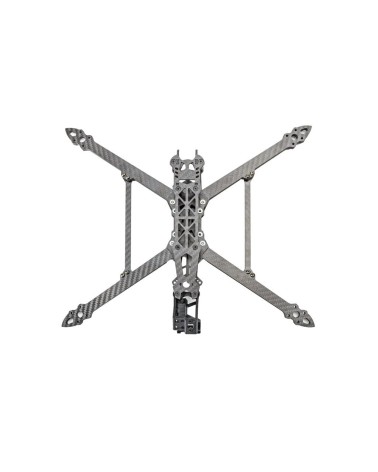

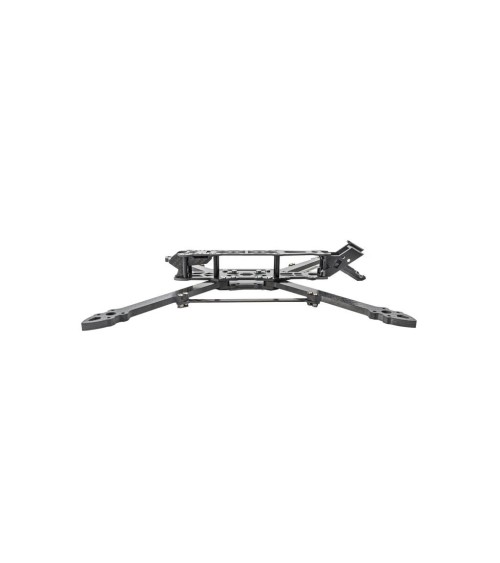

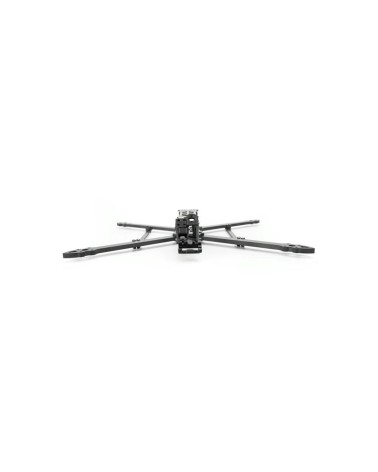

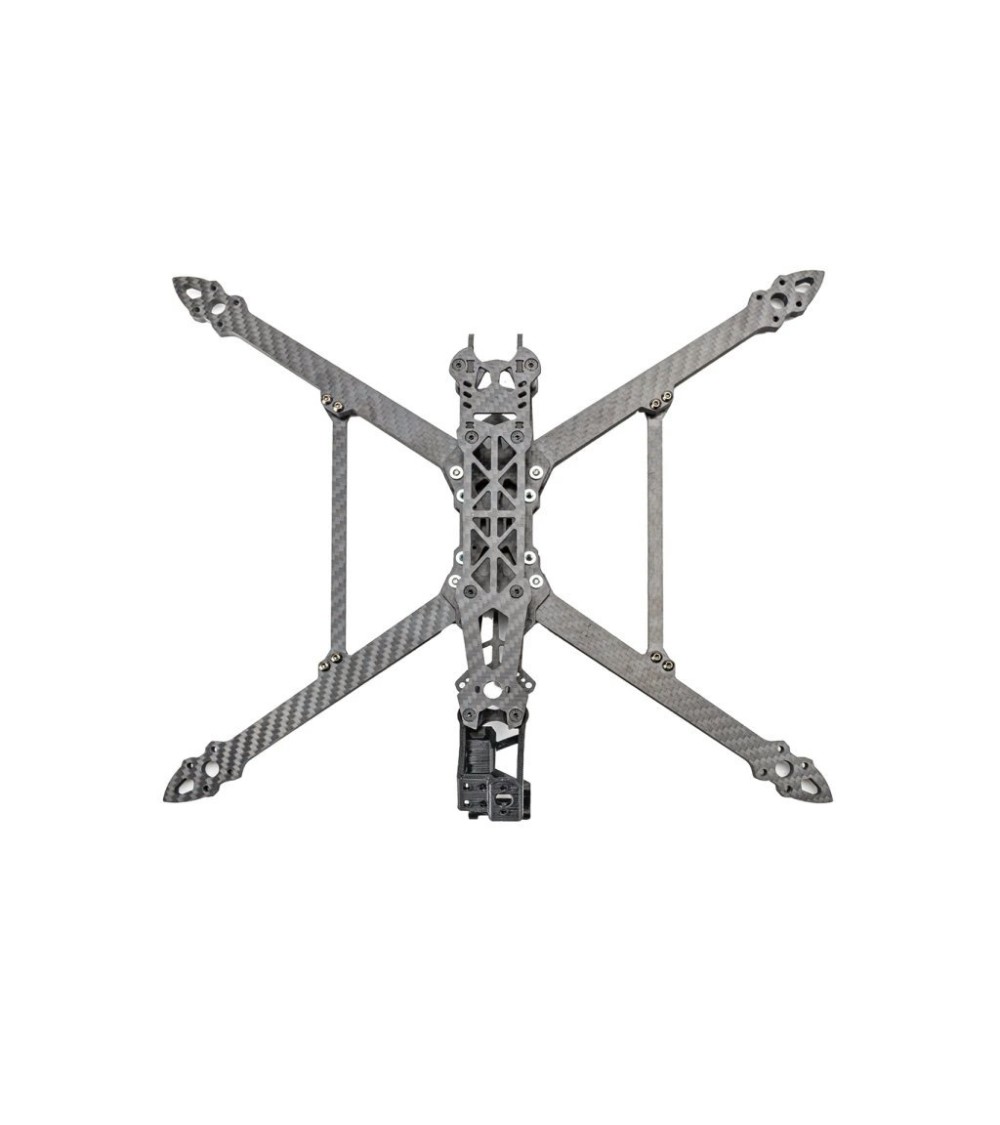

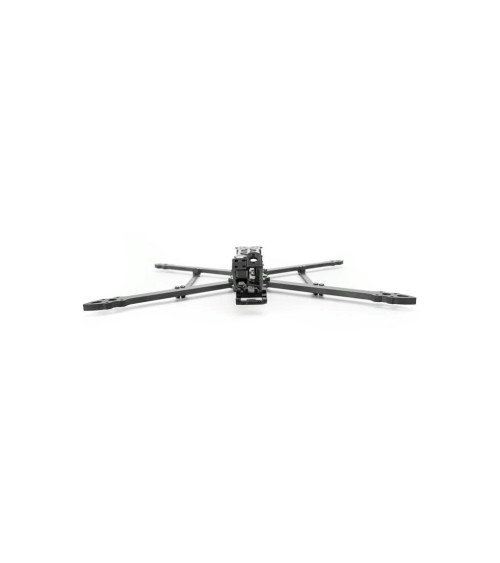

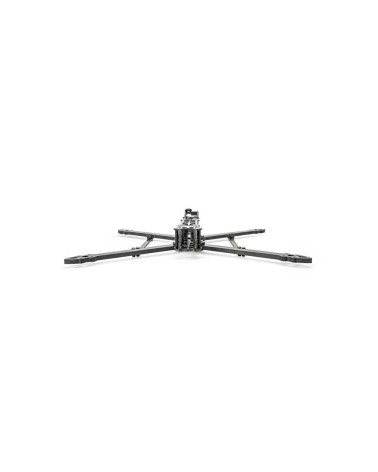

Frame Pilotix Mark4-8 V2 Partizan Edition
€31.93
On order: Delivery 4-5 working days.
The Pilotix Mark4-8 V2 Partizan Edition Frame is a durable FPV drone frame designed for custom builds and upgrades. It features 6 mm arms, support for 16 × 16 mm and 19 × 19 mm motor mounting patterns, and mounting options for 20 × 20 mm and 30.5 × 30.5 mm electronics. With a weight of 214 g, it provides a solid platform for larger FPV setups.
The Pilotix Mark4-8 V2 Partizan Edition Frame is designed as a robust base for custom FPV drone builds. Its reinforced structure and multiple mounting options make it suitable for a wide range of electronics and motor configurations.
Strong 6 mm Arms
The frame uses 6 mm thick arms, providing a sturdy structure for demanding FPV use.
Flexible Motor Mounting
Motor mounting hole patterns of 16 × 16 mm and 19 × 19 mm are supported, allowing compatibility with different motor types.
Multiple Electronics Mounting Options
The frame supports 20 × 20 mm and 30.5 × 30.5 mm mounting patterns, giving flexibility when choosing flight controllers, ESCs and other electronics.

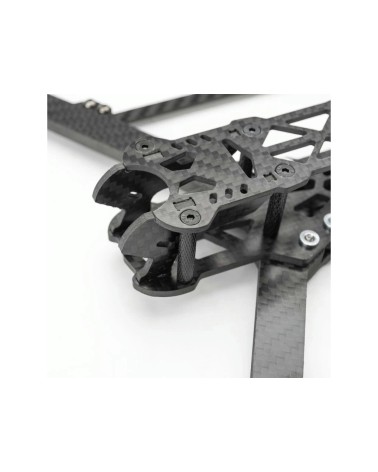

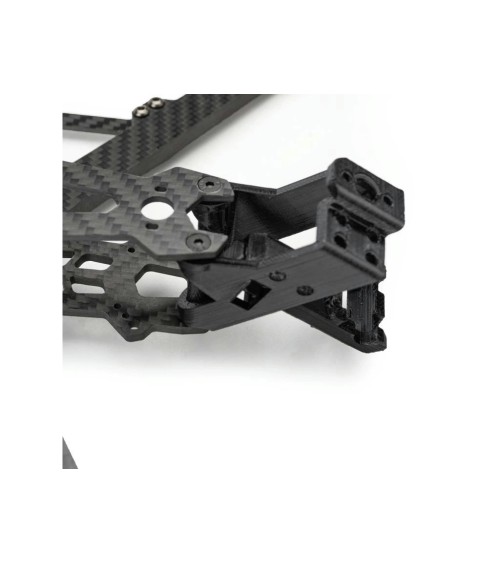

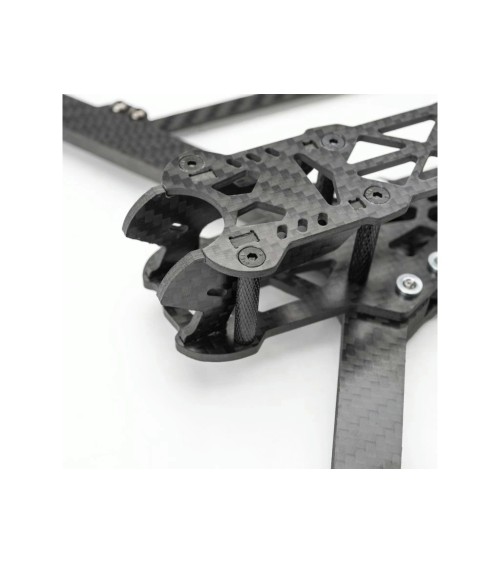

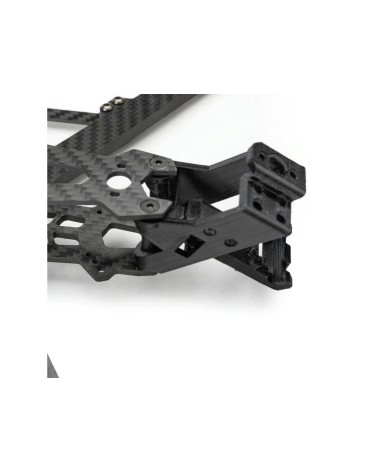

Camera Side Panels
The camera side panels are 2.5 mm thick, providing additional protection around the camera area.
Internal Space
The frame offers 35 mm of inner space height, giving room for electronics and wiring.
Specifications
Arm thickness: 6 mm
Camera side panel thickness: 2.5 mm
Motor mounting hole pitch: 16 × 16 mm / 19 × 19 mm
Mounting hole spacing: 20 × 20 mm / 30.5 × 30.5 mm
Inner space height: 35 mm
FC mounting holes: 30.5 mm
Weight: 214 g
