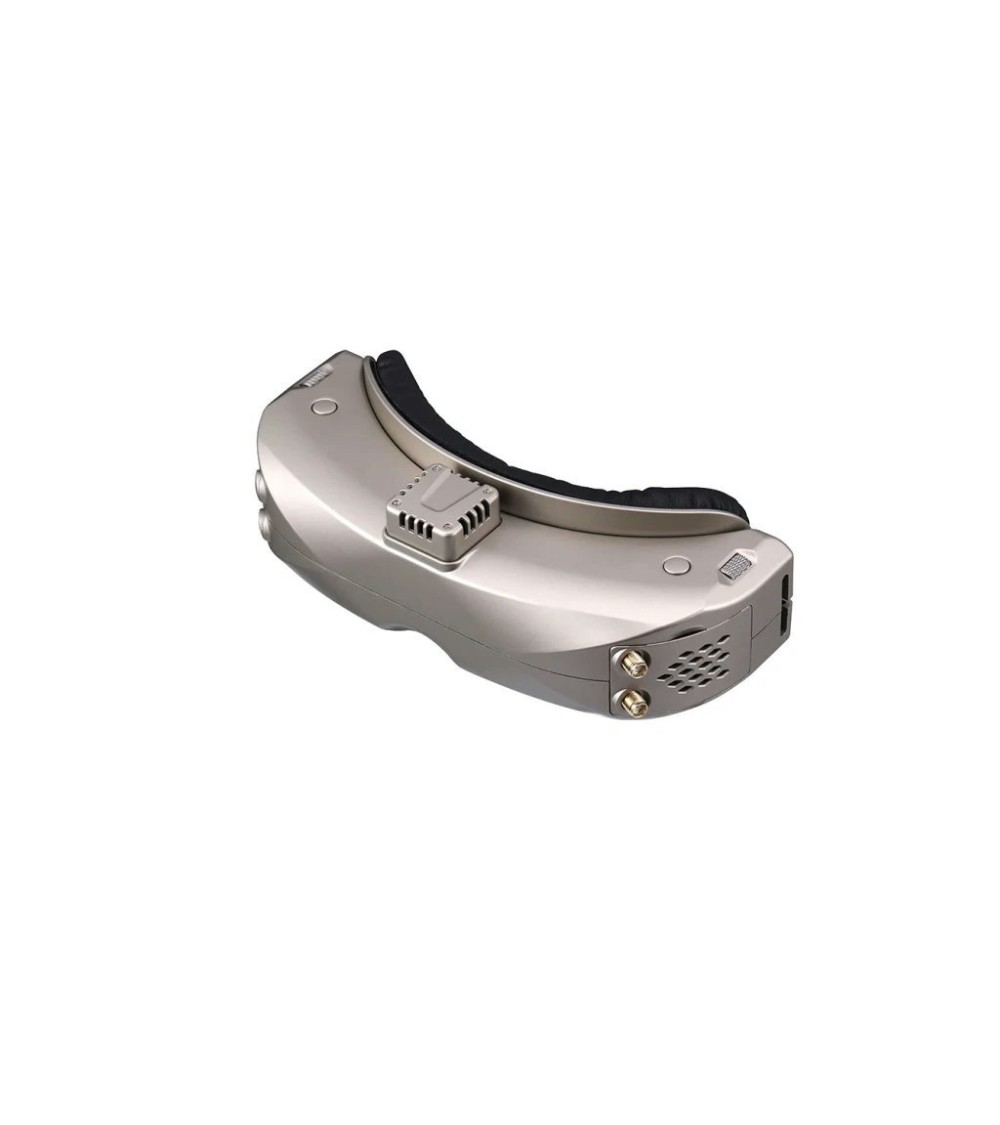

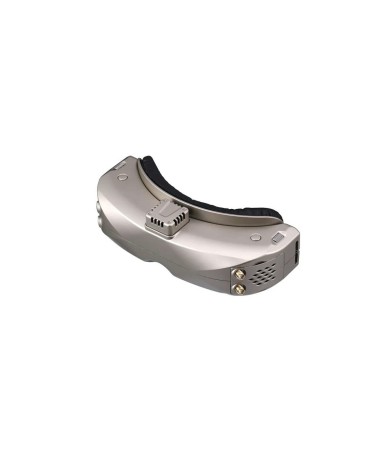

Analog FPV Goggles SKYZONE SKY04X PRO Grey Matte

The SKYZONE SKY04X PRO Grey Matte are analog FPV goggles built around 1920×1080 OLED displays and an included 5.8GHz 48CH SteadyView V3.3 receiver. Adjustable focus and IPD settings, an integrated DVR, HDMI input and a built-in head tracker make them a capable choice for analog FPV pilots who want image clarity and versatility in the field.

Full HD OLED Displays

The 1920×1080 OLED panels deliver a sharp, high-contrast FPV image across a 52° field of view. Both 4:3 and 16:9 aspect ratios are selectable to match the camera output of the aircraft.

SteadyView V3.3 Receiver

The included 5.8GHz 48CH SteadyView V3.3 receiver combines signals from multiple antennas to reduce image tearing and rolling that can occur during analog FPV flight, helping maintain a cleaner video feed.

DVR & HDMI Input

The integrated DVR records footage in H.264 at 60fps for post-flight review. The 720P 100FPS HDMI input allows compatible external video sources to be displayed through the goggles.

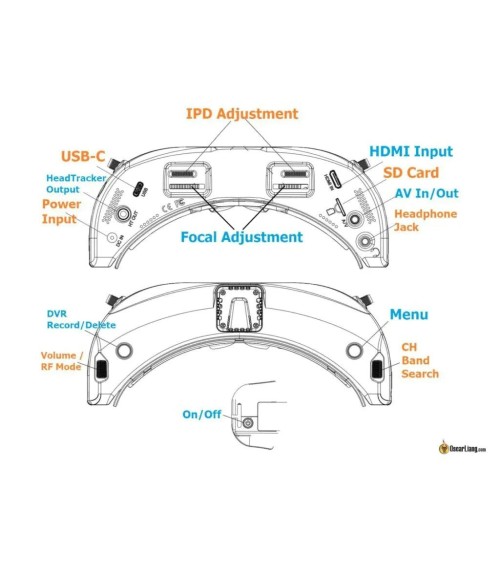

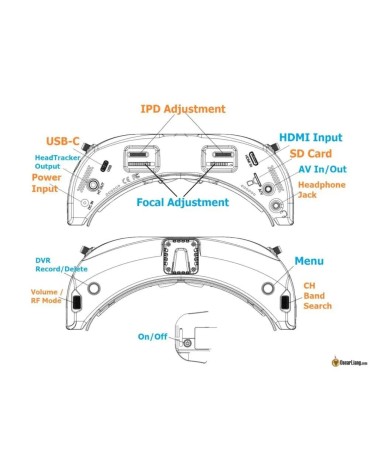

Adjustable Optics

Focus is adjustable from −6 to +2 diopters and IPD from 58 to 71mm, allowing the displays to be aligned with a wide range of eyesight prescriptions and eye spacings for a comfortable, clear view.

Head Tracking

The integrated head tracker uses a 3-axis accelerometer and 3-axis gyroscope to relay head movement data to compatible flight controllers or gimbals via the included head tracker cable.

Power Options

The goggles accept a 2–6S LiPo power input, giving pilots flexibility to use a range of common field batteries.

Specifications

• Model: SKY04X PRO
• Colour: Grey Matte
• Video system: Analog
• Display: OLED
• Resolution: 1920×1080
• Aspect ratio: 4:3 / 16:9
• Field of view: 52°
• Focus adjustment: −6 to +2
• IPD adjustment: 58–71mm
• Receiver: 5.8GHz 48CH SteadyView V3.3
• DVR: H.264, 60fps
• HDMI input: 720P 100FPS
• Head tracker: 3-axis accelerometer, 3-axis gyroscope
• Power input: 2–6S LiPo
• Dimensions: 185×75×67mm
• Weight: 267g

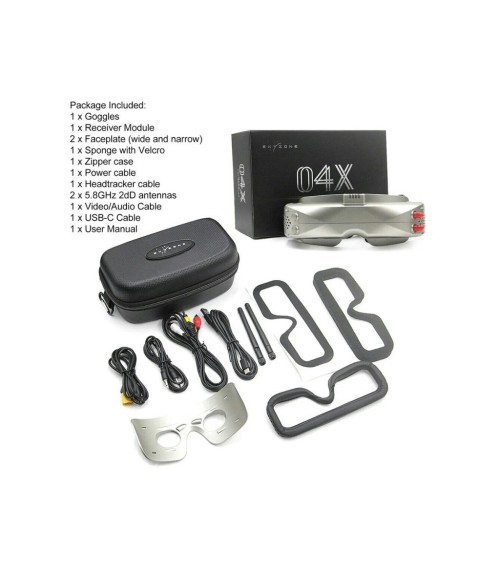

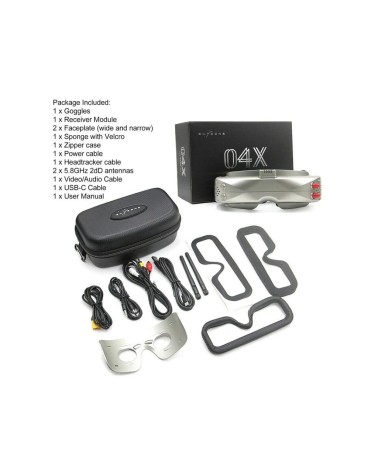

Package Includes

• 1 × SKYZONE SKY04X PRO Grey Matte Goggles
• 1 × SteadyView V3.3 Receiver Module
• 2 × Faceplate (wide and narrow)
• 1 × Sponge with Velcro
• 1 × Zipper Case
• 1 × Power Cable
• 1 × Head Tracker Cable
• 2 × 5.8GHz 2dB Antennas
• 1 × Video/Audio Cable
• 1 × USB-C Cable
• 1 × SKY04X PRO User Manual
