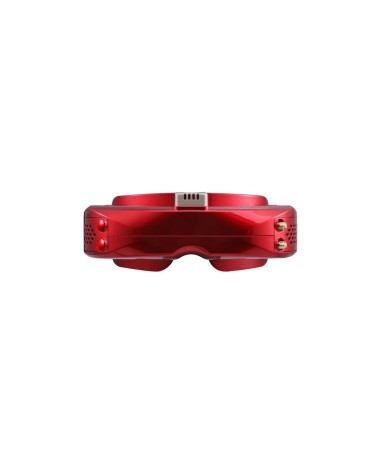

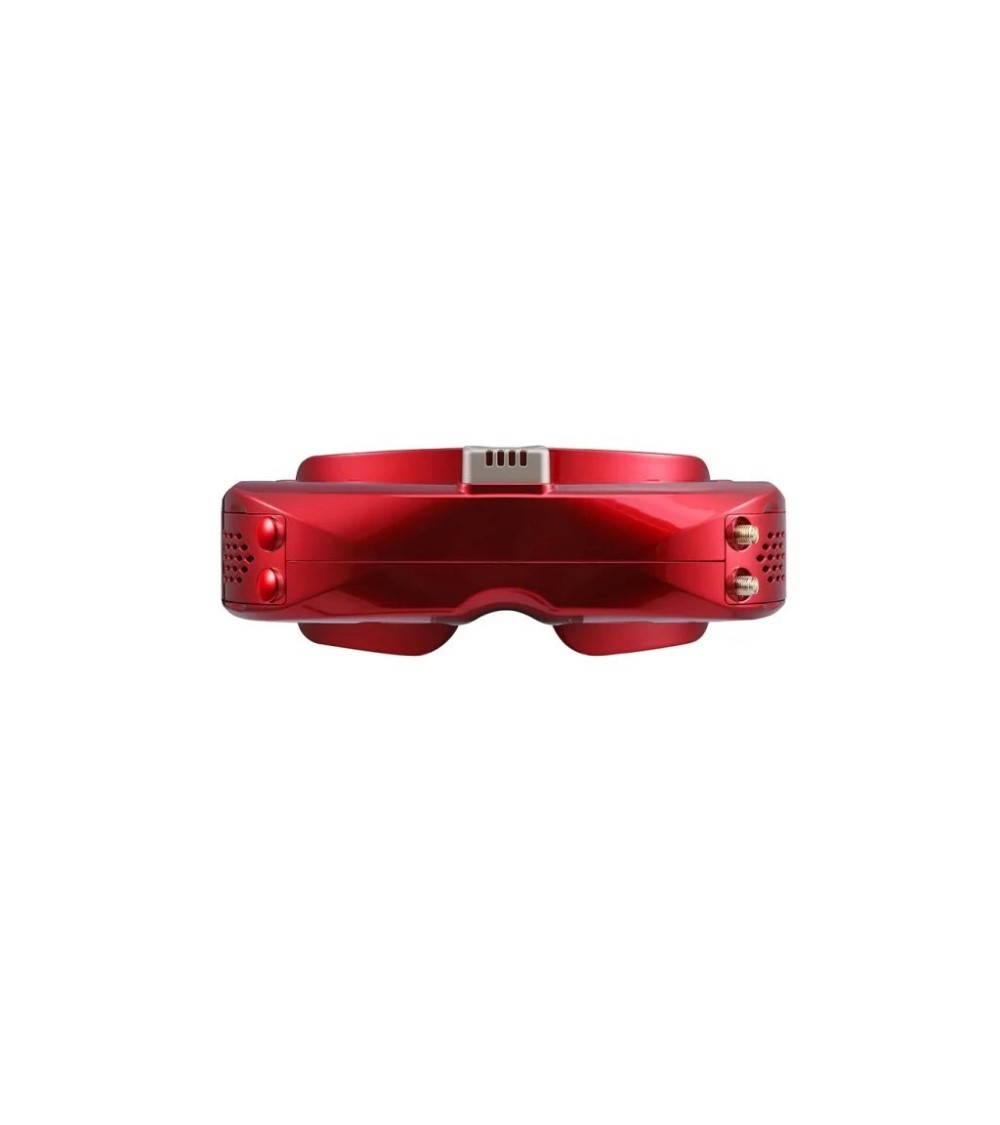

Goggles SKYZONE SKY04X PRO Red Matte

The SKYZONE SKY04X PRO Red Matte are analog FPV goggles built around 1920×1080 OLED displays and an included 5.8GHz 48CH SteadyView V3.3 receiver. Adjustable focus and IPD settings, an integrated DVR, HDMI input and a built-in head tracker make them a capable choice for analog FPV pilots seeking image quality and versatility in the field.

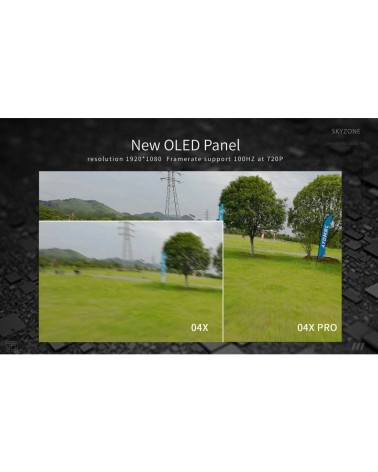

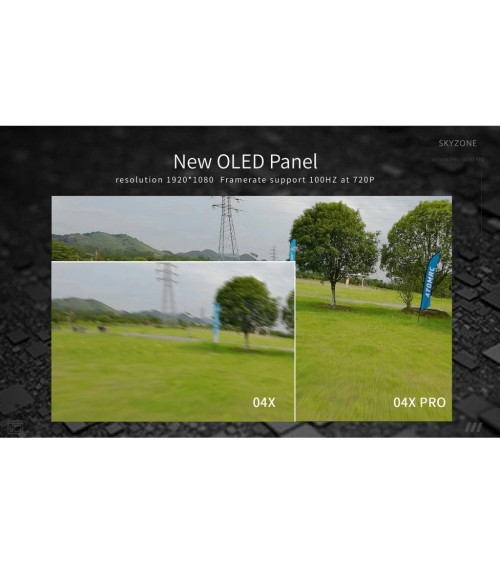

Full HD OLED Displays

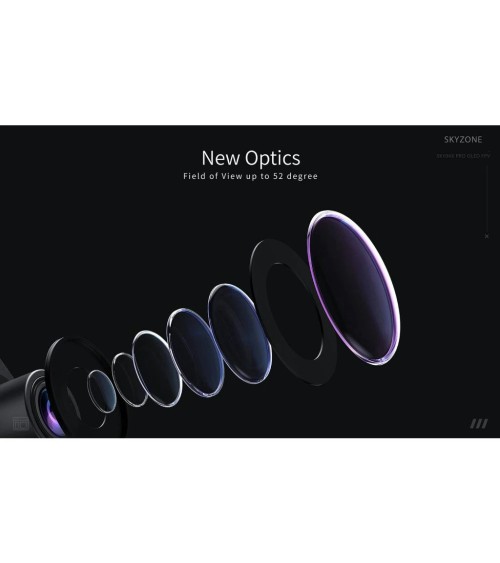

The 1920×1080 OLED panels deliver a detailed FPV image across a 52° field of view. Both 4:3 and 16:9 aspect ratios are selectable to match the camera output.

SteadyView V3.3 Receiver

The included 5.8GHz 48CH SteadyView V3.3 receiver combines received video signals to reduce image tearing and rolling, helping maintain a cleaner picture during analog FPV flight.

DVR & HDMI Input

The integrated DVR records footage in H.264 at 60fps, while the 720P 100FPS HDMI input allows the goggles to display video from compatible external devices such as simulators or video players.

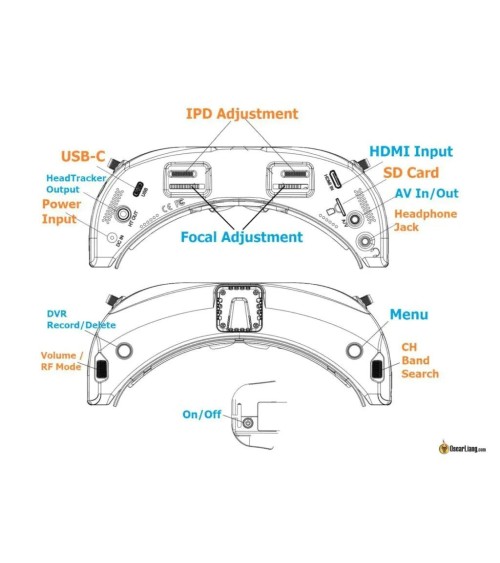

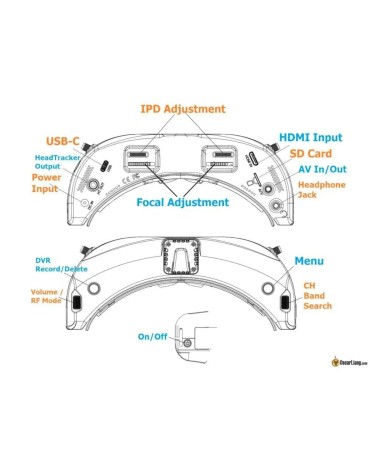

Adjustable Optics

Focus is adjustable from −6 to +2 diopters and IPD from 58 to 71mm, allowing the displays to be aligned with a wide range of eyesight prescriptions and eye spacings for a comfortable, clear view.

Head Tracking

The integrated head tracker uses a 3-axis accelerometer and 3-axis gyroscope to provide head-tracking data for compatible systems and applications.

Power Options

The goggles accept a 2–6S LiPo power input, giving pilots flexibility to use a range of common field batteries.

Specifications

• Model: SKY04X PRO
• Colour: Red Matte
• Video system: Analog
• Display: OLED
• Resolution: 1920×1080
• Aspect ratio: 4:3 / 16:9
• Field of view: 52°
• Focus adjustment: −6 to +2
• IPD adjustment: 58–71mm
• Receiver: 5.8GHz 48CH SteadyView V3.3
• DVR: H.264, 60fps
• HDMI input: 720P 100FPS
• Head tracker: 3-axis accelerometer, 3-axis gyroscope
• Power input: 2–6S LiPo
• Dimensions: 185×75×67mm
• Weight: 267g

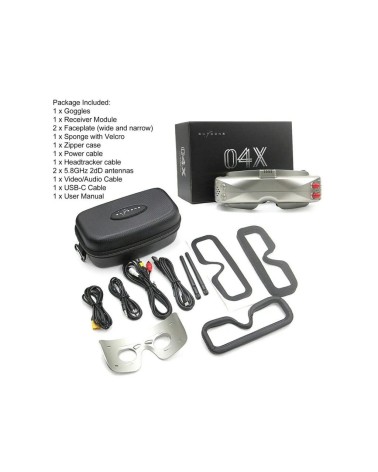

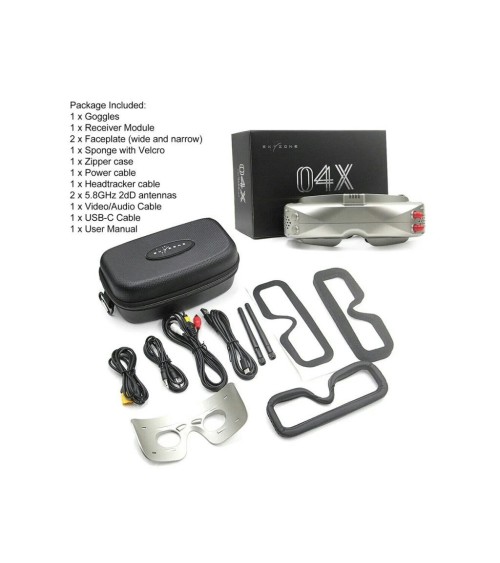

Package Includes

• 1 × SKYZONE SKY04X PRO Red Matte Goggles
• 1 × SteadyView V3.3 Receiver Module
• 2 × Faceplate (wide and narrow)
• 1 × Sponge with Velcro
• 1 × Zipper Case
• 1 × Power Cable
• 1 × Head Tracker Cable
• 2 × 5.8GHz 2dB Antennas
• 1 × Video/Audio Cable
• 1 × USB-C Cable
• 1 × SKY04X PRO User Manual
