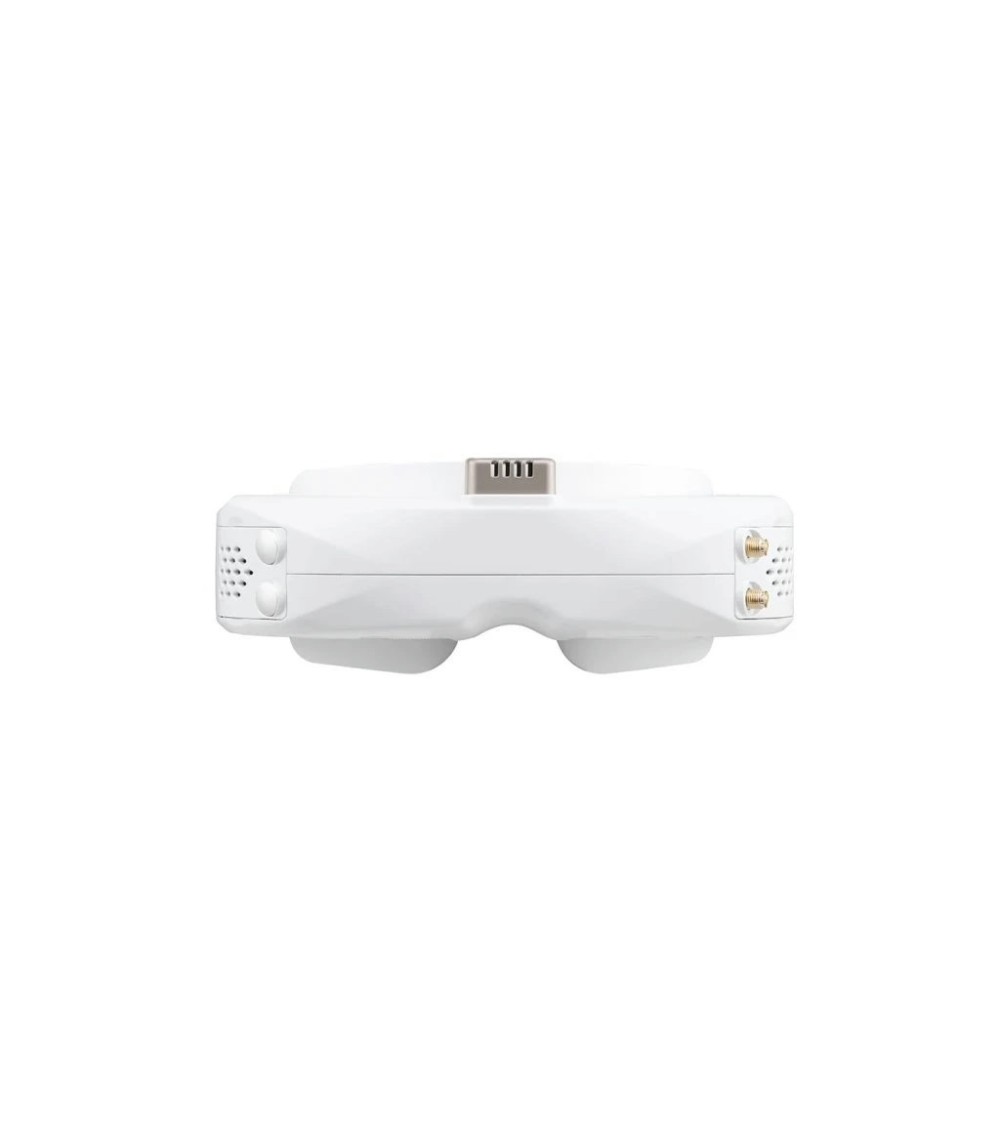

FPV Goggles SKYZONE SKY04X PRO White Matte

The SKYZONE SKY04X PRO White Matte is an analog FPV goggle system built around 1920 × 1080 OLED displays with a 52° field of view. The package includes a SteadyView V3.3 5.8GHz 48CH receiver module, a built-in H.264 DVR, HDMI input and an integrated head-tracking system. Adjustable interpupillary distance and focus range, combined with two included faceplates, allow the goggles to be tailored to a wide range of pilots.

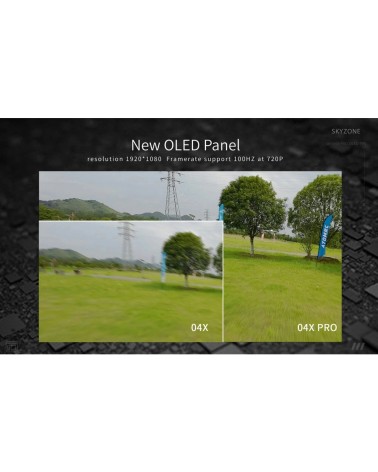

Full HD OLED Displays

The 1920 × 1080 OLED panels deliver a sharp, high-contrast FPV image across a 52° field of view. Both 4:3 and 16:9 aspect ratios are selectable to match the output of different FPV cameras.

SteadyView V3.3 Analog Receiver

The included 5.8GHz 48CH SteadyView V3.3 module provides analog FPV video reception across compatible channels and connects to two included 5.8GHz 2dB antennas.

DVR & HDMI Input

The built-in H.264 DVR records footage at up to 60fps for post-flight review. The HDMI input accepts video at up to 720P/100fps, enabling connection to compatible external video sources or simulators.

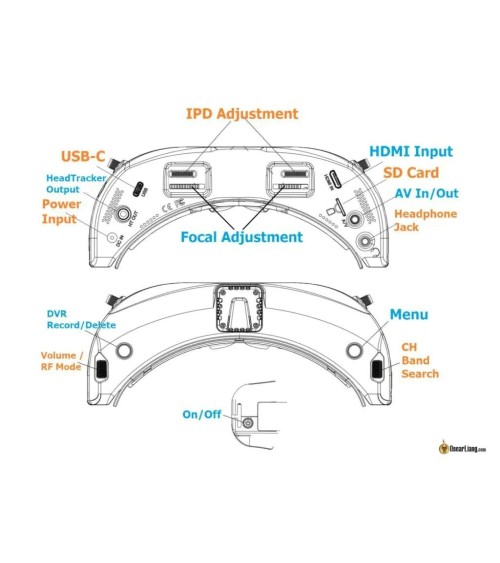

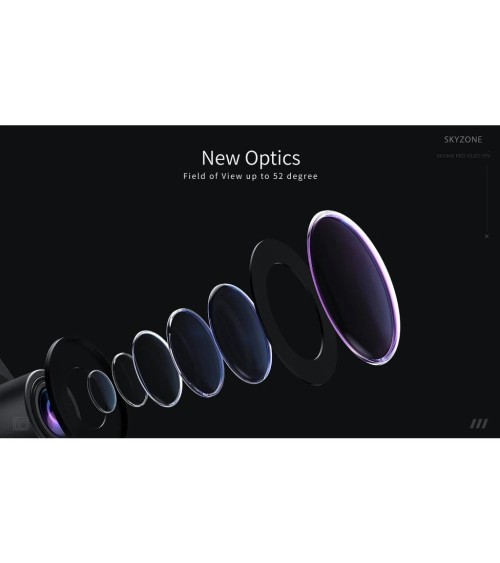

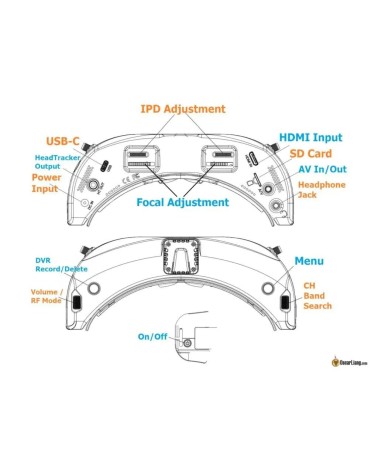

Adjustable Optics

Interpupillary distance is adjustable from 58 to 71mm and the focus range of −6 to +2 accommodates pilots with different vision requirements, reducing the need for corrective lens inserts in many cases.

Head Tracking

An integrated head-tracking system uses a three-axis accelerometer and three-axis gyroscope to relay head movement data to compatible FPV installations via the included head-tracker cable.

Power & Fit

The goggles accept a 2–6S LiPo power input for compatibility with a wide range of field batteries. Both wide and narrow faceplates, a replaceable face sponge with Velcro and a zipper carry case are included for a comfortable, personalised fit.

Specifications

• Model: SKYZONE SKY04X PRO
• Colour: White Matte
• Video system: Analog
• Display type: OLED
• Display resolution: 1920 × 1080
• Field of view: 52°
• Aspect ratio: 4:3 / 16:9
• Receiver: 5.8GHz 48CH SteadyView V3.3
• DVR: H.264, up to 60fps
• HDMI input: 720P/100fps
• Focus adjustment: −6 to +2
• Interpupillary distance: 58–71mm
• Head tracker: 3-axis accelerometer and 3-axis gyroscope
• Power input: 2–6S LiPo
• Dimensions: 185 × 75 × 67mm
• Weight: 267g

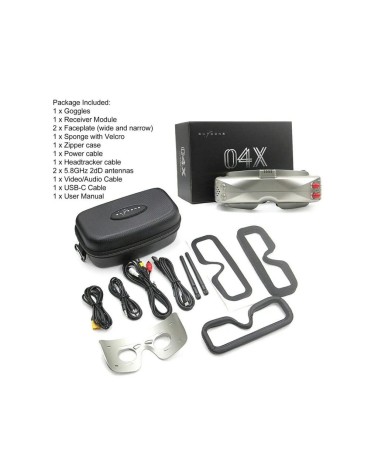

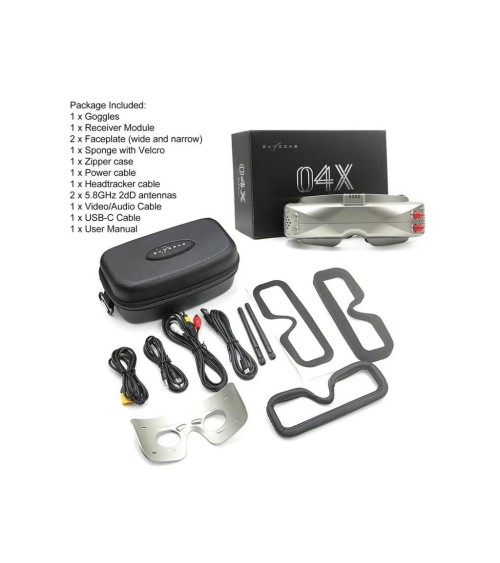

Package Includes

• 1 × SKYZONE SKY04X PRO FPV Goggles
• 1 × SteadyView V3.3 Receiver Module
• 2 × Faceplates (Wide and Narrow)
• 1 × Sponge with Velcro
• 1 × Zipper Case
• 1 × Power Cable
• 1 × Head-Tracker Cable
• 2 × 5.8GHz 2dB Antennas
• 1 × Video/Audio Cable
• 1 × USB-C Cable
• 1 × SKY04X PRO User Manual
