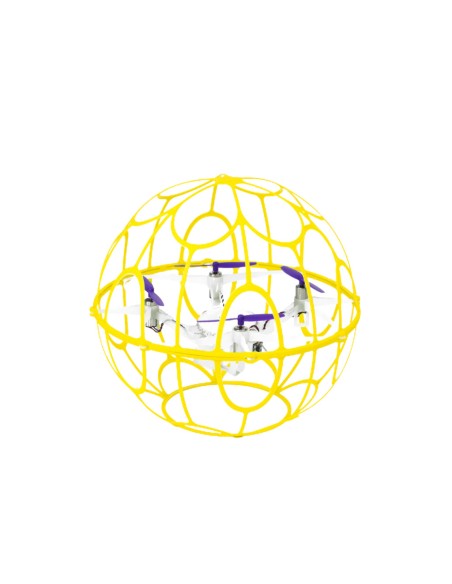

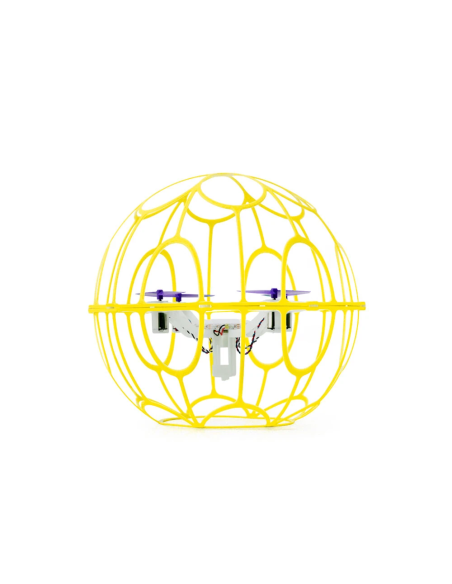

HGLRC B200 Soccer Drone

The HGLRC B200 Soccer Drone is a compact, fully protected training and game platform built for precision, durability and safety. Its 200 mm spherical frame encloses the drone like a protective cage, making it ideal for indoor halls, gyms and outdoor play areas where traditional open-prop drones would be too risky.

With a 120 mm wheelbase and a powerful 1020 hollow-cup motor driving 2.5" two-blade propellers, the B200 delivers quick response, solid stability and enough thrust for agile maneuvers and accuracy drills. The integrated barometric altitude hold keeps the drone at a steady height, simplifying control for beginners and allowing more focus on tactics and ball control.

The drone is powered by a 7.4V 550mAh modular battery, providing around 6 minutes of flight time. Two batteries are included in the kit so training or gameplay doesn’t have to stop after the first flight. Charging is handled via the supplied USB charger, keeping maintenance simple and field-ready.

Control is handled by a 2.4G radio transmitter featuring potentiometer gimbals, a built-in buzzer and selectable Mode 2 / Mode 1 stick layout. The effective control range is around 50 m, giving plenty of space for drills, small-sided drone football matches or obstacle courses.

Weighing only 75.4 g (without battery) and built around a resilient cage-style frame, the B200 is perfectly suited for drone soccer, precision training, team exercises and STEM education projects. It is a complete RTF (Ready to Fly) kit – just add AA batteries for the radio and you’re ready to launch.

Technical Specifications – Drone

• Frame: 200 mm diameter spherical frame

• Wheelbase: 120 mm

• Motor: 1020 hollow-cup motor

• Propeller: 2.5-inch two-blade propeller

• Battery: 7.4V 550mAh modular battery

• Receiving frequency band: 2.4G

• Altitude control system: barometric (air pressure) altitude hold

• Flight time: about 6 minutes

• Charging time: ~60 minutes via USB

• Weight: 75.4 g (excluding battery)

• Dimensions: 125 × 125 × 110 mm

Technical Specifications – Remote Controller

• RF: 2.4G

• Battery type: 4 × AA batteries (not included)

• Sensor type: potentiometer gimbals

• Buzzer: built-in buzzer

• Control modes: Mode 2 / Mode 1

• Control distance: approx. 50 m

• Weight: 101 g (excluding batteries)

• Dimensions: 150 × 105 × 54 mm

Package Contents

• 1 × HGLRC B200 Soccer Drone

• 1 × Remote controller

• 1 × USB charging cable

• 2 × 7.4V 550mAh batteries

• 1 × Tool kit

• 1 × A/B type propeller pair

• 1 × Paper manual
