FPV Soldering Practice Kit Pilotix FC+ESC
€3.14
On order: Delivery 4-5 working days.
FPV Soldering Practice Kit Pilotix FC+ESC includes two practice PCBs simulating a flight controller and ESC. Gold-plated pads, 30.5×30.5mm M3 mounting. Ideal for beginners learning FPV soldering safely.

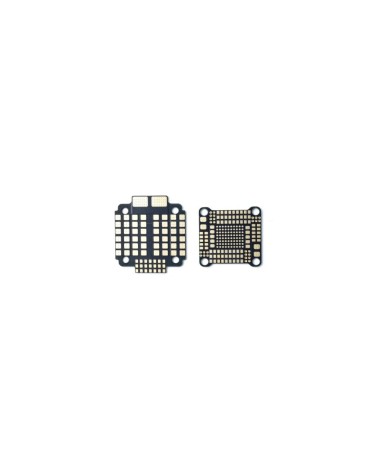

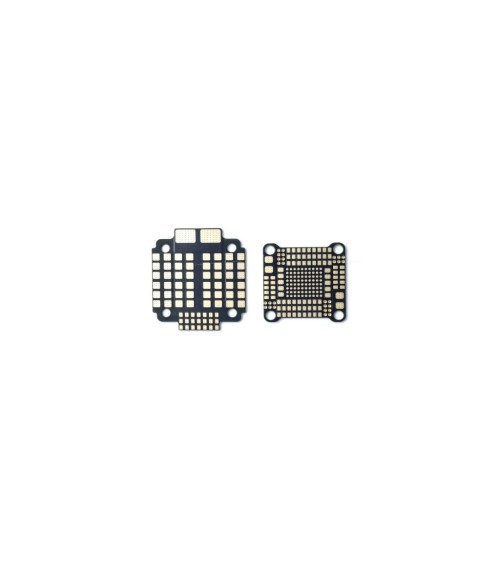

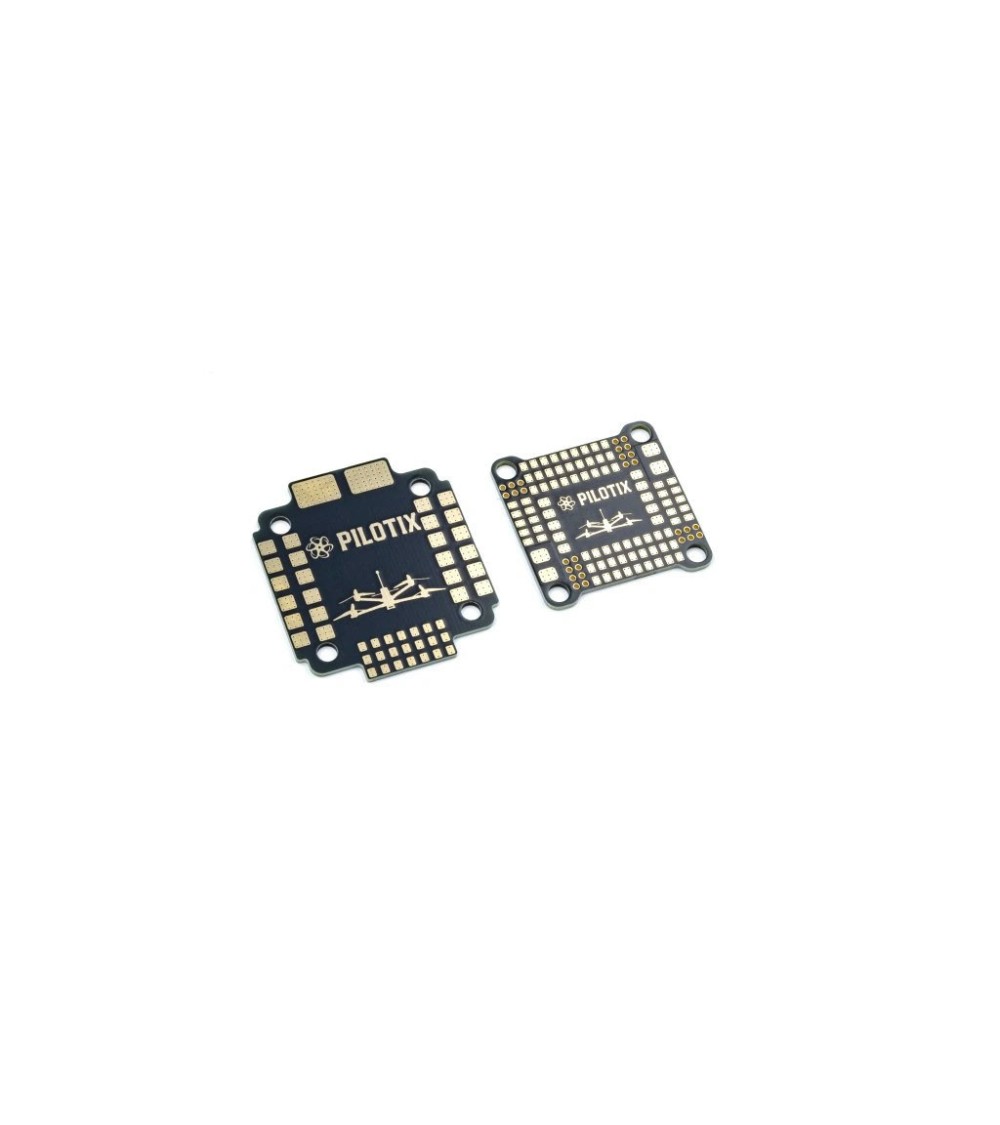

The Pilotix FC+ESC Soldering Practice Kit is a training tool designed for beginners and hobbyists who want to learn FPV drone electronics soldering without risking damage to real, expensive components. The kit includes two black printed circuit boards — one simulating a flight controller and one simulating an ESC — both featuring gold-plated solder pads and layouts representative of common FPV drone electronics.
Safe Soldering Practice
The practice boards allow users to develop and refine soldering technique on realistic pads and layouts before working on actual flight electronics, eliminating the risk of damaging functional components during the learning process.
Realistic Board Layout
Both boards use black PCBs with gold-plated solder pads and layouts that closely represent the FC and ESC boards commonly found in FPV drones, giving users a practical and familiar training experience.
Standard Mounting Pattern
Both boards feature a 30.5 × 30.5mm M3 mounting pattern, helping users become comfortable with the standard drone-electronics form factor used across a wide range of FPV builds.
Specifications
- Product type: FPV soldering practice kit
- Board types: FC and ESC training boards
- Mounting pattern: 30.5 × 30.5mm, M3
- FC board dimensions: 40 × 40mm
- ESC board dimensions: 45 × 40mm
- PCB colour: Black
- Solder pads: Gold-plated
Package Includes
- 1 × FC Training Soldering Board
- 1 × ESC Training Soldering Board
