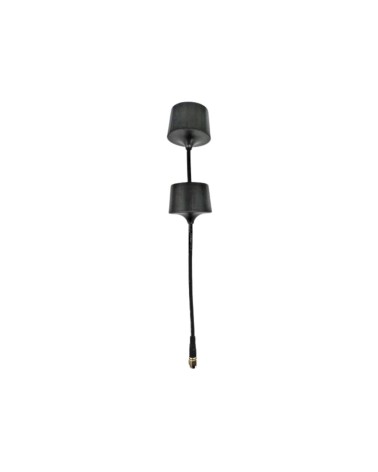

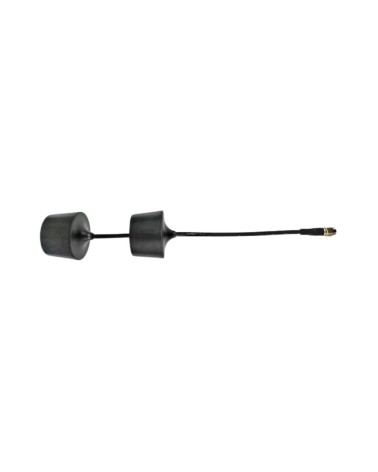

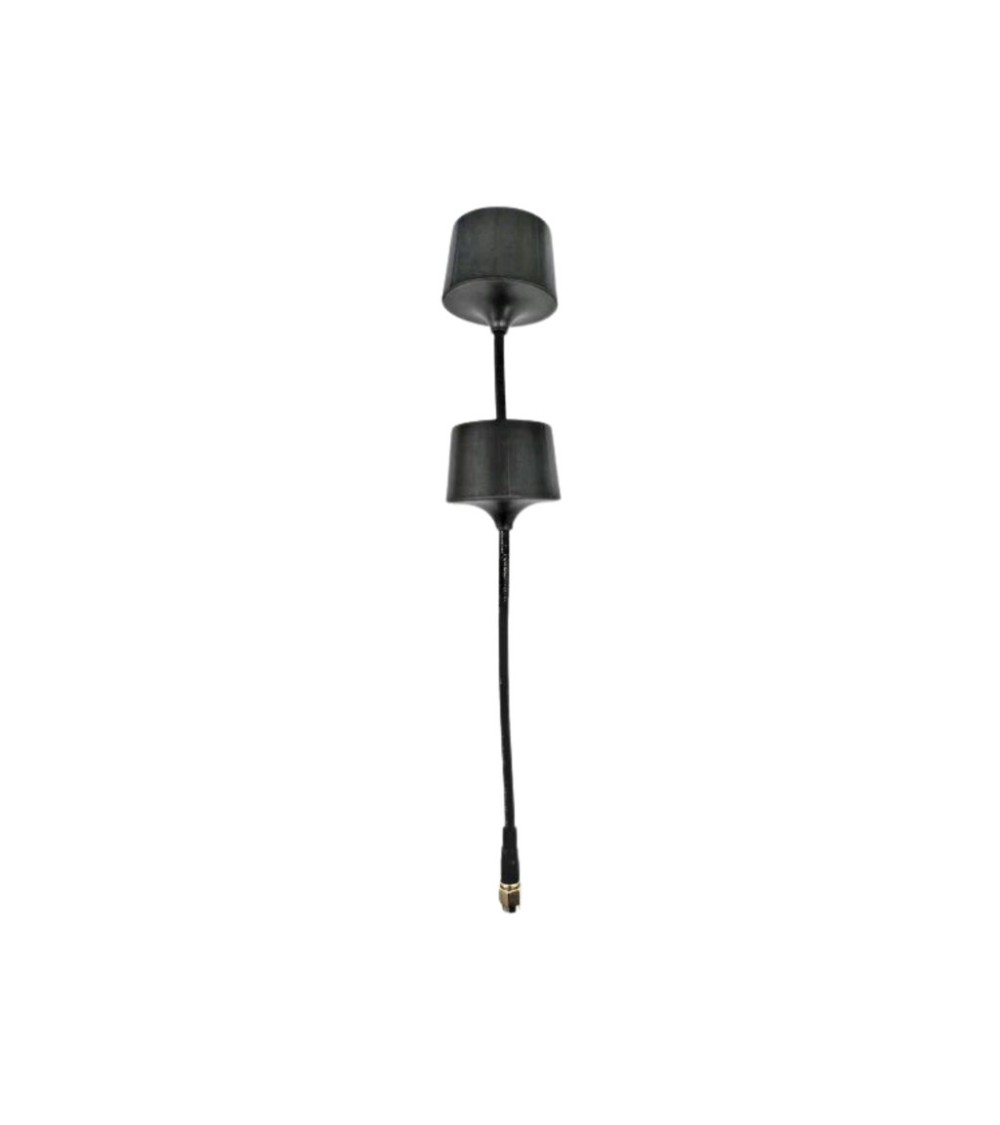

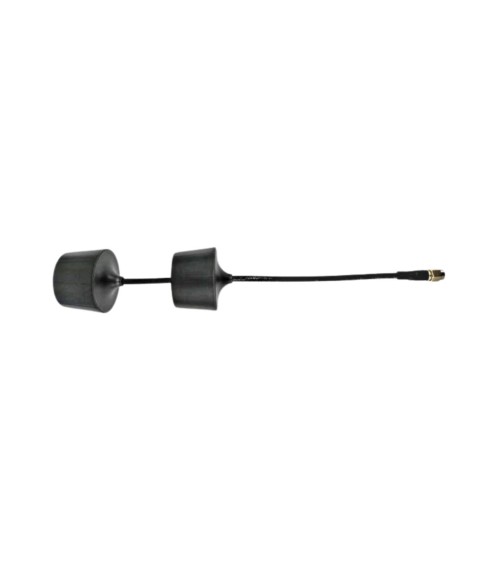

FPV Antenna Pilotix 4.9–6GHz Dual RHCP SMA
€12.58
On order: Delivery 4-5 working days.
Pilotix 4.9–6GHz Dual RHCP SMA is a wide-band FPV antenna covering 4900–6000MHz with RHCP polarisation, 3.5dBi gain and SMA Male/Pin connector for compatible video transmitters and receivers.
The Pilotix 4.9–6GHz Dual RHCP SMA is a wide-band FPV antenna designed for use with compatible video transmitters and receivers. It covers the full 4900–6000MHz frequency range, uses right-hand circular polarisation and connects via a standard SMA Male/Pin connector.
Wide Frequency Coverage
Operating across 4900–6000MHz (4.9–6GHz), the antenna is compatible with standard and extended FPV video frequencies, making it suitable for a broad range of FPV equipment within this band.
RHCP Polarisation
The antenna uses RHCP (right-hand circular polarisation), which reduces multipath interference compared to linear polarisation. For correct operation it must be paired with RHCP-compatible equipment on the other end of the link.
SMA Connector
The SMA Male/Pin connector provides direct, secure compatibility with FPV video transmitters and receivers that use a matching SMA female port.
Construction
The radiating element is made from copper, the RF cable is type 141 and the housing is ABS. The antenna is rated for operating temperatures from −20°C to +60°C and handles a maximum input power of 100W.
Specifications
- Model: 4.9–6G Dual
- Frequency range: 4900–6000MHz (4.9–6GHz)
- Polarisation: RHCP
- Gain: 3.5 ± 0.5dBi
- Impedance: 50Ω ± 10Ω
- Return loss: ≤−10dB
- VSWR: ≤2
- Maximum power: 100W
- Connector: SMA Male/Pin
- Antenna material: Copper
- RF cable type: 141
- Housing material: ABS
- Operating temperature: −20°C to +60°C
Package Includes
- 1 × Pilotix 4.9–6G Dual Antenna
