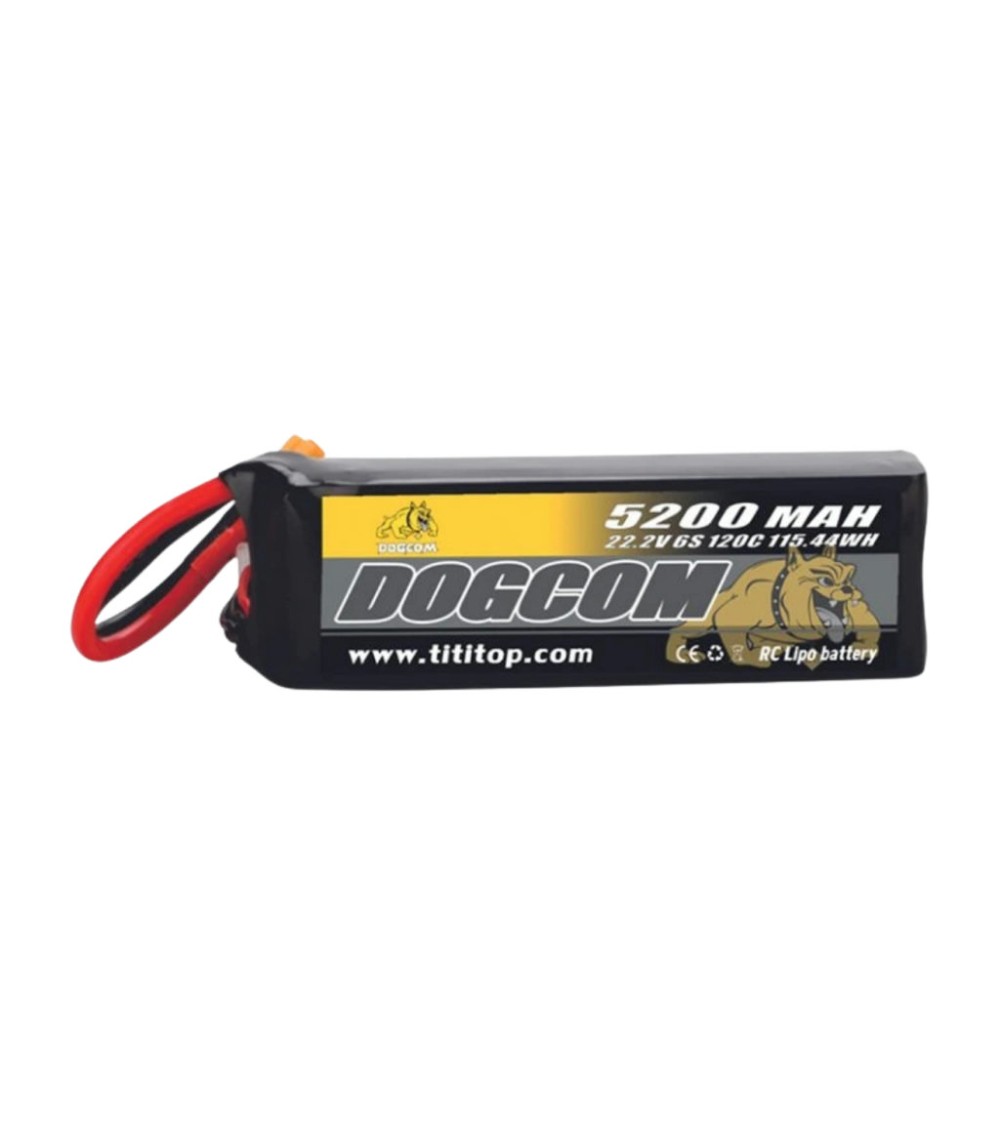

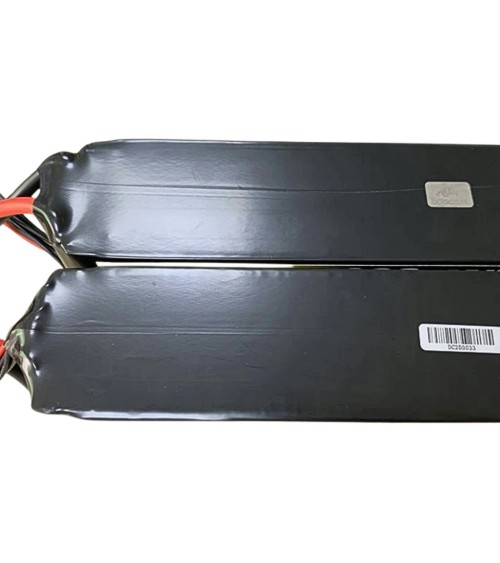

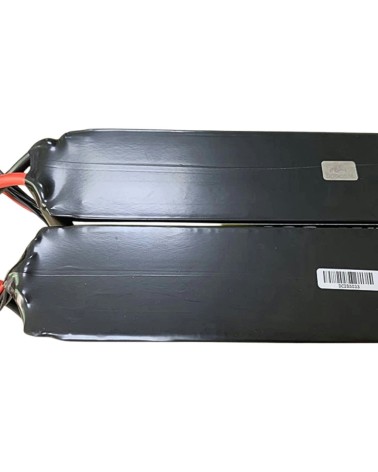

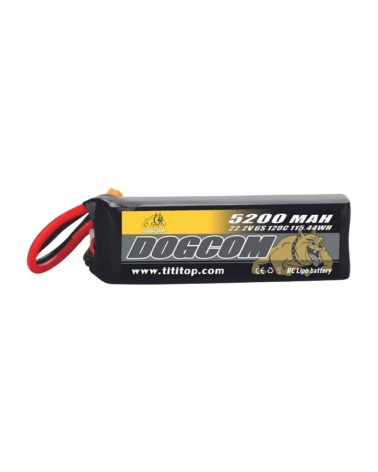

LiPo Battery DOGCOM 6S 22.2V 5200mAh 120C XT90

The DOGCOM 6S 22.2V 5200mAh 120C XT90 is a high-capacity LiPo battery designed for multi-rotor Cinelifter drones. With a 6S1P configuration delivering 115.44Wh of energy, it is built to meet the demanding power requirements of larger multi-motor aircraft. The aircraft and charger must support 6S LiPo batteries.

6S Power Configuration

The battery operates at a nominal voltage of 22.2V in a 6S1P configuration, making it suitable for Cinelifter platforms and other aircraft designed to run on 6S power systems.

High-Capacity Design

A 5200mAh capacity and 115.44Wh energy rating provide substantial runtime for compatible Cinelifter drones. The battery weighs approximately 790g, so the aircraft must be designed to carry a battery of this size and weight.

Discharge Performance

The battery supports a 120C continuous discharge rate and a 240C maximum discharge rate, ensuring it can deliver the high current bursts required by demanding multi-motor power systems without voltage sag.

Connectors

Power is delivered through an XT90 discharge connector, with a JST-XHR balance connector for charging and cell monitoring. Both connectors are widely used in the Cinelifter segment.

Specifications

• Battery type: LiPo
• Capacity: 5200mAh
• Configuration: 6S1P
• Nominal voltage: 22.2V
• Energy: 115.44Wh
• Continuous discharge rate: 120C
• Maximum discharge rate: 240C
• Discharge connector: XT90
• Balance connector: JST-XHR
• Dimensions: 45 × 48 × 158mm
• Weight: approximately 790g
• Intended application: Multi-rotor Cinelifter drones

Package Includes

• 1 × DOGCOM 6S 22.2V 5200mAh 120C LiPo Battery with XT90 Connector
