Six-Port Battery Charger BETAFPV V2 1S BT2.0 & PH2.0 is a USB-C charger with 6 independent channels for BT2.0 and PH2.0 LiHV 1S batteries, delivering up to 1A per channel with PD3.0/QC3.0 support.

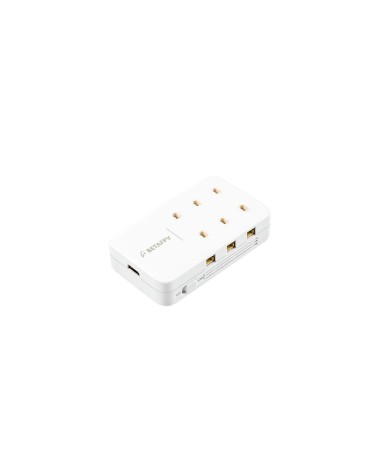

Six-Port Battery Charger BETAFPV V2 1S BT2.0 & PH2.0
€20.56
On order: Delivery 4-5 working days.
Six-Port Battery Charger BETAFPV V2 1S BT2.0 & PH2.0 is a USB-C charger with 6 independent channels for BT2.0 and PH2.0 LiHV 1S batteries, delivering up to 1A per channel with PD3.0/QC3.0 support.

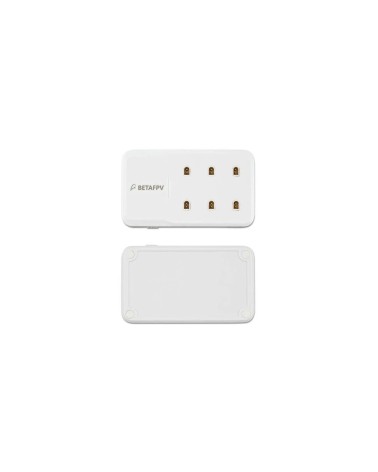

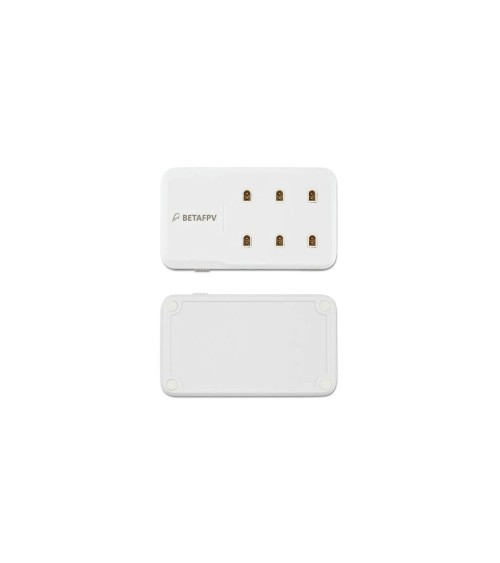

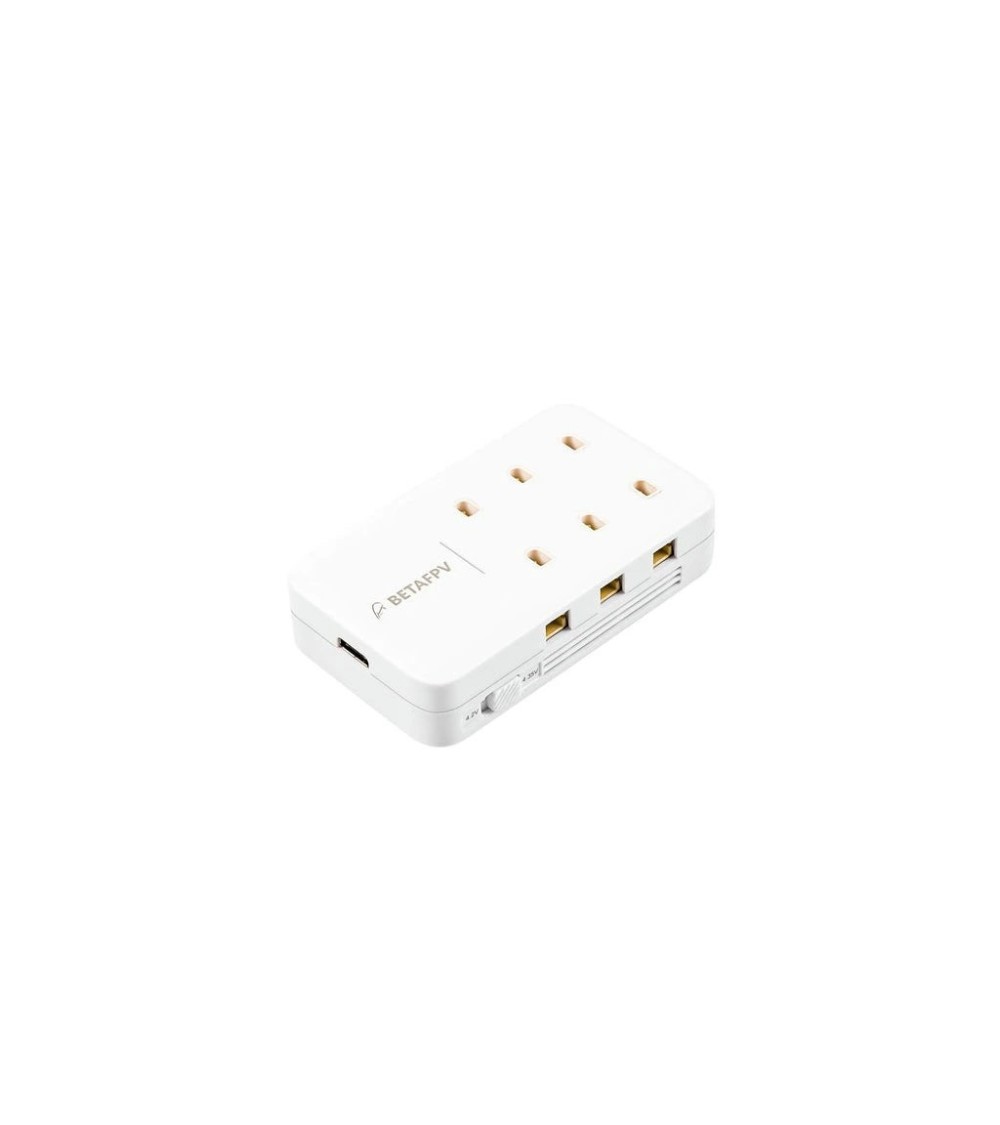

The BETAFPV V2 Six-Port 1S Battery Charger is a compact USB-C charger designed for 1S FPV drone pilots who need to replenish multiple batteries quickly. It features six independent charging channels, each supporting both BT2.0 and PH2.0 LiHV connectors, making it suitable for pilots with mixed connector types across their battery collection.
Six Independent Charging Channels
The charger manages up to six batteries simultaneously, with each channel equipped with both BT2.0 and PH2.0 ports. One battery may be connected per channel at a time, and each channel delivers up to 1A of charging current when paired with a suitable power adapter.

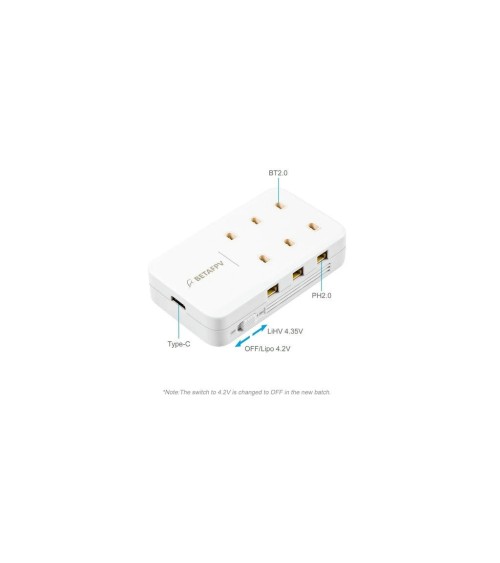

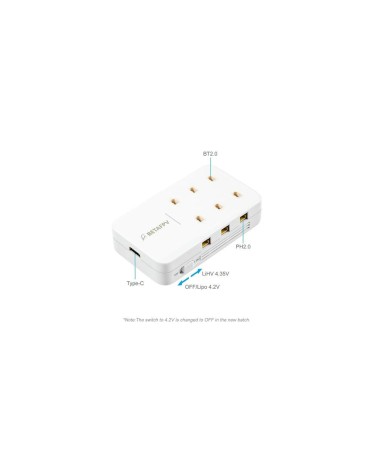

BT2.0 & PH2.0 Connector Support
Both BT2.0 and PH2.0 1S LiHV batteries can be charged at the same time across different channels, allowing pilots with different drone types to use a single charger for their entire battery collection without adapters.
USB-C Input & Fast-Charging Protocols
Power is supplied via a USB-C connector accepting 5–12V input with a maximum input power of 30W and maximum input current of 2.5A. Supported fast-charging protocols include PD3.0, QC3.0 and BC1.2 at 5V, 9V and 12V, enabling full charging speed with a compatible 30W or higher PD adapter (not included).
LED Charging Indicators
Each channel has a dedicated LED indicator: a flashing green light signals no battery detected, a steady green light indicates charging in progress, and the light switches off when charging is complete, making it straightforward to monitor all six channels at a glance.
Specifications
Product type: Six-port 1S battery charger
Charging channels: 6
Supported battery type: LiHV 4.35V
Supported battery connectors: BT2.0 and PH2.0
Input connector: USB-C
Input voltage: 5–12V
Maximum input power: 30W
Maximum input current: 2.5A
Maximum charging current: 1A per channel
Charging protocols: PD3.0, QC3.0 and BC1.2
Supported protocol voltages: 5V, 9V and 12V

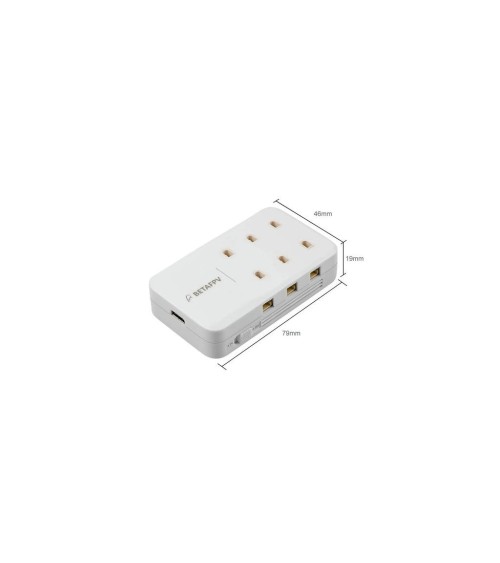

Dimensions: 79 × 46 × 19mm
Recommended power adapter: 30W or higher PD adapter (not included)
Package Includes
1 × BETAFPV Six-Port 1S Battery Charger
1 × User Manual
