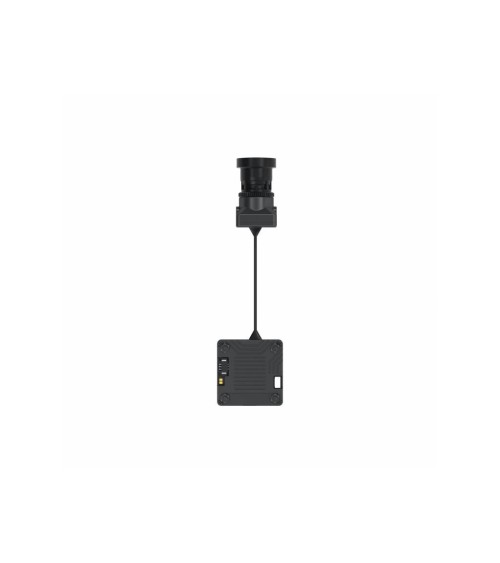

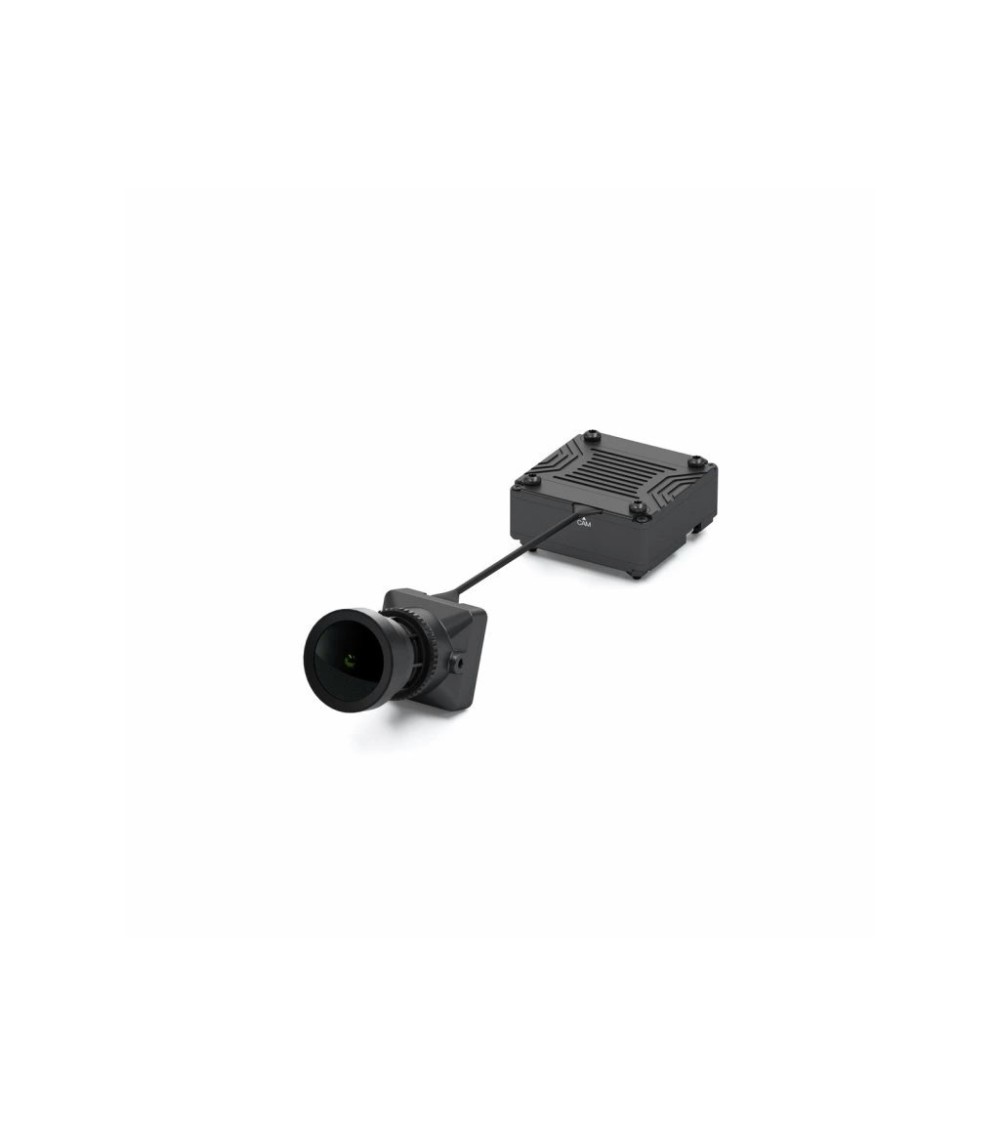

Analog Infrared FPV Camera CaddxFPV INFRA IRC-210SL 1500TVL

The Caddx INFRA IRC-210SL 1500TVL is an analog infrared FPV camera built for flying and observation in dark or low-light environments. Its black-and-white sensor operates at 0 Lux, meaning it can produce a usable image with no visible light present. With dual CVBS and MIPI-CSI output interfaces, it is compatible with both traditional analog FPV systems and the Walksnail Avatar digital system.

Infrared Imaging at 0 Lux

The black-and-white sensor is capable of capturing an image in complete darkness, making the IRC-210SL suitable for night flying, indoor operations and surveillance tasks where visible light is unavailable.

1500TVL Resolution & Wide Field of View

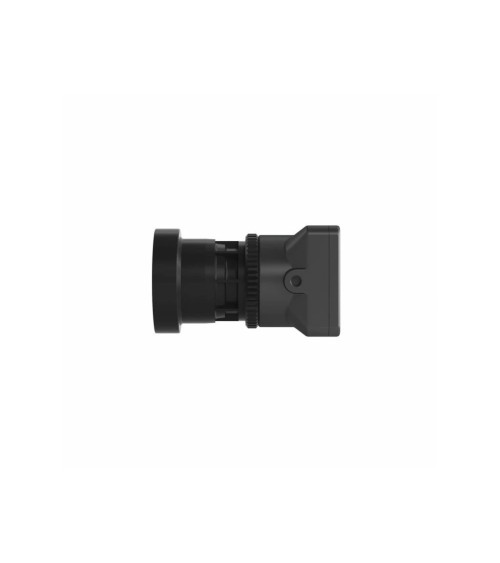

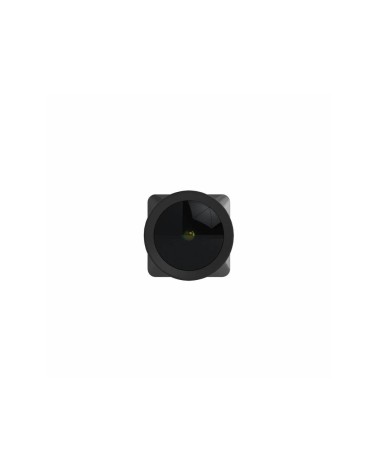

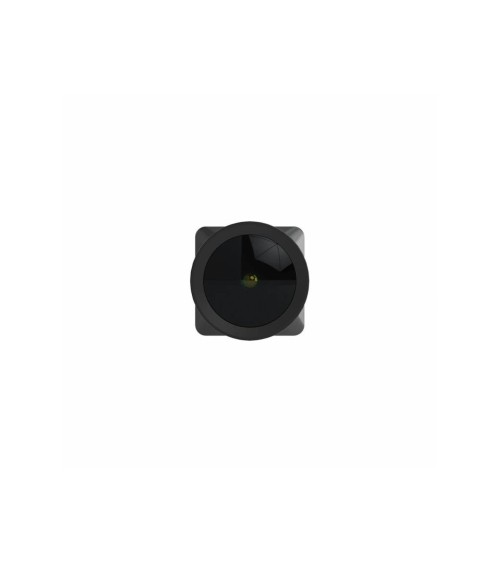

The camera delivers 1500TVL resolution at 50/60fps through a 2.8mm M16/F1.0 lens, providing a 120° field of view that gives the pilot a broad perspective of the surrounding environment.

Super WDR

Super WDR helps preserve visible detail across both bright and dark areas within the same frame, reducing overexposure and loss of shadow detail in mixed-lighting conditions.

Low-Latency Output

An average latency of 20ms ensures the video feed remains responsive during real-time FPV operation, supporting precise piloting in time-sensitive situations.

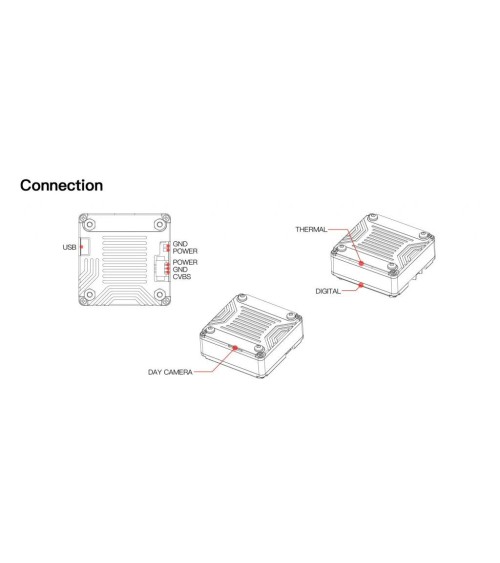

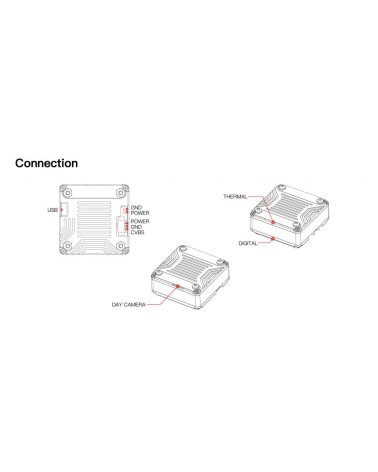

Connection & Power

The IRC-210SL accepts a wide 5–20V power input and consumes less than 1.5W, making it compatible with a broad range of FPV builds. It outputs via CVBS for analog video systems and via MIPI-CSI for the Walksnail Avatar platform.

Specifications

• Model: CaddxFPV INFRA IRC-210SL
• Camera type: Analog infrared FPV camera
• Image sensor: Black & White
• Resolution: 1500TVL
• Minimum illumination: 0 Lux
• Lens: M16 / F1.0 / 2.8mm
• Field of view: 120°
• TV system: PAL
• Frame rate: 50/60fps
• WDR: Super WDR
• Analog interface: CVBS
• HD interface: MIPI-CSI (Walksnail Avatar)
• Average latency: 20ms
• Power input: 5–20V
• Power consumption: <1.5W

Package Includes

• 1 × CaddxFPV INFRA IRC-210SL 1500TVL Analog Infrared FPV Camera
