RunCam Phoenix 2 SE V2 1000TVL is an analog FPV camera with a 1/2" CMOS sensor, 160° FOV, Global WDR, PAL/NTSC, 4:3/16:9, DC 5–36V input, in a compact 19×19×22mm ABS housing.

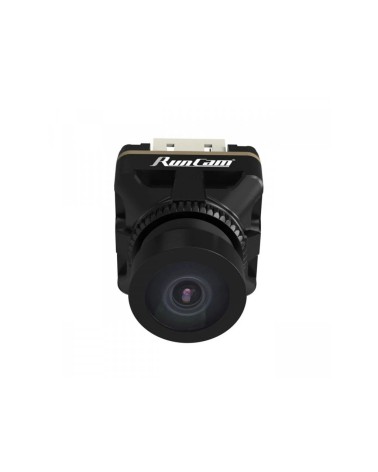

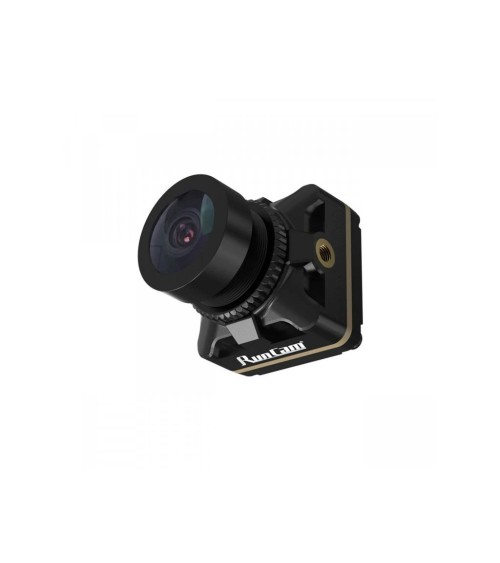

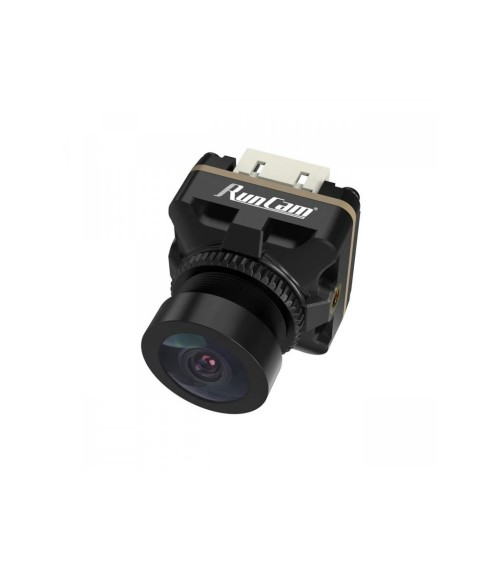

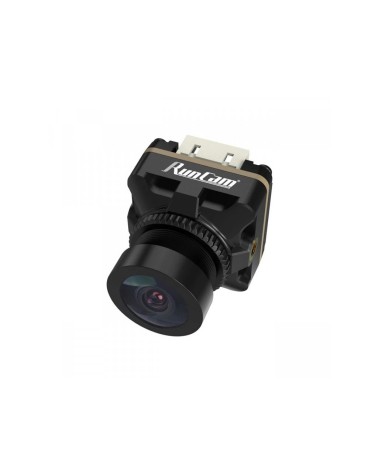

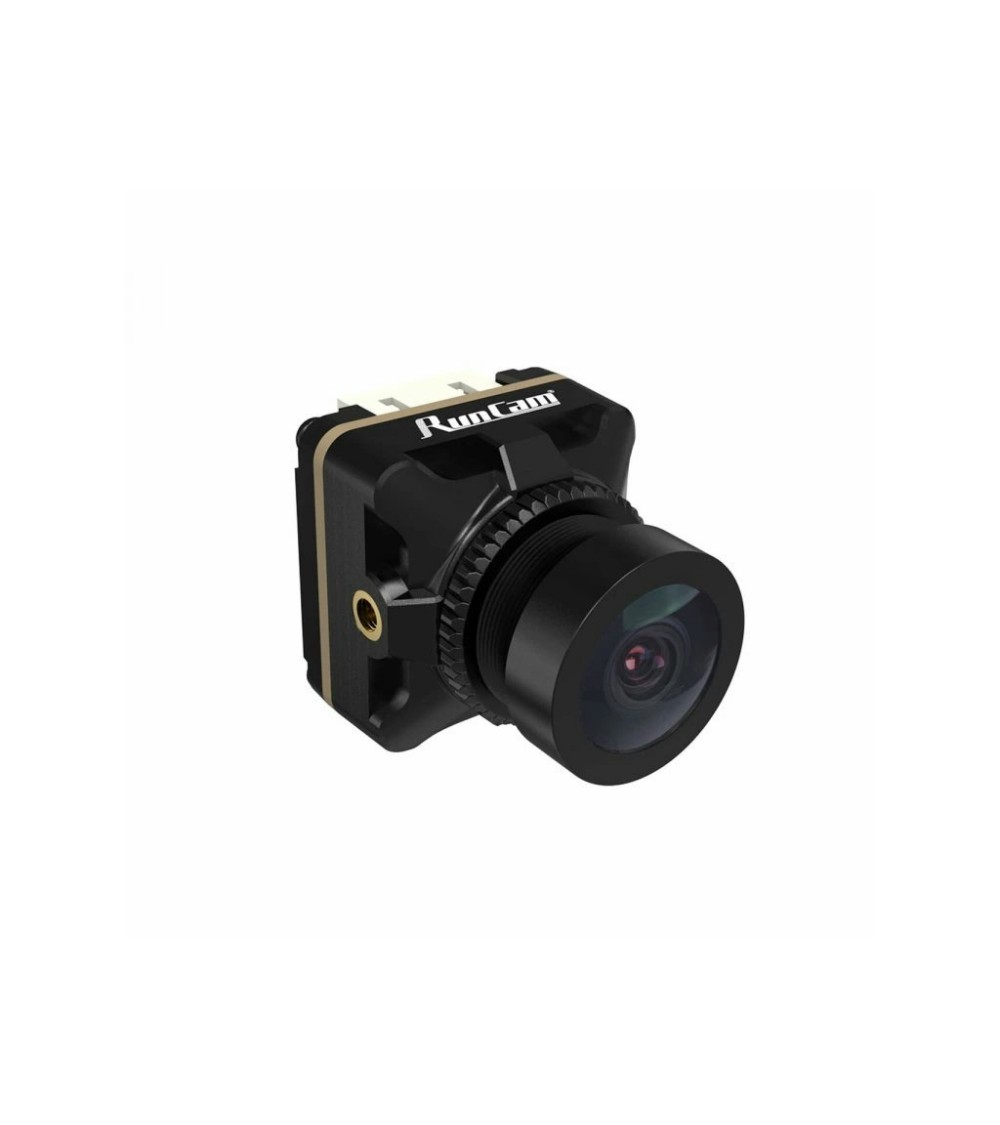

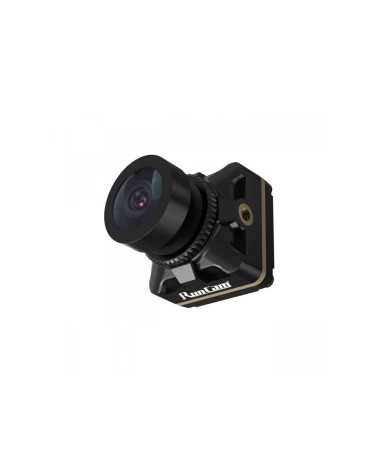

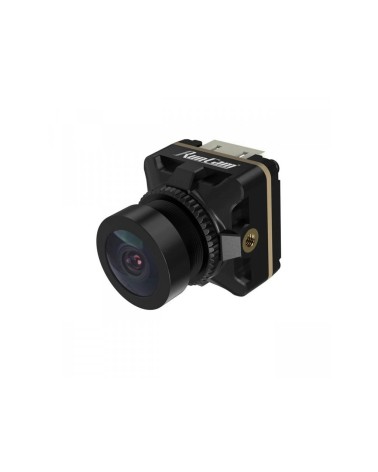

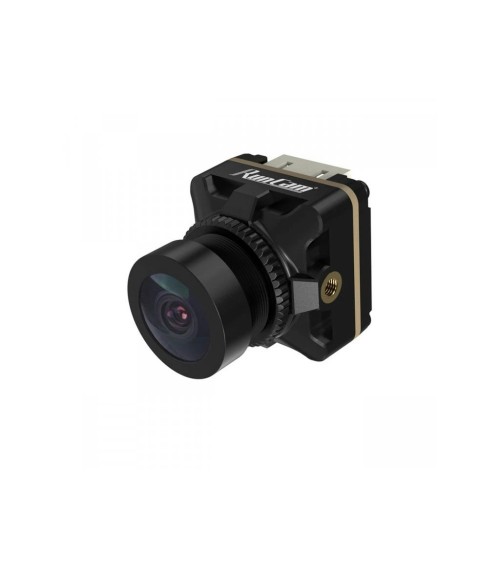

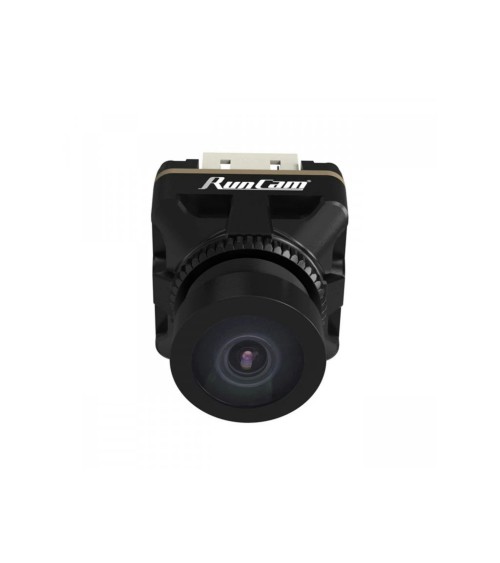

FPV Camera Phoenix 2 SE V2 1000TVL
€26.21
On order: Delivery 4-5 working days.
RunCam Phoenix 2 SE V2 1000TVL is an analog FPV camera with a 1/2" CMOS sensor, 160° FOV, Global WDR, PAL/NTSC, 4:3/16:9, DC 5–36V input, in a compact 19×19×22mm ABS housing.
The RunCam Phoenix 2 SE V2 1000TVL is an analog FPV camera designed for freestyle drone builds. Built around a 1/2" CMOS sensor with 1000TVL horizontal resolution and Global WDR, it fits into a compact 19mm × 19mm × 22mm ABS housing and supports a wide DC 5–36V input range for compatibility with various FPV power systems.
Image Quality
The 1/2" CMOS sensor delivers 1000TVL horizontal resolution. Global WDR helps retain visible detail in scenes with mixed bright and dark areas, reducing overexposure and shadow loss during flight.
Wide Field of View
The lens provides a diagonal field of view of 160°, a horizontal field of view of 124° and a vertical field of view of 95° at F2.4, giving the pilot a broad view of the surrounding flight area.
Flexible Video Settings
The camera supports switchable PAL/NTSC signal systems and 4:3/16:9 screen formats. Mirror and flip functions are available to accommodate different mounting orientations, and settings are adjusted via cable control.
Day & Night Operation
Four Day/Night modes — Color, B/W, EXT and Auto — allow the camera to adapt to varying lighting conditions. The fully covered, dustproof rear housing protects internal electronics during installation and use.
Power & Integration
A wide DC 5–36V input range with a current draw of 200mA at 5V or 80mA at 12V makes the camera straightforward to integrate into a broad range of FPV builds.
Specifications
- Product name: RunCam Phoenix 2 SE V2
- Video system: Analog
- Image sensor: 1/2" CMOS
- Horizontal resolution: 1000TVL
- Field of view: D: 160° / H: 124° / V: 95° @ F2.4
- Screen format: 4:3 / 16:9 switchable
- Signal system: PAL / NTSC switchable
- Mirror/Flip: Available
- Shutter: Rolling Shutter
- Sensitivity: 10650mV/Lux-sec
- WDR: Global WDR
- Day/Night modes: Color / B/W / EXT / Auto
- Menu control: Cable Control
- Power supply: DC 5–36V
- Current: 200mA @ 5V / 80mA @ 12V
- Housing material: ABS
- Dimensions: 19mm × 19mm × 22mm
- Net weight: 8.6g
Package Includes
- 1 × RunCam Phoenix 2 SE V2 FPV Camera
PHOENIX2-SE-V2
