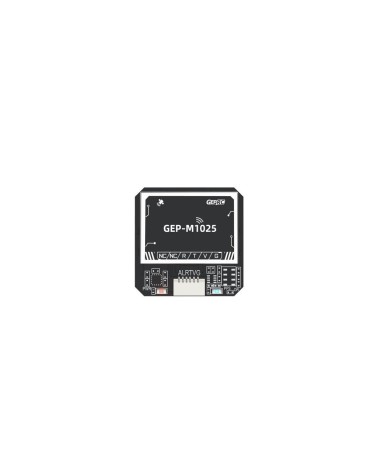

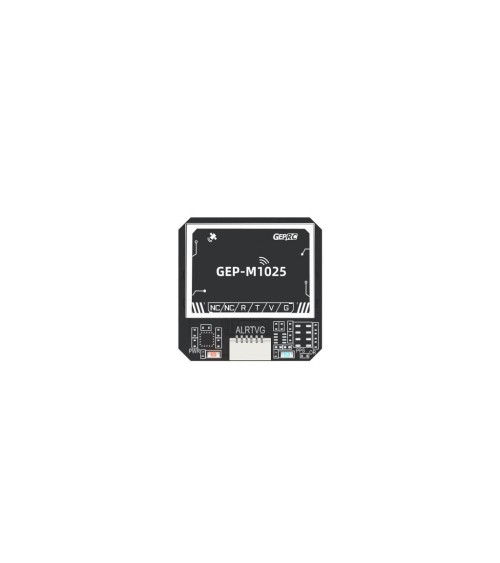

GPS Module GEPRC GEP-M1025 Series

The GEPRC GEP-M1025 Series GPS Module is a compact positioning module built around the u-blox M10 GNSS solution, designed for FPV drones, multirotors and fixed-wing models. It supports multiple satellite systems simultaneously and is available in several sensor configurations to suit different flight controller setups. Confirm the required variant before purchase.

Multi-System Satellite Positioning

The module supports combined GPS, BDS, Galileo, QZSS and SBAS positioning and can search up to 32 satellites concurrently, improving fix reliability and accuracy across varied environments.

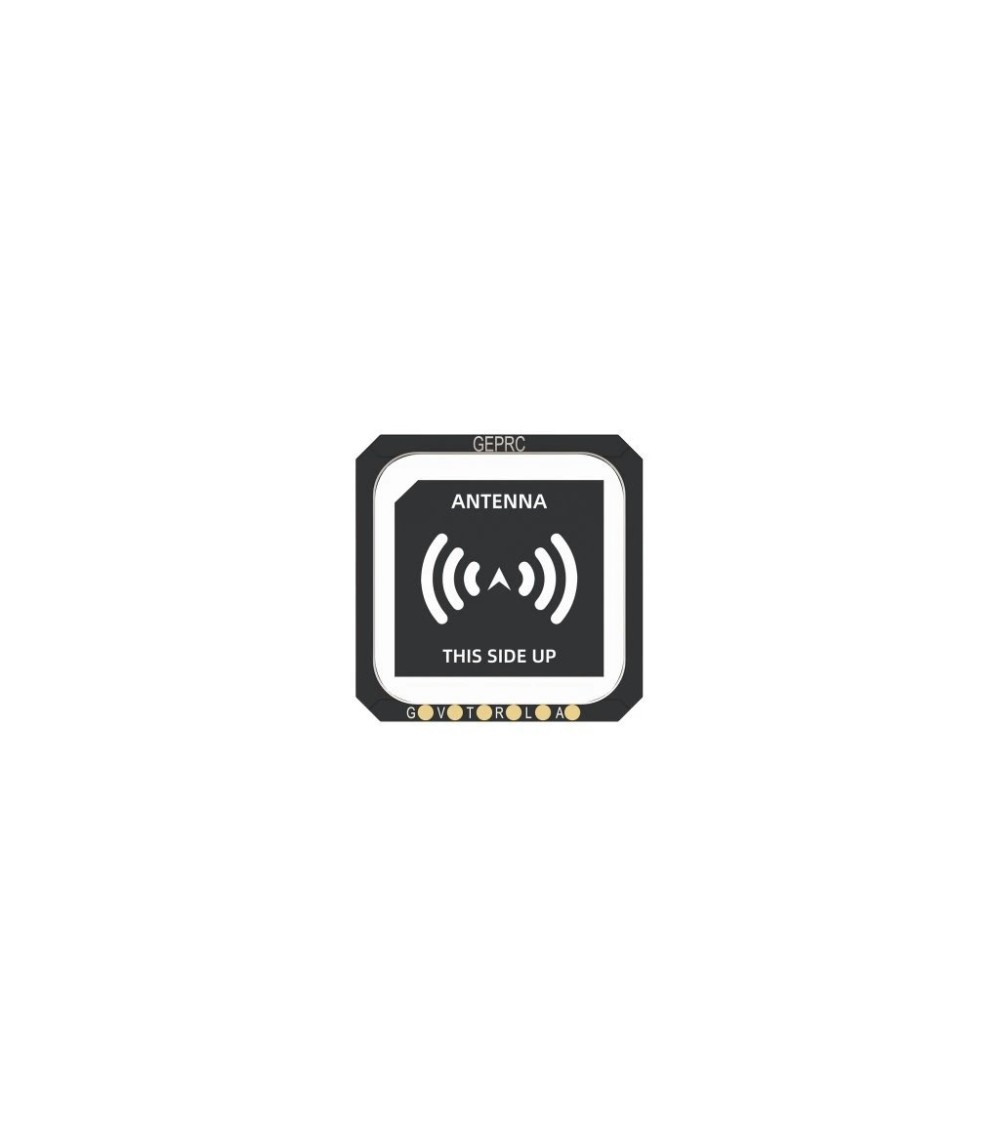

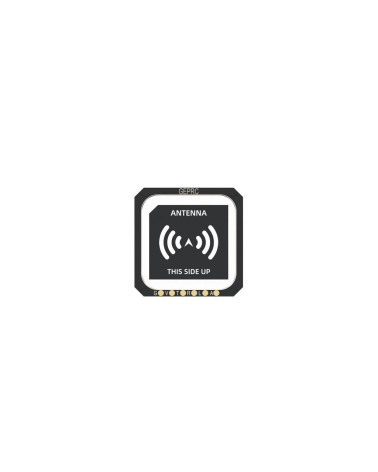

25 × 25mm Ceramic Antenna

A 25 × 25mm ceramic antenna provides the receiving surface for satellite signals. An integrated indicator light makes it straightforward to check the module's operating status at a glance.

Fast Hot Start

Integrated Flash memory retains configuration parameters between power cycles, while the built-in Farad capacitor enables a faster hot start once the module has previously acquired satellite data, reducing the time to first fix in the field.

Available Sensor Configurations

Depending on the selected model, the GEP-M1025 series is available with an optional QMC5883L or IST8310 magnetometer and an optional DPS310, DPS368 or MS5611 barometer. Available models include: GEP-M1025 GPS, GEP-M1025Q GPS, GEP-M1025-DQ GPS, GEP-M1025-MQ GPS, GEP-M1025I GPS, GEP-M1025-DI GPS and GEP-M1025-MI GPS.

Specifications

• Product type: GPS module
• Brand: GEPRC
• Series: GEP-M1025
• GNSS solution: u-blox M10
• Supported positioning systems: GPS, BDS, Galileo, QZSS, SBAS
• Maximum searched satellites: 32
• Antenna size: 25 × 25mm ceramic
• Flash memory: Integrated
• Farad capacitor: Integrated
• Indicator light: Integrated
• Optional magnetometers: QMC5883L, IST8310
• Optional barometers: DPS310, DPS368, MS5611

Package Includes

• 1 × GEPRC GEP-M1025 Series GPS Module
• 1 × Terminal wire
• 1 × GPS module instruction manual
• 1 × GEPRC sticker
• 1 × Heat-shrink tube
