The VIFLY ToothStor 2S is a 4-port balance charger, discharger and storage charger for 2S LiPo and LiHV batteries. Four independent channels allow different batteries to be charged separately, with up to 1.5A charging current per port. It supports JST-XH2.54 and BT3.0 connectors and can be powered via USB-C PD3.0, XT60 or DC.
Charger VIFLY ToothStor 2S
€29.83
The VIFLY ToothStor 2S is a 4-port balance charger, discharger and storage charger for 2S LiPo and LiHV batteries. Four independent channels allow different batteries to be charged separately, with up to 1.5A charging current per port. It supports JST-XH2.54 and BT3.0 connectors and can be powered via USB-C PD3.0, XT60 or DC.

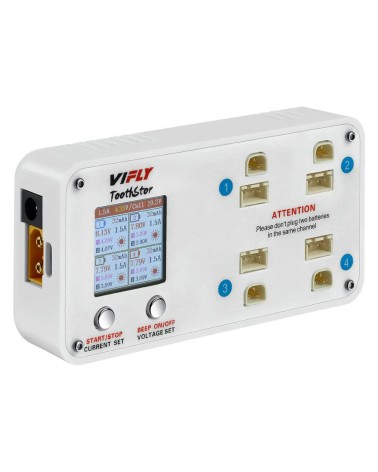

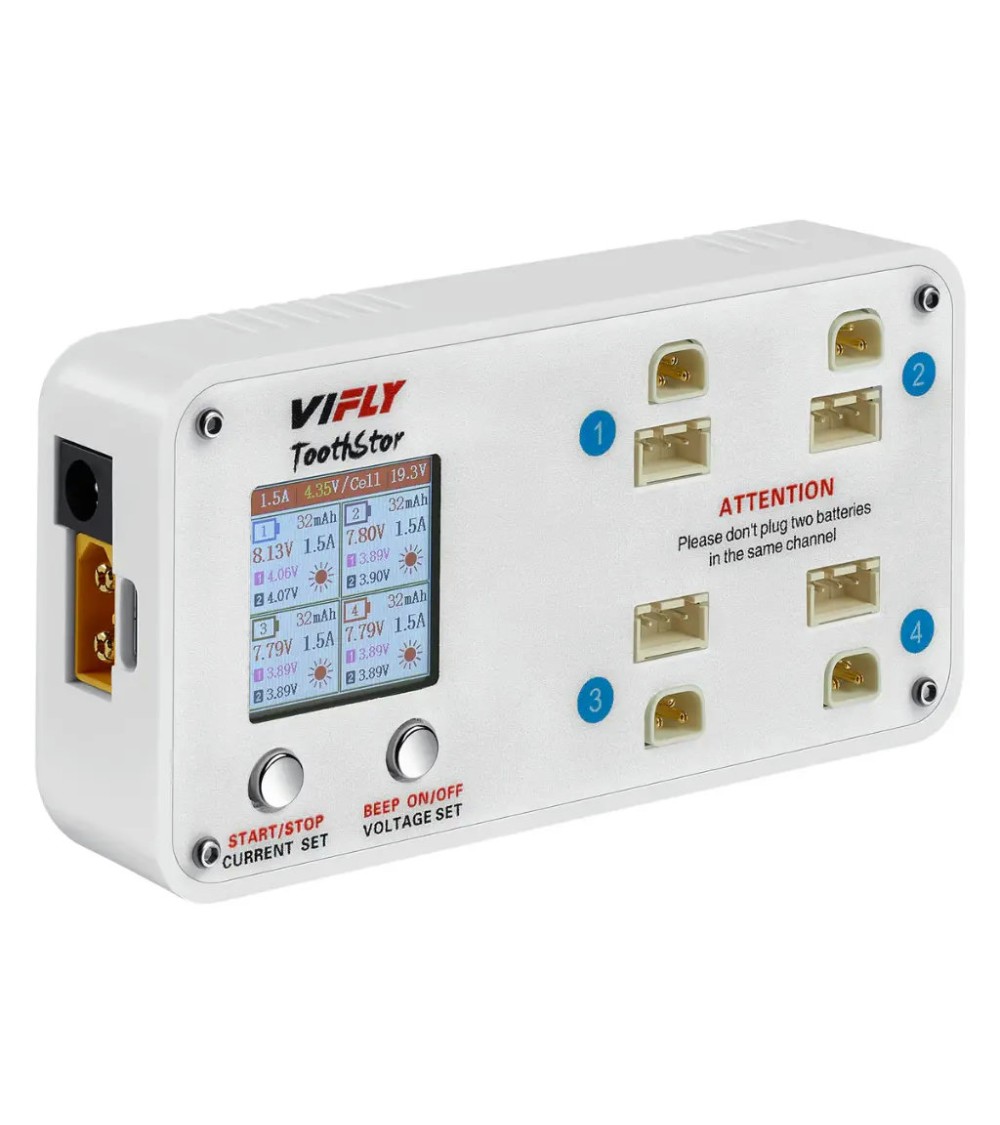

The VIFLY ToothStor 2S is a compact 4-port balance charger designed specifically for 2S LiPo and LiHV batteries. Each of its four channels operates independently, allowing batteries with different capacities and charge levels to be handled at the same time.
4 Independent Charging Ports
Four independent channels allow up to four 2S batteries to be charged simultaneously without requiring them to have the same voltage or capacity.
Storage Charging & Discharging
The ToothStor can charge or discharge batteries to the selected target voltage. Storage settings of 3.80V/cell for LiPo and 3.85V/cell for LiHV are available for batteries that will not be used for an extended period.

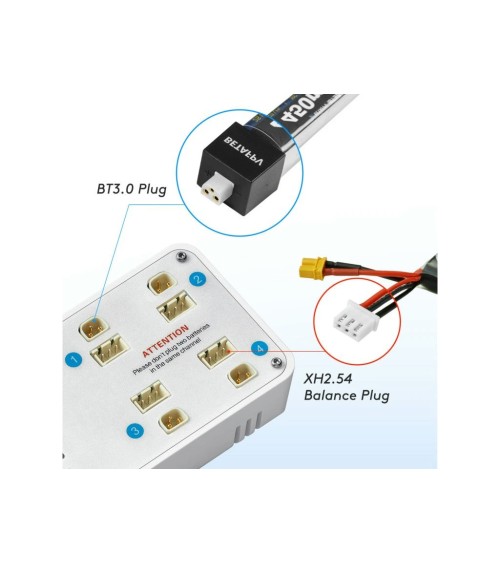

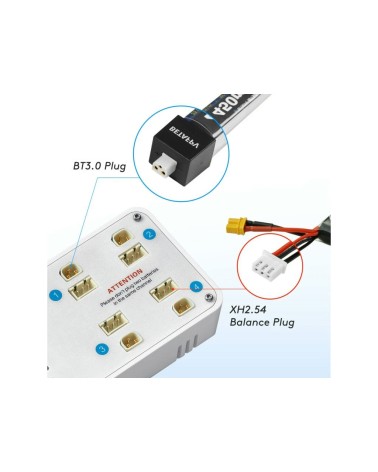

Charge Through the Balance Connector
Compatible batteries can be charged directly through their JST-XH2.54 or BT3.0 balance connector, eliminating the need to connect the main XT30 or similar power lead.
Up to 1.5A Per Port
Maximum charging current is 1.5A per channel, while the maximum discharge current is 0.2A per channel. Balance current is rated at 0.2A.

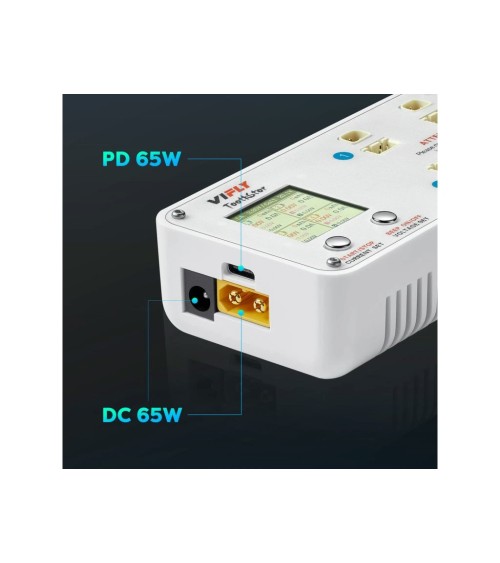

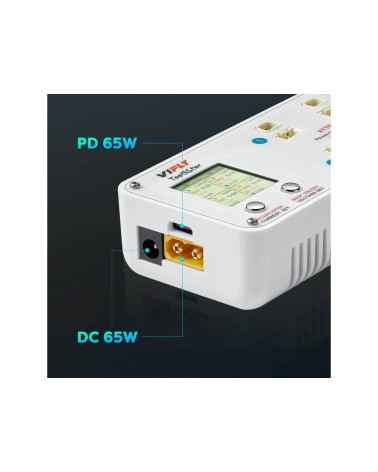

Multiple Power Inputs
The charger supports USB-C PD3.0, XT60 and DC 5.5 × 2.1 mm power inputs. Input voltage is 10–26V, with a minimum input power requirement of 65W.

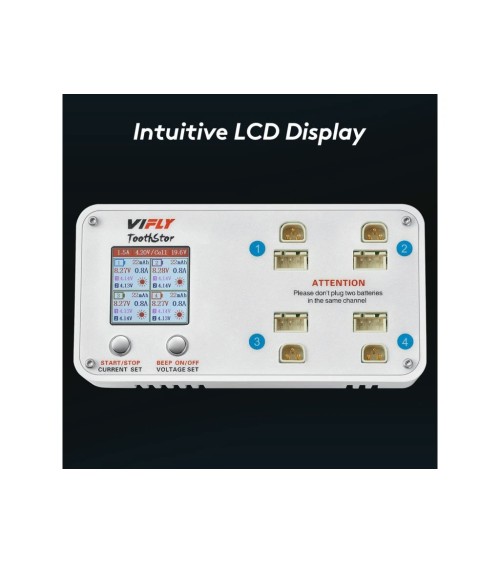

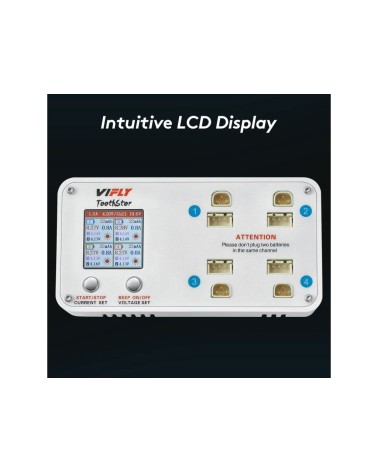

LCD Display & Memory Function
The built-in LCD screen clearly displays charging information. The memory function remembers previous settings, reducing the need to configure charging current each time the device is powered on.

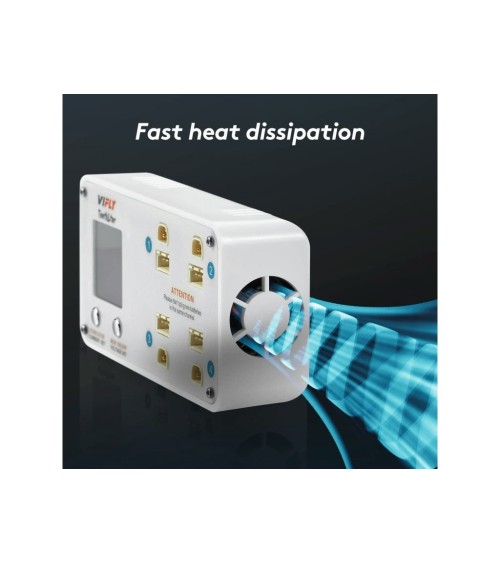

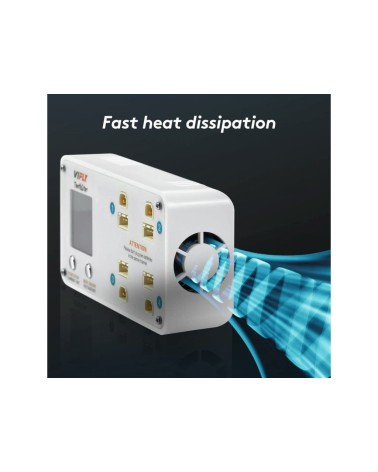

Cooling & Buzzer Notification
An integrated fan and heat sink help dissipate heat during operation. The built-in buzzer provides an audible notification when a charging cycle is complete and can be manually disabled.
Specifications
Battery type: 2S LiPo / LiHV
Charging ports: 4 independent channels
Battery connectors: JST-XH2.54 3-pin & BT3.0
Maximum charging current: 1.5A/port
Maximum discharge current: 0.2A/port
Balance current: 0.2A
Storage voltage: 3.80V/cell / 3.85V/cell
Input connectors: XT60, DC 5.5 × 2.1 mm, USB-C PD3.0
Input voltage: 10–26V
Minimum input power: 65W
Dimensions: 109 × 56 × 30 mm
Weight: 142 g
BT3.0
