The VIFLY WhoopStor 3 Black is a 6-port charger, discharger and storage charger for 1S LiPo and LiHV batteries. Six independent channels allow batteries with different capacities and charge levels to be handled separately. It supports PH2.0 and BT2.0 connectors, adjustable charging current from 0.3A to 1.3A per port, and power input via USB-C PD, XT60 or DC.
Charger VIFLY WhoopStor 3 Black
€31.45
On Order: Delivery 1-3 weeks
The VIFLY WhoopStor 3 Black is a 6-port charger, discharger and storage charger for 1S LiPo and LiHV batteries. Six independent channels allow batteries with different capacities and charge levels to be handled separately. It supports PH2.0 and BT2.0 connectors, adjustable charging current from 0.3A to 1.3A per port, and power input via USB-C PD, XT60 or DC.
The VIFLY WhoopStor 3 combines charging, discharging and storage functions in one compact charger designed for 1S LiPo and LiHV batteries. Simply select the required target voltage and the charger automatically charges or discharges the connected battery to the selected level.

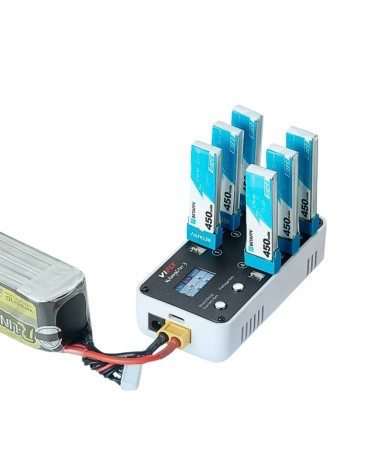

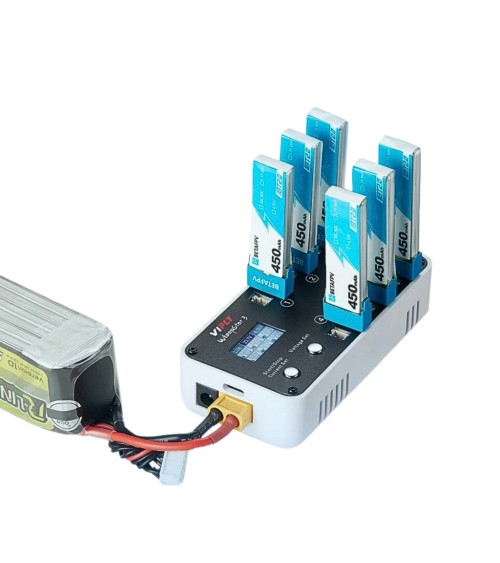

6 Independent Charging Ports
Six independent channels allow you to charge multiple batteries at the same time without requiring them to have the same capacity or starting voltage. Finished batteries can also be removed and replaced while the other ports continue charging.
Storage Charging & Discharging

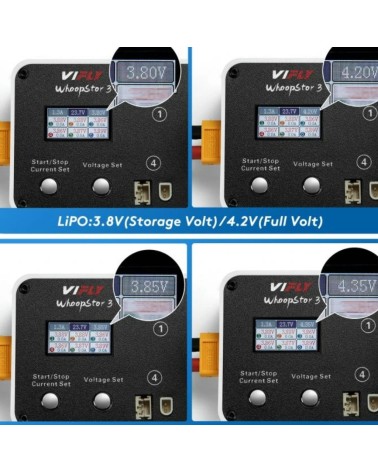

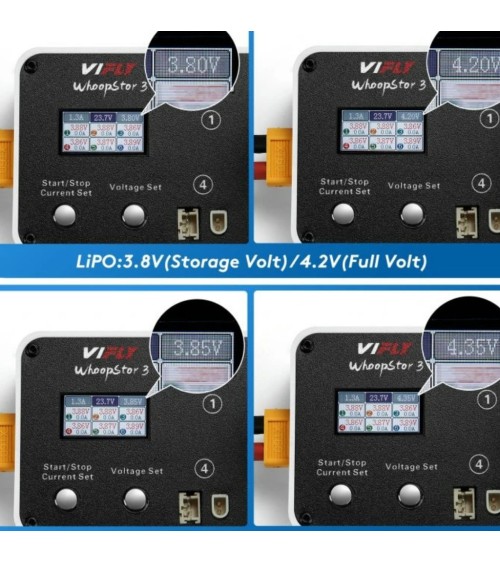

The WhoopStor 3 can automatically bring batteries to their appropriate storage voltage: 3.80V for LiPo or 3.85V for LiHV.
Adjustable Charging Current
Charging current can be adjusted from 0.3A to 1.3A per port, allowing the charger to be configured for different battery capacities.
PH2.0 & BT2.0 Support
The charger supports both PH2.0 and BT2.0 battery connectors, making it suitable for a wide range of 1S FPV batteries.

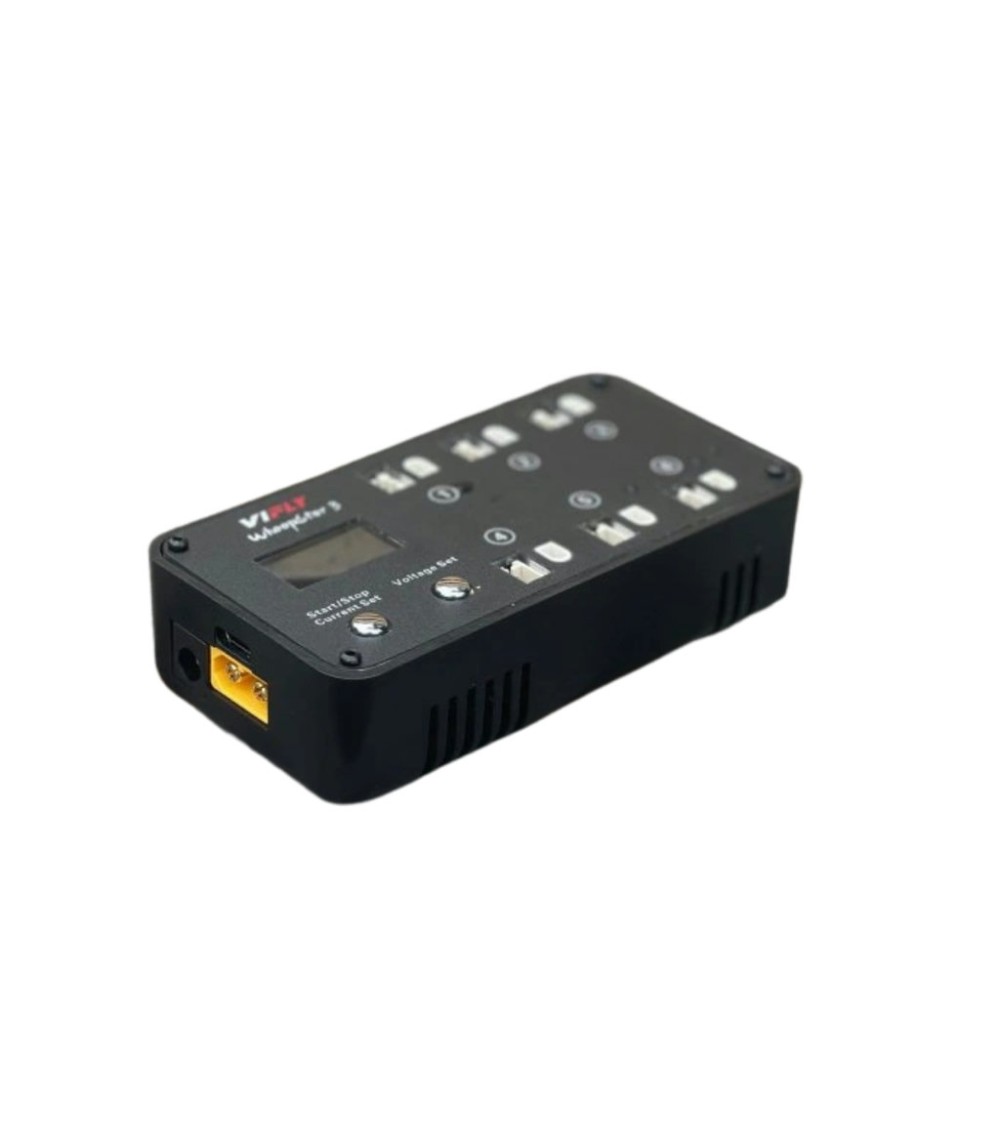

Multiple Power Input Options
Power can be supplied through XT60, DC or USB-C PD3.0.
XT60 / DC input: 6–26V
USB-C input: 9–20V
Minimum input power: 40W
USB-C uses the PD fast-charging protocol and does not support standard 5V USB power.

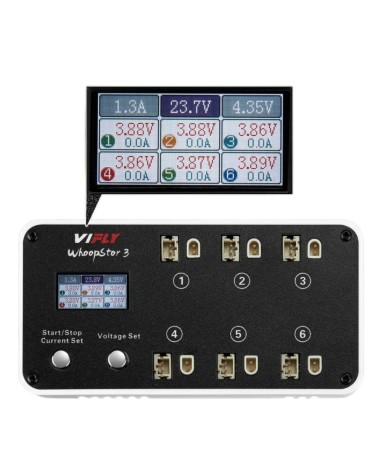

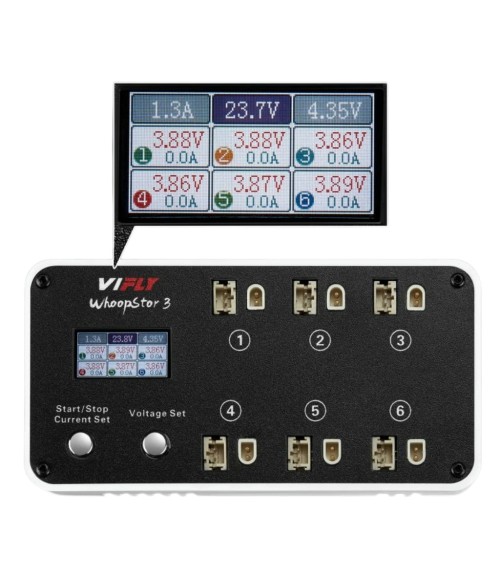

LCD Display & Memory Function
The built-in LCD screen clearly displays charging information. The memory function remembers the previous settings, so the charging current does not need to be configured again every time the device is powered on.
Buzzer Notification
An audible buzzer indicates when a charging cycle is complete. The buzzer can also be manually disabled.
Specifications
Dimensions: 108 × 55 × 30 mm
Weight: 140 g
Charging current: 0.3–1.3A per port
Maximum charging current: 1.3A per port
Maximum discharge power: 1.1W per port
Battery connectors: PH2.0 & BT2.0
Battery types: LiPo 4.20V (±0.05V) / LiHV 4.35V (±0.05V)
Storage voltage: 3.80V (±0.05V) / 3.85V (±0.05V)
Input connectors: XT60, DC 5.5 × 2.1 mm, USB-C PD3.0
Color: Black
Package Includes
1 × VIFLY WhoopStor 3 charger/discharger
