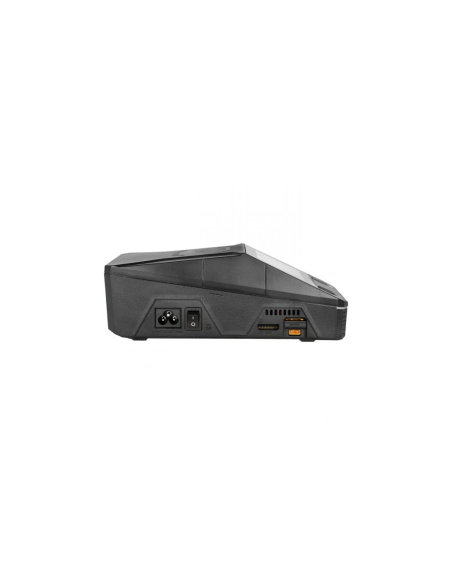

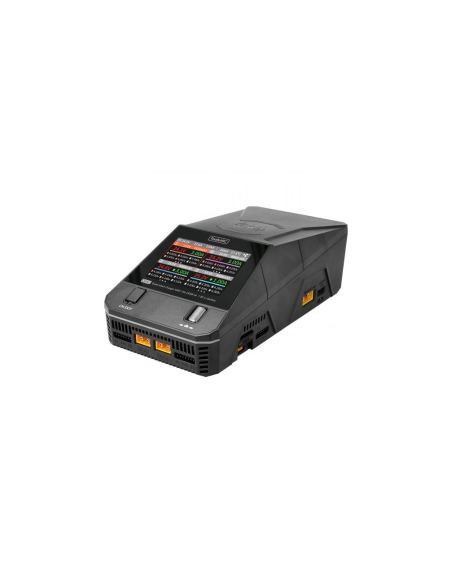

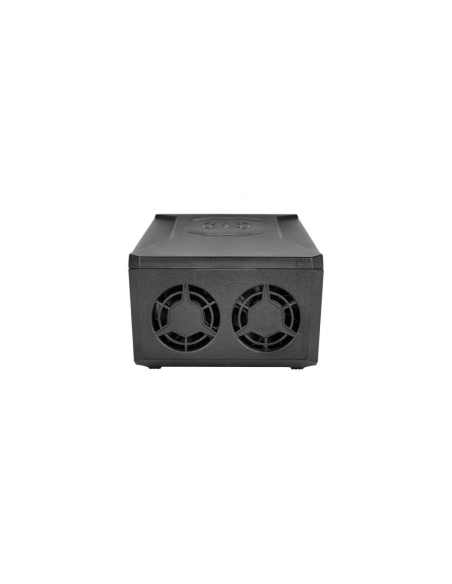

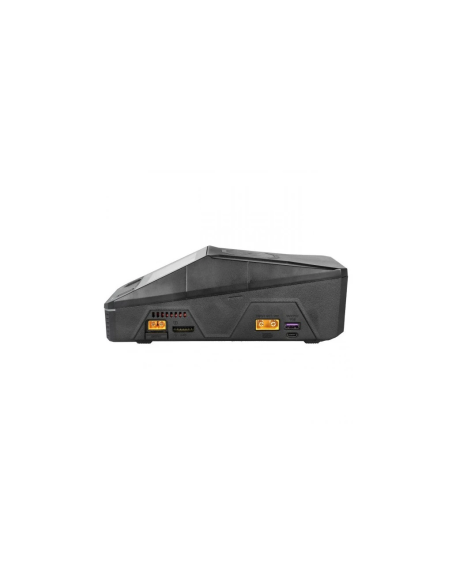

Charger ToolkitRC Q6AC 4-channel AC/DC charger

The ToolkitRC Q6AC 4-channel AC/DC charger is a high-performance professional charging solution designed for FPV drones, RC systems, and demanding technical environments. With four independent charging channels and up to 1000 W total output, the Q6AC is built for users who require speed, precision, and absolute reliability.

The charger supports both AC and DC input and is compatible with a wide range of battery types, including LiPo, Li-ion, LiFe, NiMH, and Pb. In DC mode, each channel can deliver up to 250 W, while the synchronous CH2+CH3 mode enables up to 500 W for high-capacity battery packs.

High-current balancing (up to 800 mA), a large 3.5-inch IPS display, and integrated USB-A and USB-C fast-charging outputs make the Q6AC a versatile tool for workshop and field operations alike. Advanced fast-charge protocol support allows the charger to function as a powerful auxiliary power source.

Technical specifications

• Input voltage: AC 100–240 V (max 400 W, 5 A) / DC 7–30 V (max 50 A)
• Supported batteries: LiPo, LiHV, LiFe, Li-ion, LTO (1–6S); NiMH (1–16S); Pb (1–10S)
• Balance current: up to 800 mA @ 4.2 V
• Charging power:
  • 250 W × 4 (DC input)
  • 200 W × 2 (AC input)
  • 100 W × 4 (AC input)
  • 500 W synchronous mode (CH2 + CH3)
• Discharge power: up to 250 W (Recycle mode) / 12 W (Normal mode)
• USB outputs: USB-A up to 30 W, USB-C up to 65 W (PD, QC, PPS, AFC, FCP, SCP, PE, SFCP)
• Display: 3.5” IPS LCD, 480 × 320 resolution
• Dimensions: 220 × 113 × 82 mm
• Weight: 1120 g

Key features

• Four independent high-power charging channels
• Up to 1000 W total output in DC mode
• Synchronous charging for high-capacity batteries
• High-precision balancing and voltage control
• Integrated USB-A and USB-C fast-charging outputs
• Large, clear IPS display

ToolkitRC Q6AC – maximum power, total control, professional reliability.
